SilverStone Triton 750Rx 750W Gold PCIe 5.0 ATX 3.1 PSU

SilverStone Triton 750Rx 750W Gold PCIe 5.0 ATX 3.1 PSU

$155.00
$155.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Triton 750Rx
Cybenetics Gold 750W PCIe 5 Fixed Cable ATX Power Supply
  • Supports 12V-2x6 PCIe connector with ATX 3.1 and PCIe Gen 5 standard
  • Latest PCIe Gen 5 standard to support up to 2X power excursion

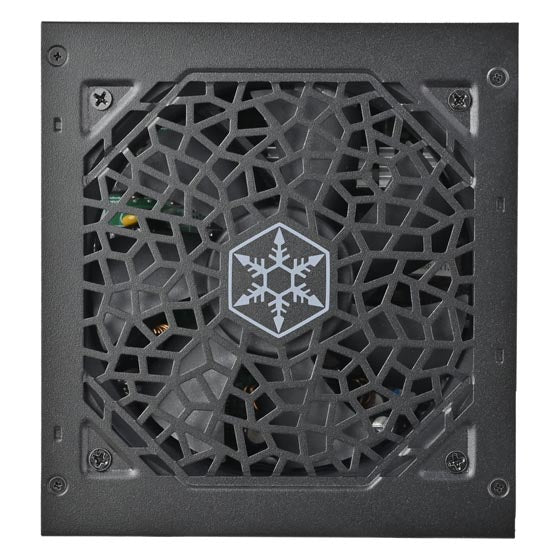

  • Silent running 120mm ICB (Inside Cavity Bearing) cooling fan
  • Black embossed cable design
  • Main Japanese electrolytic capacitors
  • High efficiency with Cybenetics Gold certification
  • 24/7 continuous power output with 40℃ operating temperature
  • Compact design with a 140mm depth for easy integration
Product Specifications
Product No.
SST-TR750R-GF
Model (safety certification)
SST-AX0750FCGD-A
Color
Black (lead-free paint)
Max. DC Output
750W
Power density
415.3W/L
Load Range
Output +3.3V +5V +12V1 +5VSB -12V
Max.(Amps) 18A 18A 62.5A 3.0A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±5% ±5% ±5% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV
Combined +3.3V & +5V
100W
Combined +12V
750W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
87% ~ 89% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over power protection

Over current protection

Over voltage protection

Short circuit protection

Under voltage protection

Over Temperature protection
Connectors
1 x 24 / 20-Pin motherboard connector

2 x 8 / 4-Pin EPS / ATX 12V connector

1 x 12+4-Pin 12V-2x6 connector

3 x 8 / 6-Pin PCIe connector

6 x SATA connector

2 x 4-Pin Peripheral connector
Cooling System
Single 120mm ICB bearing fan
Noise Level
18 dBA min.
Certification
Cybenetics Gold
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 140mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight
1.56 kg
