SilverStone

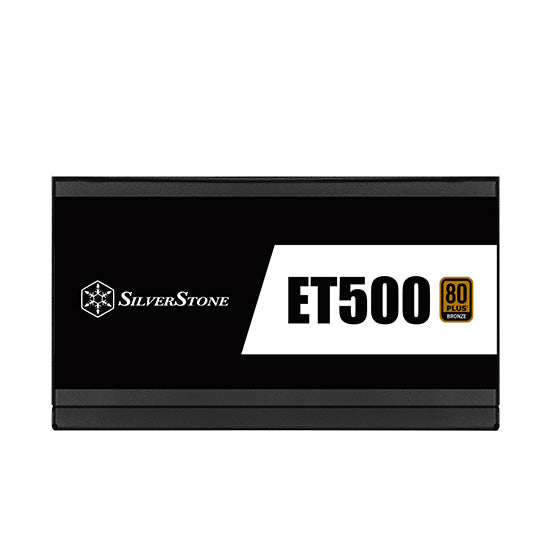

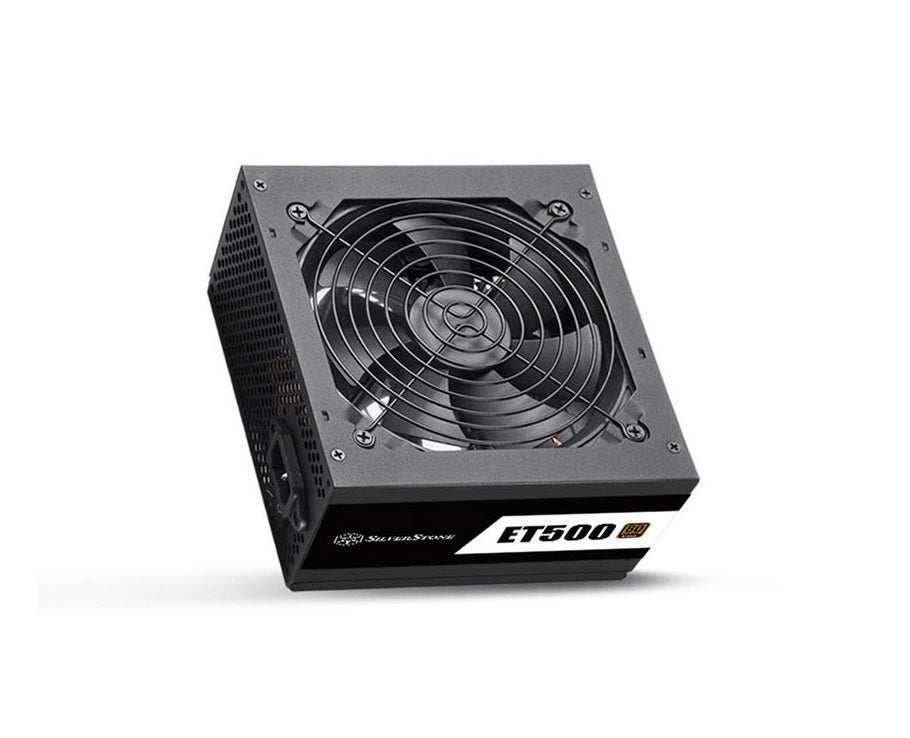

SilverStone ET500 500W 80Plus Bronze ATX PSU
SilverStone ET500 500W 80Plus Bronze ATX PSU
Regular price
$75.00
Regular price
Sale price
$75.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
3 Year Limited Warranty
High efficiency with 80 PLUS Bronze certification
24/7 continuous power output with 40℃ operating temperature
Class-leading single +12V rail
Multiple protection circuitry
Silent running 120mm fan with 18 dBA
PCI-E 8pin and PCI-E 6pin connectors support
Active PFC
Product No.
SST-ET500
Color
Black（Lead-Free Paint）
Max. DC Output
500W
Power density
277W per liter
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 15A | 15A | 38A | 2.5A | 0.3A |
| Peak (Amps) | / | / | / | / | / |
| Min.(Amps) | 2A | 2A | 6.64A | 0.4A | 0.05A |
| Range (%) | ±5% | ±5% | ±5% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 50mV | 50mV | 120mV | 50mV | 120mV |
Combined +3.3V & +5V
100W
Combined +12V
456W
Input Voltage
100 ~ 264 Vrms
Input Frequency Range
47Hz ~ 64Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
82% ~ 85% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over power protection
Over voltage protection
Short circuit protection
Over voltage protection
Short circuit protection
Connectors
1 x 24 / 20-Pin motherboard connector（”500mm”）
1 x 8 / 4-Pin EPS / ATX 12V connector（”600mm”）
2 x 8/6-Pin PCIE connector（”500mm/100mm”）
6 x SATA connector（"500mm /100mm / 100mm" x 2）
3 x 4-Pin Peripheral connector（”500mm / 100mm / 100mm”）
1 x 8 / 4-Pin EPS / ATX 12V connector（”600mm”）
2 x 8/6-Pin PCIE connector（”500mm/100mm”）
6 x SATA connector（"500mm /100mm / 100mm" x 2）
3 x 4-Pin Peripheral connector（”500mm / 100mm / 100mm”）
Cooling System
Single 120mm silent fan
Noise Level
18dBA minimum
Certification
80 PLUS Bronze
Form factor
ATX
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
Weight
1.44 Kg
