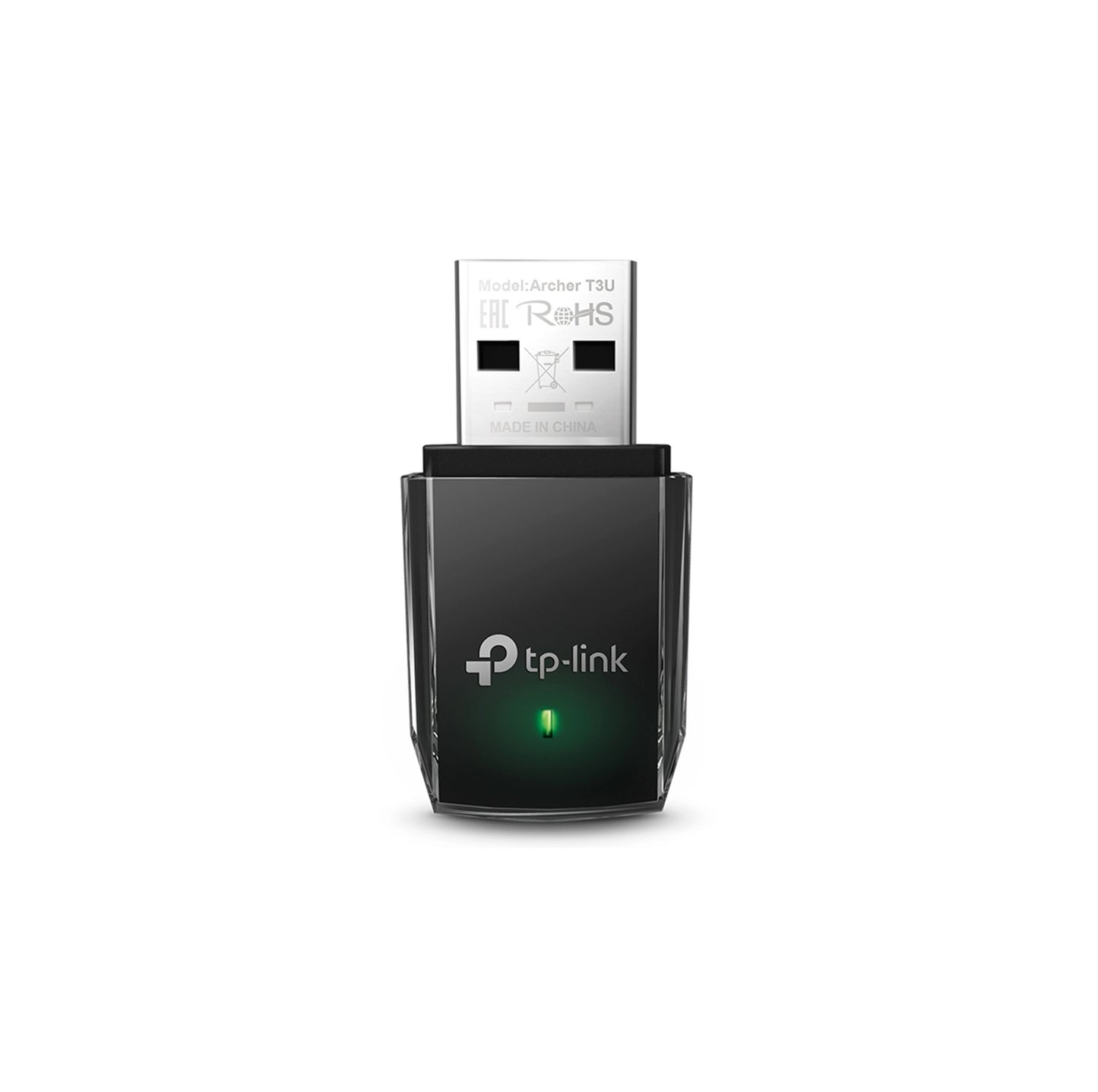

TP-Link Archer T3U AC1300 Wireless Dual Band USB Adapter
TP-Link Archer T3U AC1300 Wireless Dual Band USB Adapter
Archer T3U
- Ultimate Wi-Fi Speed - AC1300 (400 Mpbs on 2.4GHz band and 867 Mbps on 5GHz band) wireless speed with the next generation Wi-Fi - 802.11ac
- Dual Band Wireless - 2.4GHz and 5GHz band for flexible connectivity
- Mini design -Mini-sized design for convenient portability with a reliable high performance
- Super Speed USB 3.0 Port - Up to 10x faster transfer speeds than USB 2.0
- MU-MIMO - Delivers highly efficient wireless connection
- Supported Operating System - Supports Windows 10/8.1/8/7/XP, Mac OS X
High-Speed Dual Band Adapter for Better Connections
Wireless AC technology means Archer T3U delivers connections that are up to 3x faster than with the previous Wireless N standard. High-speed Wi-Fi (up to 867Mbps over the 5GHz band and 400Mbps over the 2.4GHz band) means Archer T3U is able to support all your online activities, from HD video streaming to lag-free online gaming and web surfing.
Miniature Design - Makes It Easy to Take
Archer T3U has a smart design that is tinier than a usual USB adapter. Not only could it be inserted into any USB port, but is quite easy to carry, which is convenient for most usage scenarios.
USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 - the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer T3U ideal for HD streaming, online gaming and large file downloads.
Boosted Throughput with MU-MIMO
With MU-MIMO technology, Archer T3U can provide two simultaneous data streams, improving the throughput and efficiency of the entire network when working with a compatible MU-MIMO router.
Easy Setup
A friendly user interface on a CD for simple installation.
Advanced Security
WPA/WPA2 encryption standards ensure wireless connection's safety.
Operating System
Supports Windows, Mac OS
Specifications
Interface
USB 3.0
Dimensions ( W x D x H )
1.59 x 0.78 x 0.41in. (40.5 x 19.72 x 10.29mm)
Antenna Type
Omni Directional
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
5GHz
2.4GHz
Signal Rate
5GHz
11ac: Up to 867Mbps(dynamic)
11n: Up to 300Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
2.4GHz
11n: Up to 400Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity
5GHz:
11a 6Mbps: -91dBm
11a 54Mbps: -76dBm
11n HT20:-71dBm
11n HT40:-70dBm
11ac HT20: -68dBm
11ac HT40: -64dBm
11ac HT80: -62dBm
2.4GHz:
11b 11Mbps: -86dBm
11g 54Mbps: -73dBm
11n HT20: -71dBm
11n HT40: -70dBm
Transmit Power
<23dBm (EIRP)
Wireless Modes
Ad-Hoc / Infrastructure Mode
Wireless Security
Support 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
Certification
CE, FCC, RoHS

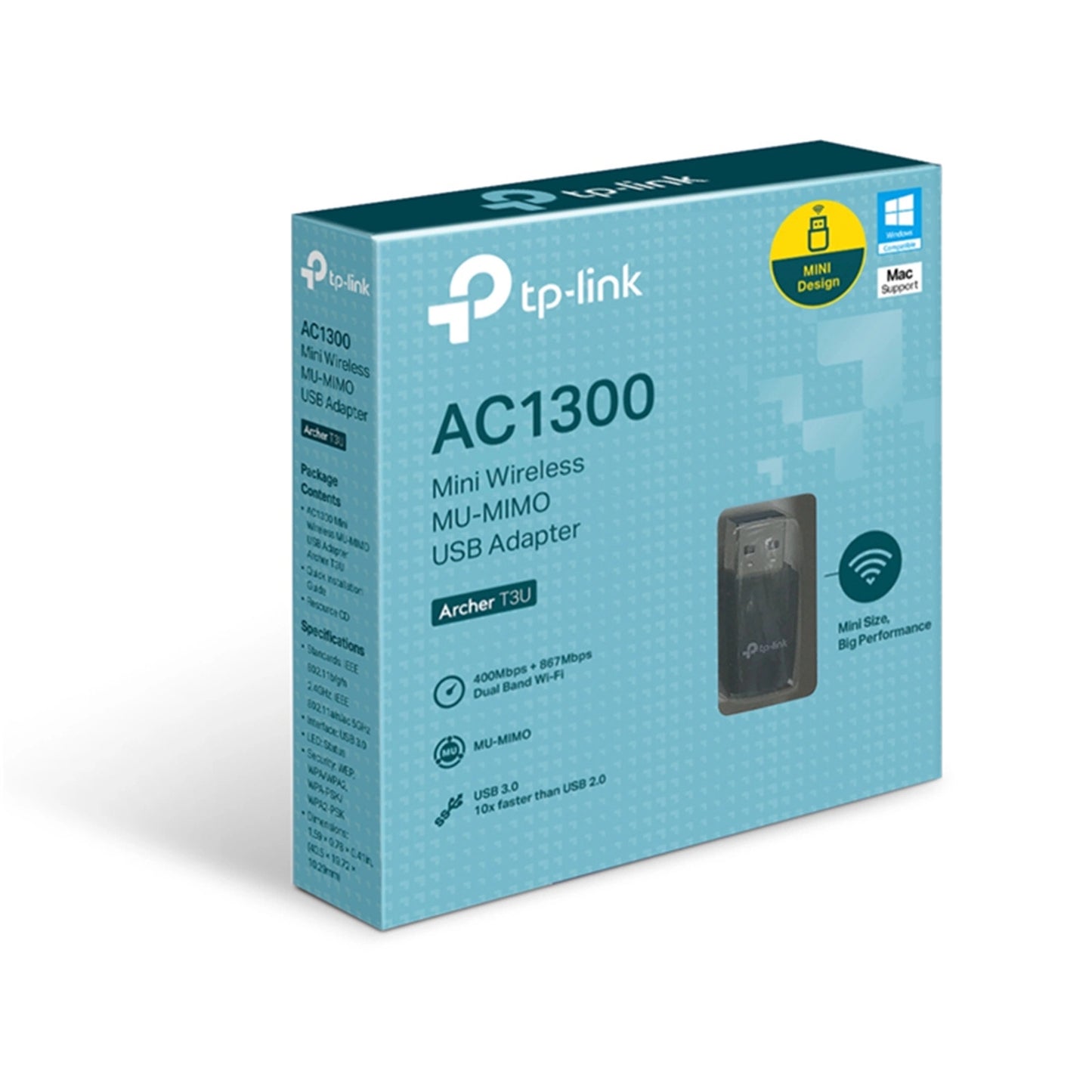

Package Contents
AC1300 Mini Wireless MU-MIMO USB Adapter Archer T3U
Quick Installation Guide
Resource CD
System Requirements
Windows10/8.1/8/7/XP, Mac OS X 10.9-10.13
Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
