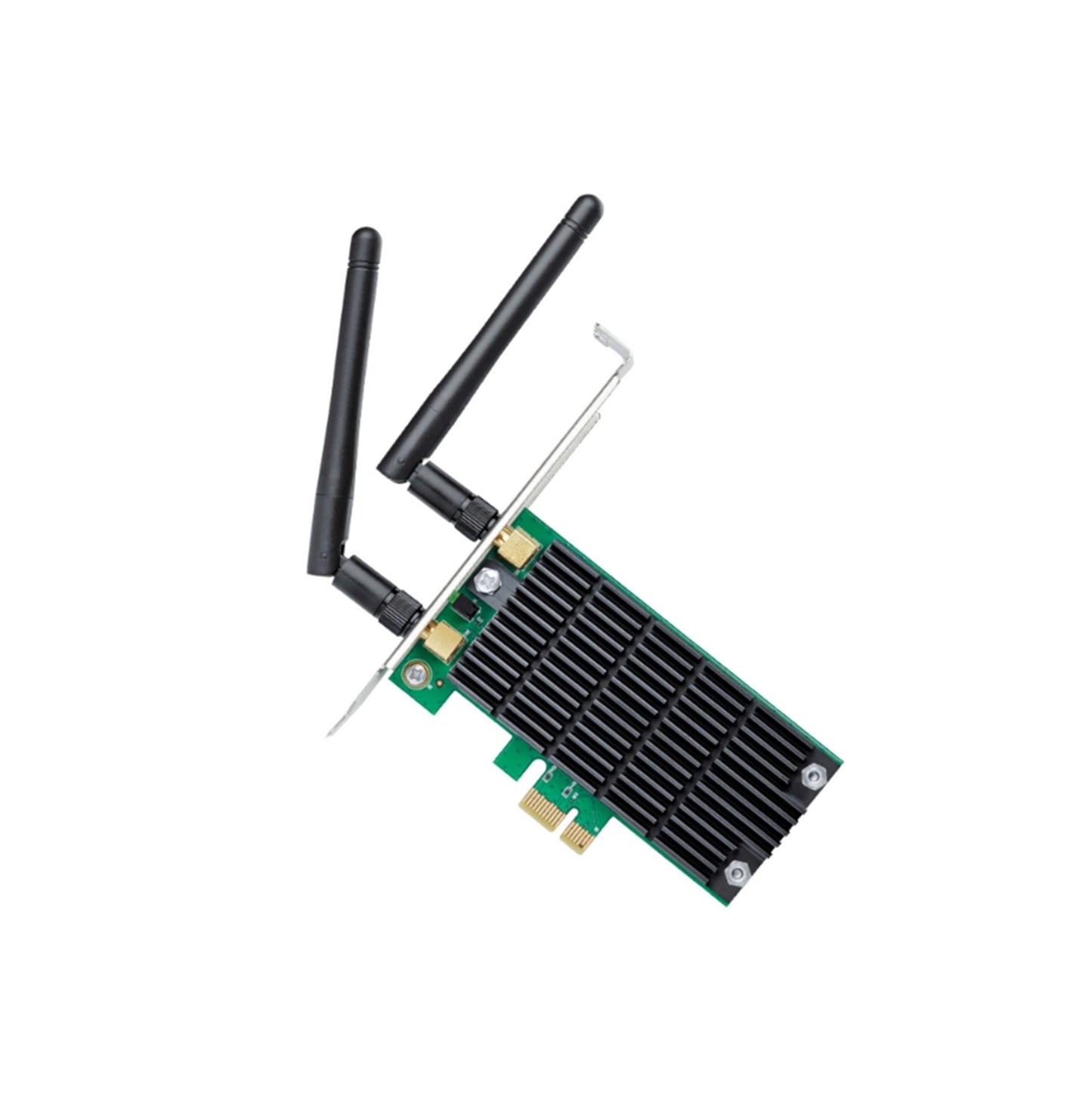

TP-Link Archer T4E (AC1200) Dual-Band WiFi 5 PCIe Wireless Adapter
TP-Link Archer T4E (AC1200) Dual-Band WiFi 5 PCIe Wireless Adapter
TP-Link Archer T4E
Dual Band Wi-Fi for Faster Connections (802.11ac)
TP-LINK's Archer T4E supports the advanced Wi-Fi standard of IEEE 802.11ac, offering 3 times transferring rates as IEEE 802.11n. You can send emails and browse the web with 2.4GHz network, while keeping the speedy 5GHz band free for gaming, HD streaming and other bandwidth intensive applications.
Greater Coverage with Beamforming
Beamforming technology smartly focuses Wi-Fi signals towards connected devices for stable connections and boosted range.
Heat Sink for Ultimate Stability
A heat sink helps to dissipate the thermal energy generated by the adapter, which in turn improves stability. Additionally, lower temperatures help to extend the product lifespan.
External Antennas for More Targeted signal
Two external antennas utilize the latest wireless technology to achieve stable connections and boosted coverage.
Specifications
Hardware Features
Interface
PCI Express
Dimensions ( W x D x H )
120.8*115.2*21.5 mm
Antenna Type
2 Dual Band Detachable Antennas
Wireless Features
Wireless Standards
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/g/b 2.4 GHz
Signal Rate
Transmit Power
5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP)
Wireless Modes
Infrastructure mode
Wireless Security
Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
Others
Certification
CE, FCC, RoHS
Package Contents

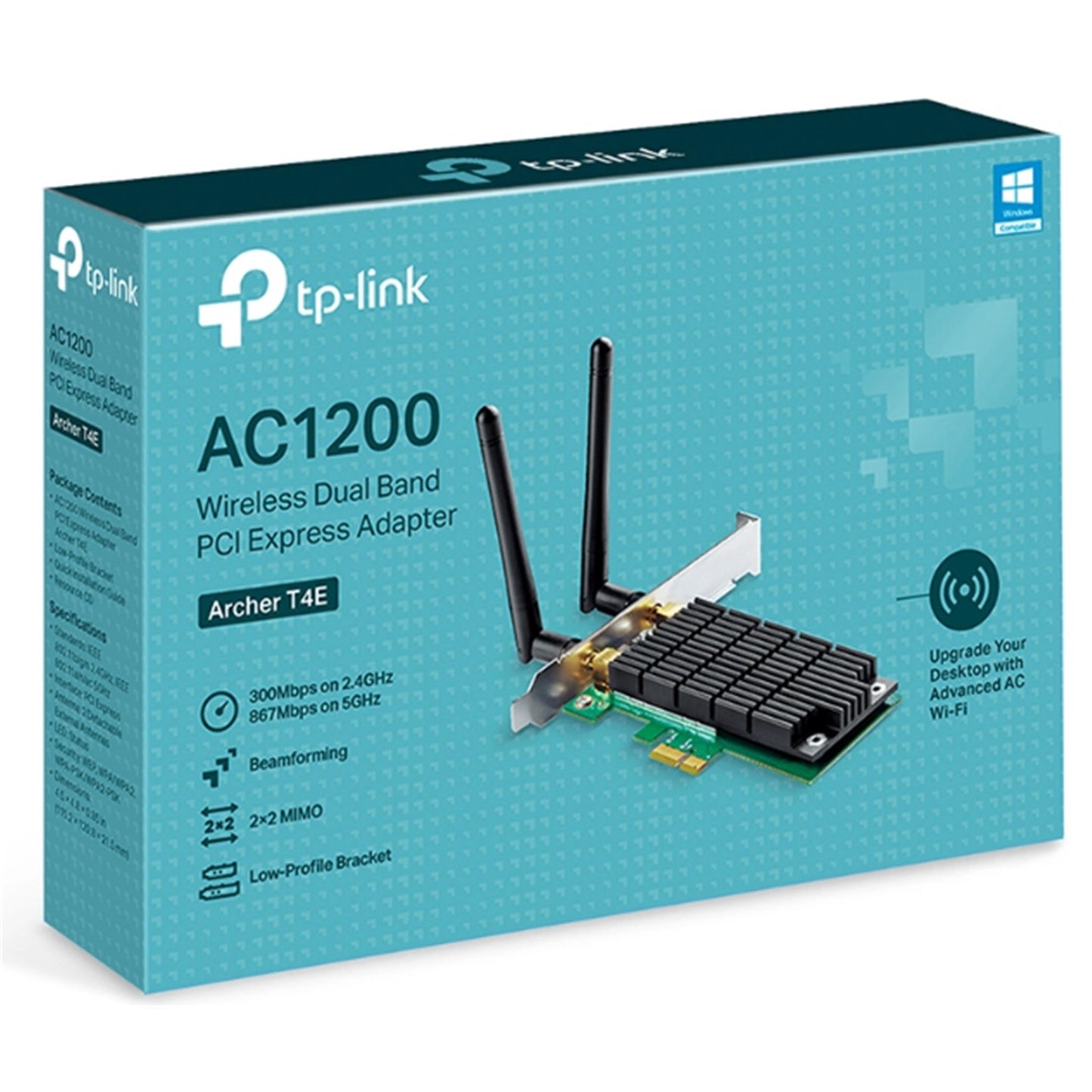

AC1200 Wireless Dual Band PCI Express Adapter Archer T4E

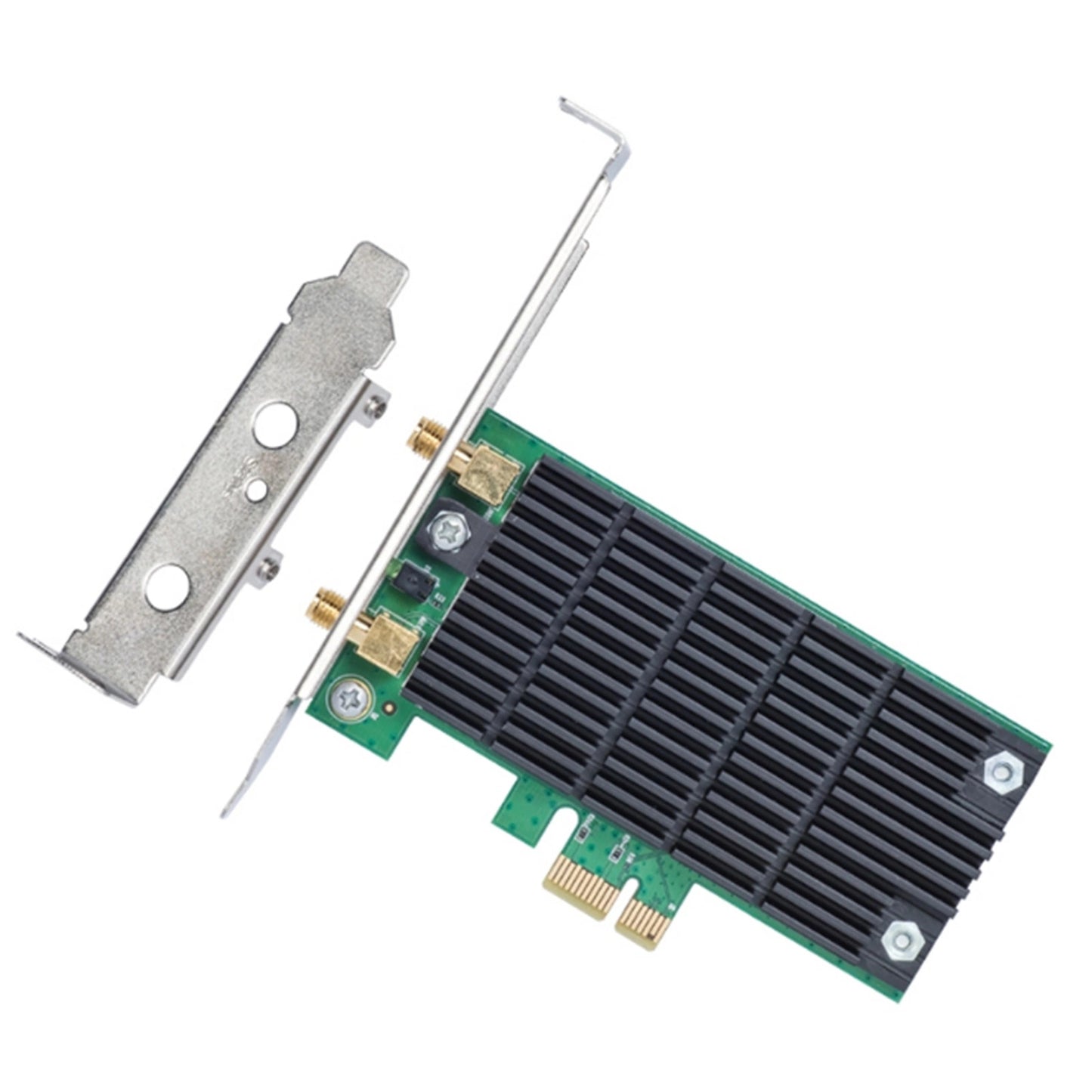

Low-Profile Bracket
Quick Installation Guide
Resource CD
System Requirements
Windows 10/8.1/8/7/XP (32/64bit)
Environment
Operating Temperature
0?~40? (32?~104?)
Storage Temperature
-40?~70? (-40?~158?)
Operating Humidity
10%~90% non-condensing
Storage Humidity
5%~90% non-condensing
