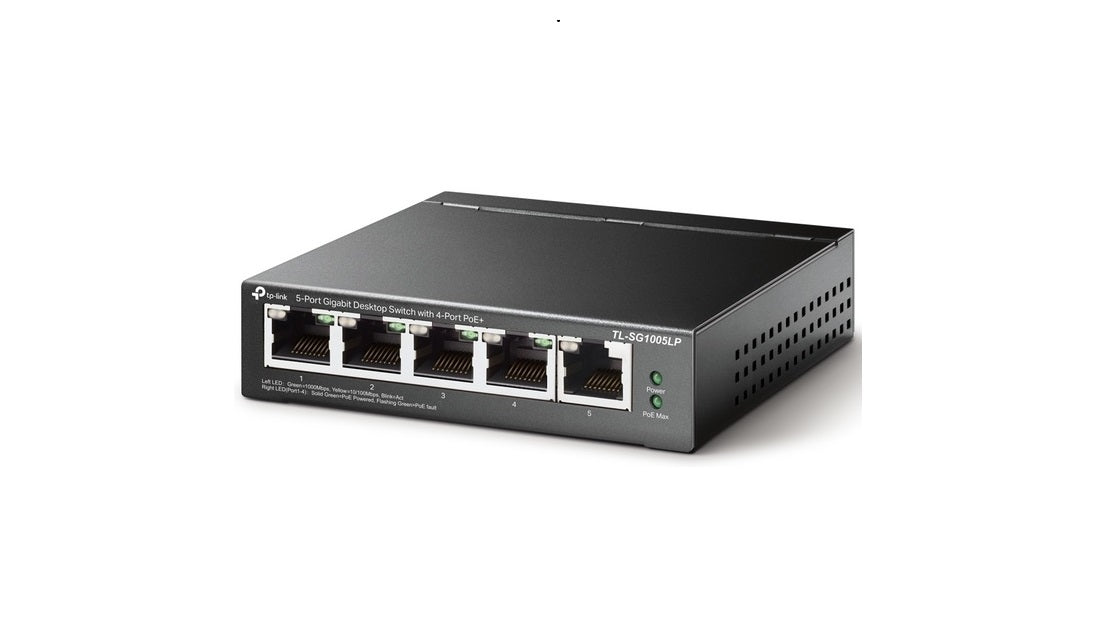

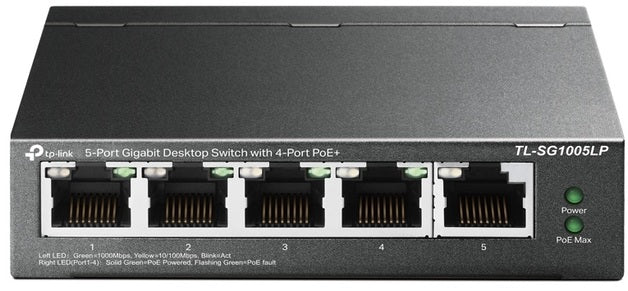

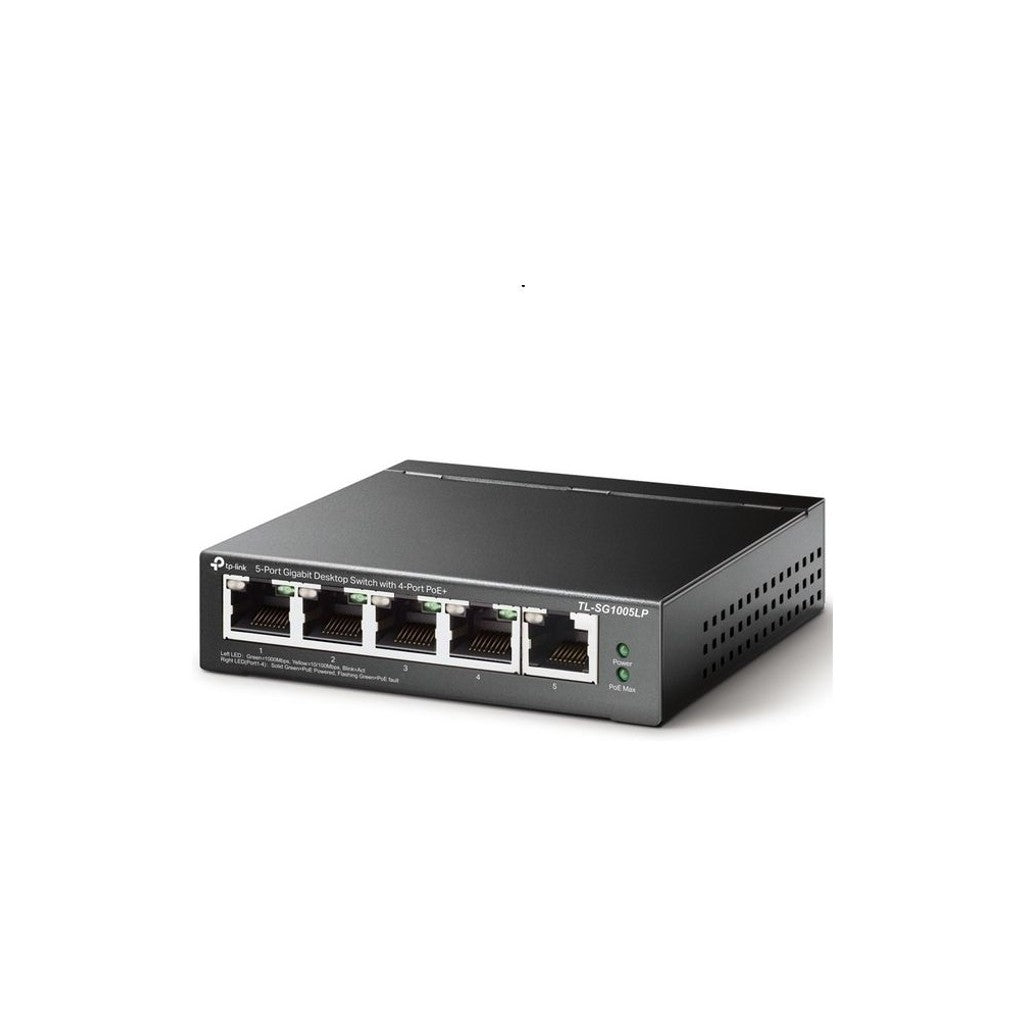

TP-Link SG1005LP 5 Port Gigabit Switch with 4x PoE+ Ports

TP-Link SG1005LP 5 Port Gigabit Switch with 4x PoE+ Ports

Regular price $99.00
Regular price Sale price $99.00
Sale Sold out
Tax included. Shipping calculated at checkout.

5 Year Limited Warranty

Professional 5-Port Gigabit Switch with 4 PoE+ Ports

5× 10/100/1000 Mbps RJ45 ports
With four PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 40 W for all PoE ports*
Plug and play, no configuration and installation required
Plug and Play, with a PoE power supply that meets the needs of diverse devices.

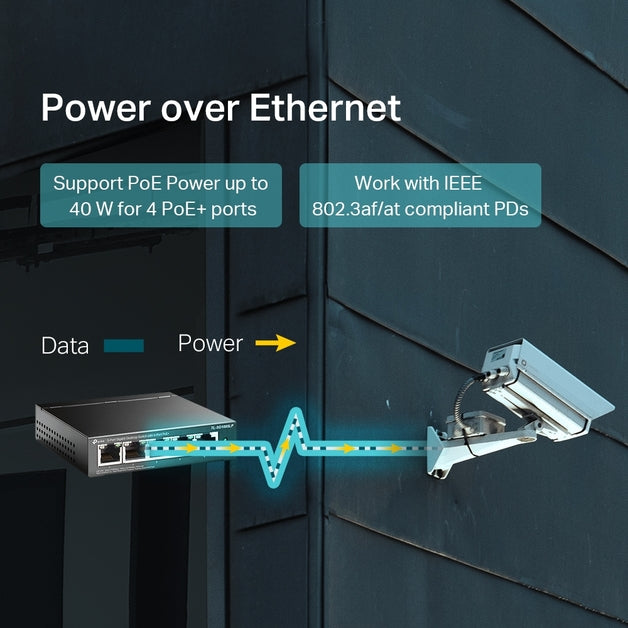

Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications – Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Intelligent Power Management – When total power consumption exceeds 40 W, intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Advanced Functions for Higher Performance
Qos – For Fluent Online Experience: Administrators can designate the priority of the traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping – Traffic Optimization for IPTV: IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Durable Metal Casing – The interior components of TL-SG1005LP are protected by a high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.
Technical Specifications:
Hardware Features:
5× 10/100/1000Mbps RJ45 Ports
AUTO Negotiation
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: Fanless
External Power Supply: External Power Adapter (Output: 53.5 VDC / 0.81 A)
Packet Forwarding Rate: 7.44 Mpps
PoE Ports (RJ45):
Standard: 802.3 af/at compliant
PoE Ports: Ports 1–4
Power Supply: 40 W
Mac Address Table: 2K
Jumbo Frame: 16 KB
Switching Capacity: 10 Gbps
Dimensions ( W x D x H ): 3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption:
4.12 W (220/50 Hz. no PD connected)
47.5 W (220/50 Hz. with 40 W PD connected)
Max Heat Dissipation:
14.05 BTU/h (no PD connected)
161.98 BTU/h (with 40 W PD connected)
Software Features:
Advanced Features:
Compatible With IEEE 802.3af/at Compliant PDs
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3× Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method: Store-And-Forward
Certification: FCC, CE, RoHS
Package Contents:
Power Adapter
Installation Guide
Operating Temperature: 0–40 ℃ (32–104 ℉);
Storage Temperature: –40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
