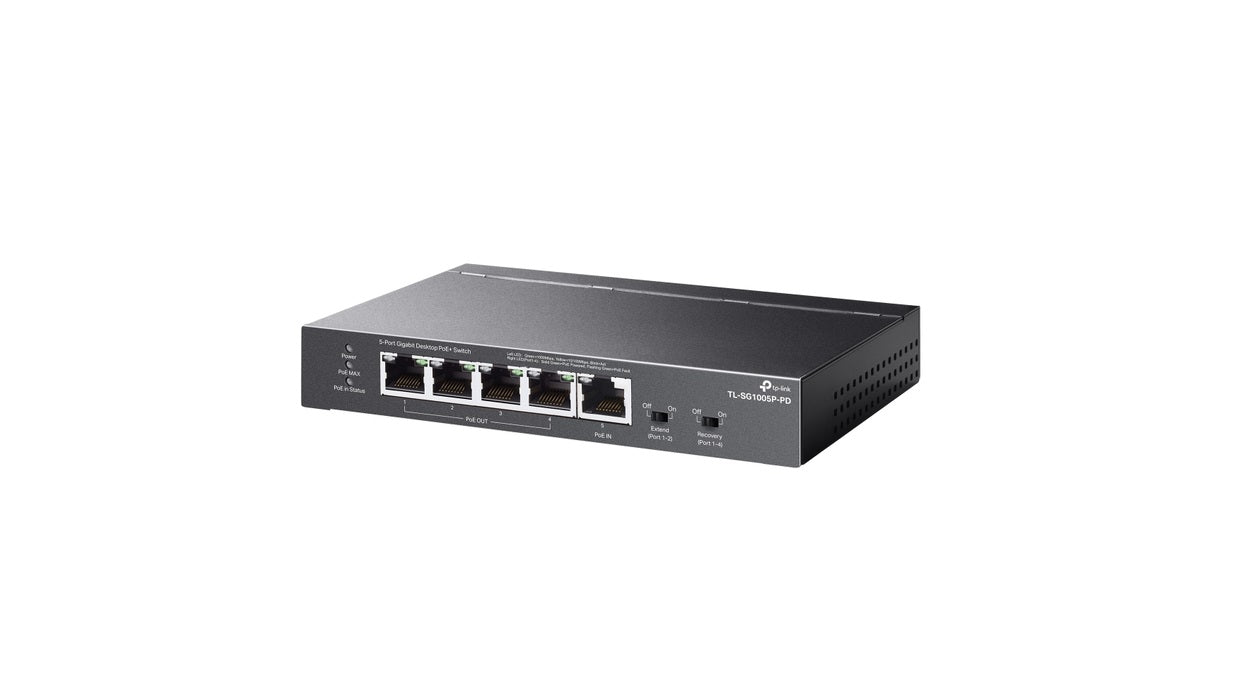

TP-Link SG1005P-PD 5-Port Gigabit Desktop PoE+ Switch
TP-Link SG1005P-PD 5-Port Gigabit Desktop PoE+ Switch
5 Year Limited Warranty
Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports
1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.
PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
Long-Range PoE+: With Extend Mode, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
Plug and Play: No configuration and installation required.
Power Supply: The product only supports PoE power supply, not AC or DC power supply.
Technical Specifications:
HARDWARE FEATURES:
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3×, IEEE 802.1p
Interface:
5× 10/100/1000Mbps RJ45 Ports
1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4)
4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at)
AUTO Negotiation
AUTO MDI/MDIX
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: Fanless
Power Supply: Only Powered by PoE Device

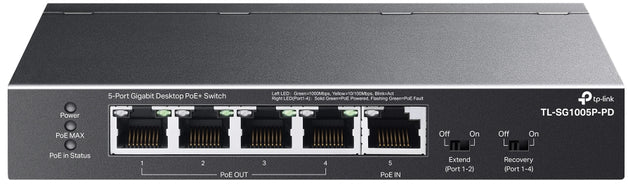

PoE Ports (RJ45):
PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4
PoE Out Ports: Ports 1–4, compliance with 802.3af/at
PoE Power Budget:
–66 W when powered by 802.3bt Type 4 (90 W)
–47 W when powered by 802.3bt Type 3 (60 W)
–21 W when powered by 802.3at (30 W)
–9 W when powered by 802.3af (15.4 W)
Dimensions ( W x D x H ): 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
Max Power Consumption:
2.68 W (90W PoE In, with no PD connected)
68.59 W (90W PoE In, with 66 W PD connected)
Max Heat Dissipation:
9.112 BTU/h (90W PoE In, with no PD connected)
233.206 BTU/h (90W PoE In, with 66 W PD connected)
PERFORMANCE:
Switching Capacity: 10 Gbps
Packet Forwarding Rate: 7.44 Mpps
MAC Address Table: 2k
SOFTWARE FEATURES:
Advanced Features:
Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
PoE Auto Recovery (Ports 1–4)
Mac Address Auto-Learning and Auto-Aging
IEEE 802.3× Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method: Store-And-Forward
OTHERS:
Certification: CE, FCC, RoHS
Package Contents:
TL-SG1005P-PD
Installation Guide
Environment:
Operating Temperature: –30–70 ℃ (-22–158 ℉);
Storage Temperature: –40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
