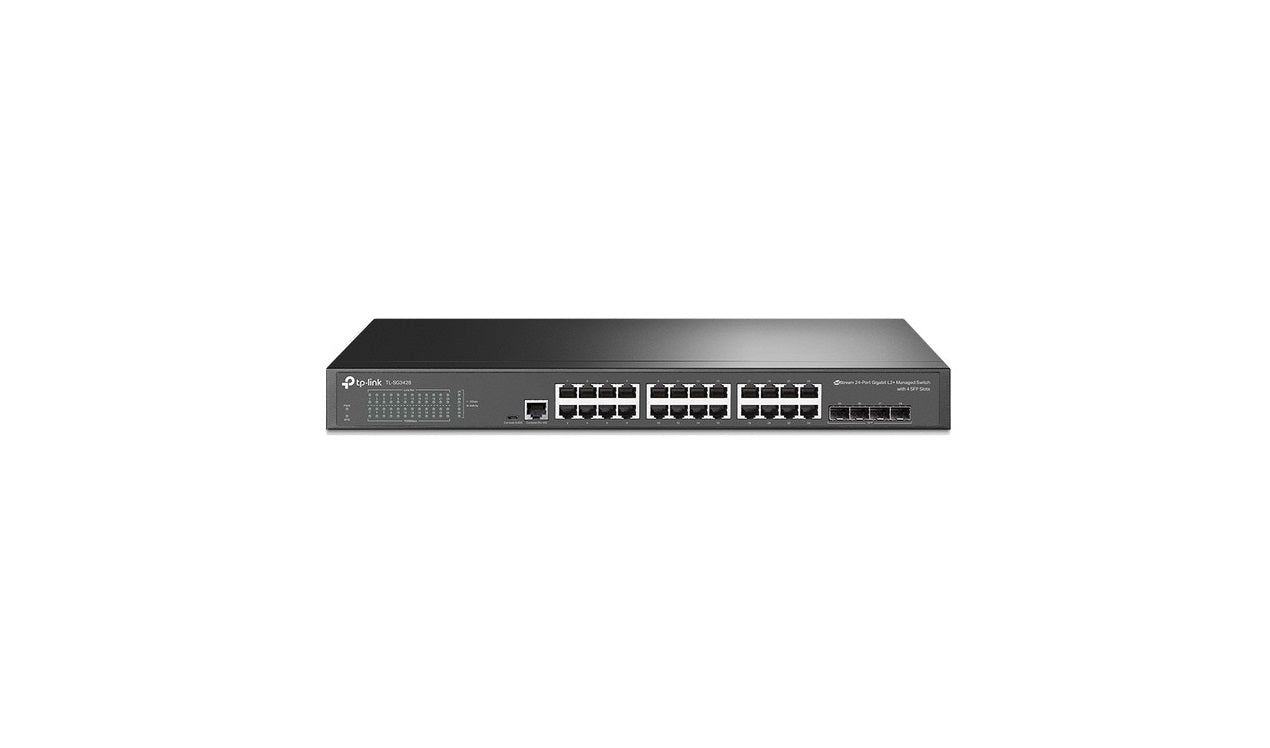

TP-Link SG3428 Omada SDN 24 Port Gigabit Managed Switch w/4xSFP

3 Year Limited Warranty

Convenient Gigabit Switch for a Complete Omada Network

Full Gigabit Ports: 24× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN: Centralized Cloud Management and Intelligent Monitoring.
Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Secure Networking: Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Advanced QoS: Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
Abundant L2 and L2+ Features: A complete lineup of L2 features is supported including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3× Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routes traffic through the switch for improved efficiency.
ISP Features: QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication features are provided and developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer straightforward monitoring and troubleshooting of Ethernet links.
IPv6 Support: IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Enterprise Level Management Features: Easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps on abnormal events.
Technical Specifications:
Hardware Features:

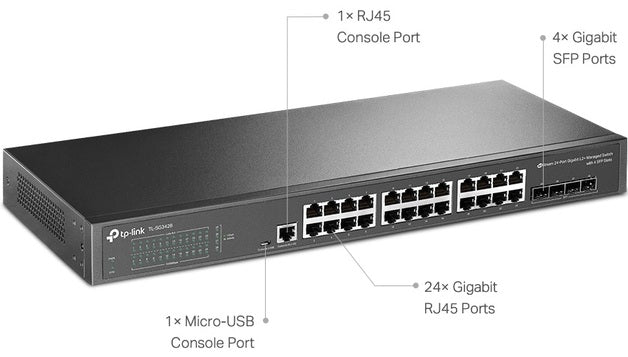

Interface:
24× 10/100/1000 Mbps RJ45 Ports
4× Gigabit SFP Slots
1× RJ45 Console Port
1× Micro-USB Console Port
Fan Quantity: Fanless

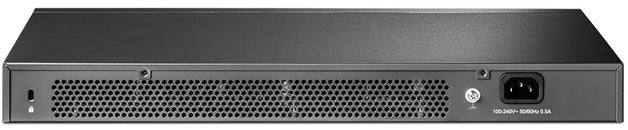

Power Supply: 100–240 V AC~50/60 Hz
Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting: Rack Mountable
Max Power Consumption:
V1: 19.22 W (110 V/60 Hz)
V2: 19.9 W (220 V/50 Hz)
Max Heat Dissipation:
V1: 65.58 BTU/hr (110 V/60 Hz)
V2: 67.73 BTU/h (220 V/50 Hz)
Performance:
Switching Capacity: 56 Gbps
Packet Forwarding Rate: 41.66 Mpps
MAC Address Table:
V1: 8K
V2 and above: 16K
Packet Buffer Memory: 12 Mbit
Jumbo Frame: 9 KB
Software Features:
Quality of Service:
8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
SP (Strict Priority)
WRR (Weighted Round Robin)
SP+WRR
Bandwidth Control
Port/Flow based Rating Limiting
Smoother Performance
Action for Flows
Mirror (to supported interface)
Redirect (to supported interface)
Rate Limit
QoS Remark
L2 and L2+ Features:
Link Aggregation
Static link aggregation
802.3ad LACP
Up to 8 aggregation groups and up to 8 ports per group
Spanning Tree Protocol
802.1d STP
802.1w RSTP
802.1s MSTP
STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
Loopback Detection
Port-based
VLAN based
Flow Control
802.3× Flow Control
HOL Blocking Prevention
Mirroring
Port Mirroring
CPU Mirroring
One-to-One
Many-to-One
Tx/Rx/Both
L2 Multicast:
Supports 511 (IPv4, IPv6) IGMP groups
IGMP Snooping
IGMP v1/v2/v3 Snooping
Fast Leave
IGMP Snooping Querier
IGMP Authentication
IGMP Authentication
MVR
MLD Snooping
MLD v1/v2 Snooping
Fast Leave
MLD Snooping Querier
Static Group Config
Limited IP Multicast
Multicast Filtering: 256 profiles and 16 entries per profile
VLAN:
VLAN Group
Max 4K VLAN Groups
802.1q Tagged VLAN
MAC VLAN: 30 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
GVRP
VLAN VPN (QinQ)
Port-Based QinQ
Selective QinQ
Voice VLAN
Access Control List:
Time-based ACL
MAC ACL
Source MAC
Destination MAC
VLAN ID
User Priority
Ether Type
IP ACL
Source IP
Destination IP
Fragment
IP Protocol
TCP Flag
TCP/UDP Port
DSCP/IP TOS
User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
Mirroring
Redirect
Rate Limit
QoS Remark
ACL apply to Port/VLAN
Security:
IP-MAC-Port Binding
DHCP Snooping
ARP Inspection
IPv4 Source Guard
IPv6-MAC-Port Binding
DHCPv6 Snooping
ND Detection
IPv6 Source Guard
DoS Defend
Static/Dynamic Port Security
Up to 64 MAC addresses per port
Broadcast/Mul­ticast/Unicast Storm Control
kbps/ratio/pps control mode
IP/Port/MAC based access control
802.1X
Port based authentication
Mac based authentication
VLAN Assignment
MAB
Guest VLAN
Support Radius authentication and accountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IPv6:
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
L3 Features:
16 IPv4/IPv6 Interfaces
Static Routing
48 static routes
Static ARP
512 ARP Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay
Advanced Features:
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
MIBs:
MIB II (RFC1213)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIBs
RMON MIB(RFC1757, rmon 1,2,3,9)
Management:
Omada App: Yes, through
Omada Cloud-Based Controller (TL-SG3428 v2 and above)
OC300
OC200
Omada Software Controller
Centralized Management:
Omada Cloud-Based Controller (TL-SG3428 v2 and above)
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access: Yes, through
Omada Cloud-Based Controller (TL-SG3428 v2 and above)
OC300
OC200
Omada Software Controller
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller (TL-SG3428 v2 and above).
Management Features:
Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
Trap/Inform
RMON (1, 2, 3, 9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log
Others:
Certification: CE, FCC, RoHS
Package Contents:
TL-SG3428 Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet
System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment:
Operating Temperature: 0–45 ℃ (32–113 ℉);
Storage Temperature: –40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
