TP-Link

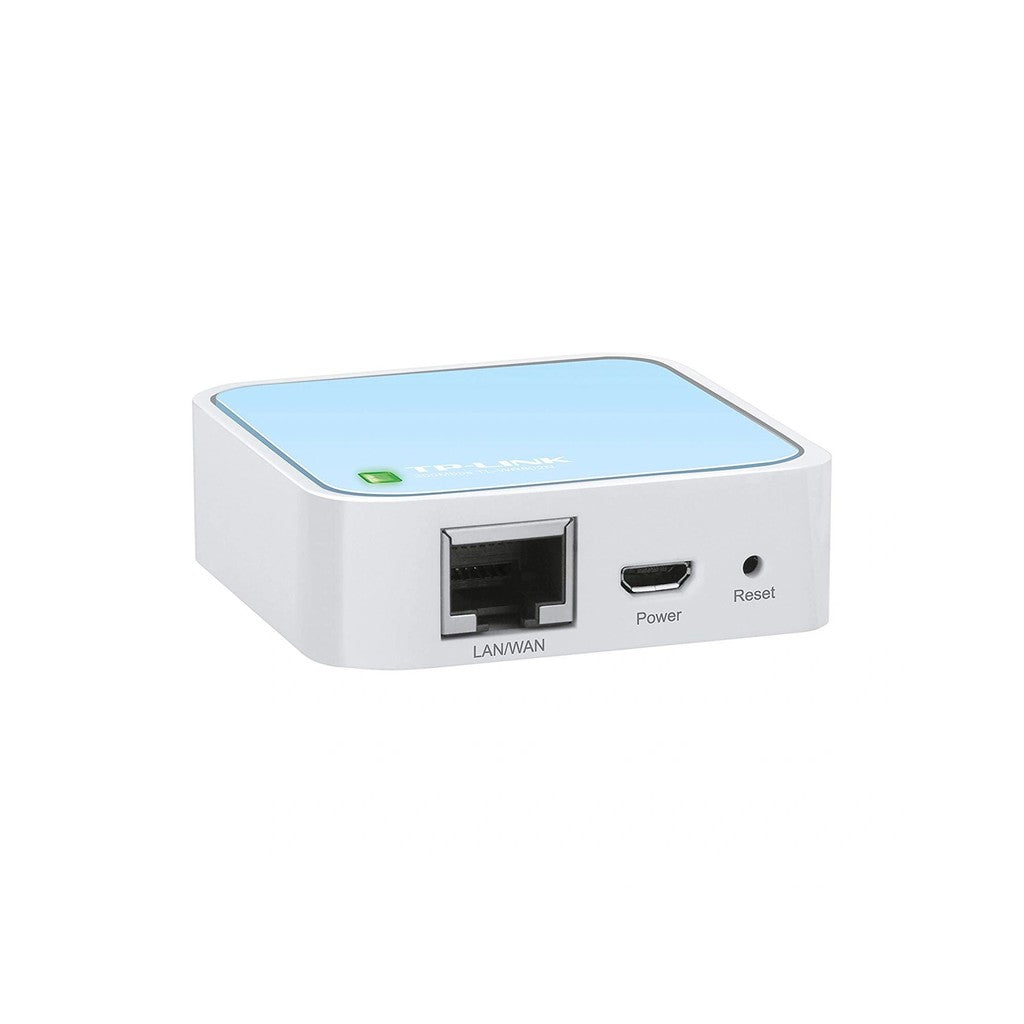

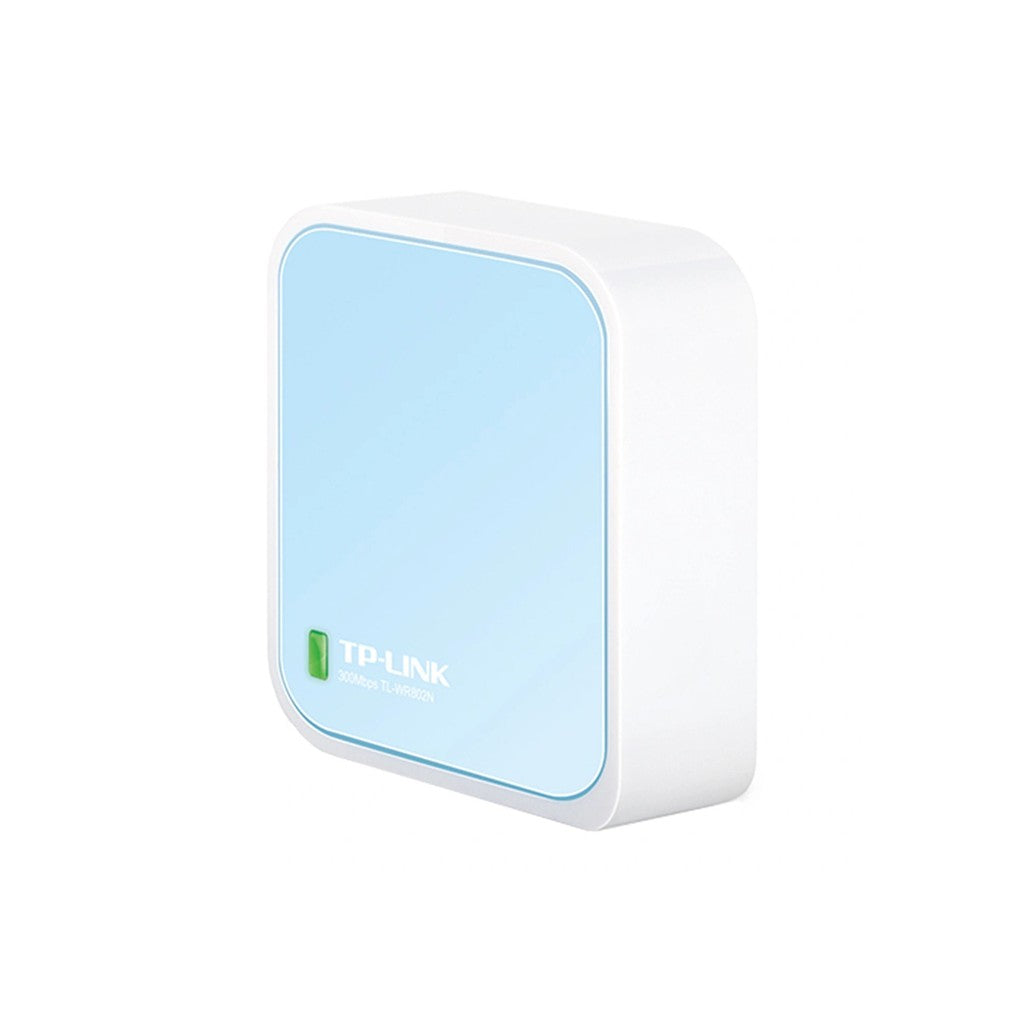

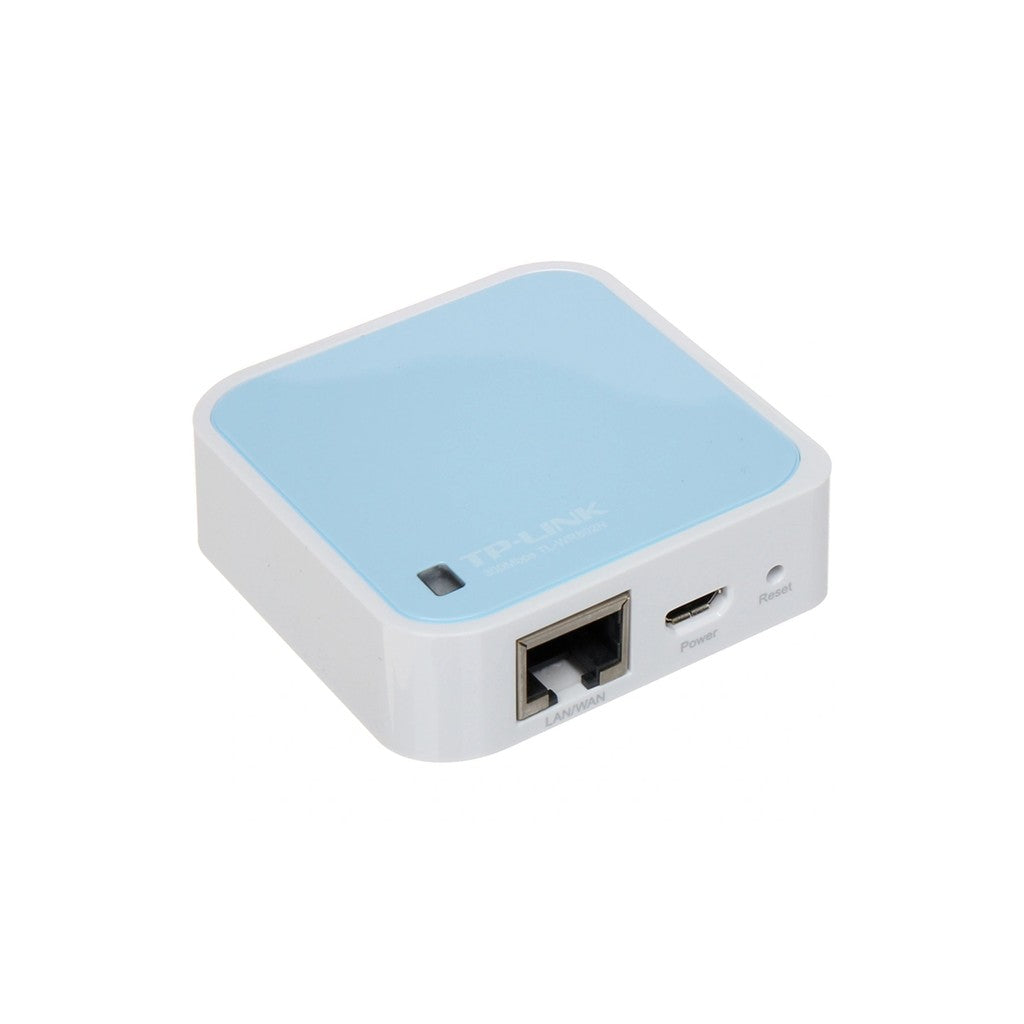

TP-Link TL-WR802N N300 WiFi 4 Nano Router
TP-Link TL-WR802N N300 WiFi 4 Nano Router
Couldn't load pickup availability
- 300Mbps wireless data rates is ideal for video streaming, online gaming and Internet calling
- Pocket-size - Ideal for home and travel use
- Supports Router, Repeater, Client, AP and hotspot operation modes
- Powered through a micro USB port by an external power adapter or USB connection to a computer provides flexibility for any situation
- Easy installation in minutes
What is the TL-WR802N?
The TL-WR802N is designed for use with tablets, smart phones, handheld game consoles and other portable electronic wireless devices. The devices, which can be powered by an external power adapter or USB connection to a computer, can conveniently connect to the Internet and share the connection around an average sized room at 300Mbps. The device's tiny size makes it ideal for use on the road and is powerful enough to satisfy almost any basic wireless application requirement.

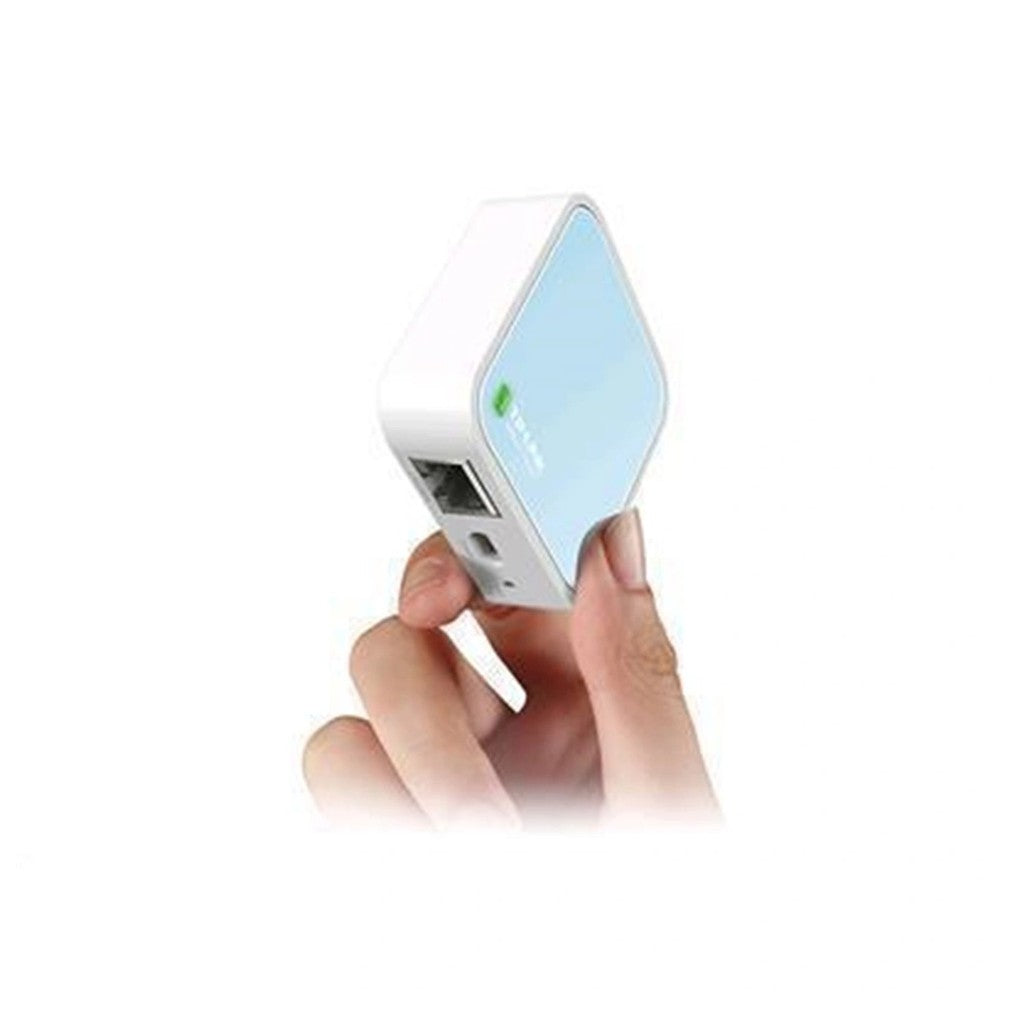

Portable and Compact - Ideal for Home and Travel Use
The TL-WR802N is the perfect travel companion for anyone who needs fast, easy Internet access on the go. Portable and compact design easily fits into a pocket or the palm of your hand. Simply plug a hotel room's ethernet cable into the port provided and enter a default password to instantly create a wireless hotspot in the room.
Flexible Power Supply - Easy to Take on the Road
TL-WR802N can be powered by an external power adapter or via a USB connection to a computer. When traveling, users can plug the TL-WR802N into computer's USB port and share Wi-Fi connection with family and friends.
Multiple Operation Modes
TL-WR802N supports Router (default), Repeater, Client, AP and WISP modes to enable various wireless applications to give users a more dynamic and comprehensive wireless networking experience.
WPA / WPA2 Encryptions
WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.
| Standards and Protocols |
Wi-Fi 4 IEEE 802.11n/b/g 2.4 GHz |
|---|---|
| WiFi Speeds |
N300 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range |
2 Bedroom Houses 2× Fixed Antennas |
| WiFi Capacity | Legacy |
| Working Modes | Router Mode Access Point Mode Range Extender Mode Client Mode Hotspot Mode (WISP Mode) |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
|---|---|
| Guest Network | 1× 2.4 GHz Guest Network |
| WiFi Encryption | WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x)* *Only Available in the Router and AP Modes. |
| Processor | Single-Core CPU |
|---|---|
| Ethernet Ports | 1× 10/100 Mbps WAN/LAN Port |
| Buttons | Reset Button |
| Power | 5 V ⎓ 1 A |
| Protocols | IPv4 IPv6 |
|---|---|
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| NAT Forwarding | Virtual Server Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | NO-IP Comex DynDNS |
| Management Features | Tether App Webpage Check Web Emulator> |
| Network Services Enabled by Default |
Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP App management Manage and configure device through app • Port: 20001 Protocol: TCP • Port: 20002 Protocol: UDP |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| WiFi Transmission Power | FCC: <30dBm |
|---|---|
| WiFi Reception Sensitivity | 270M: -70dBm@10% PER 130M: -75dBm@10% PER 108M: -88dBm@10% PER 54M: -78dBm@10% PER 11M: -100dBm@8% PER 6M: -92dBm@10% PER 1M: -100dBm@8% PER |
| Dimensions (W×D×H) | 2.2 × 2.2 × 0.7 in (57 × 57 ×18 mm) |
|---|---|
| Package Content | Wi-Fi Router TL-WR802N Power Adapter USB Cable RJ45 Ethernet Cable Quick Installation Guide Resource CD |
