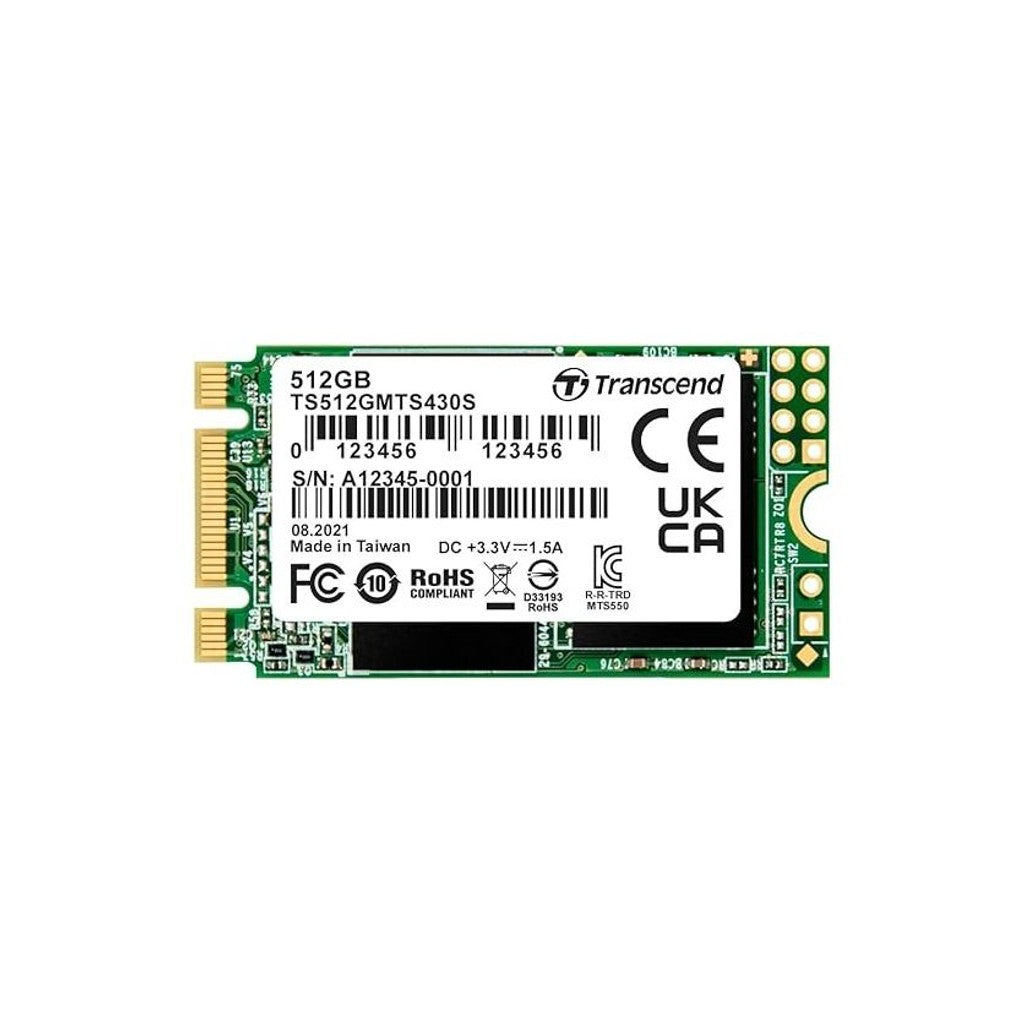

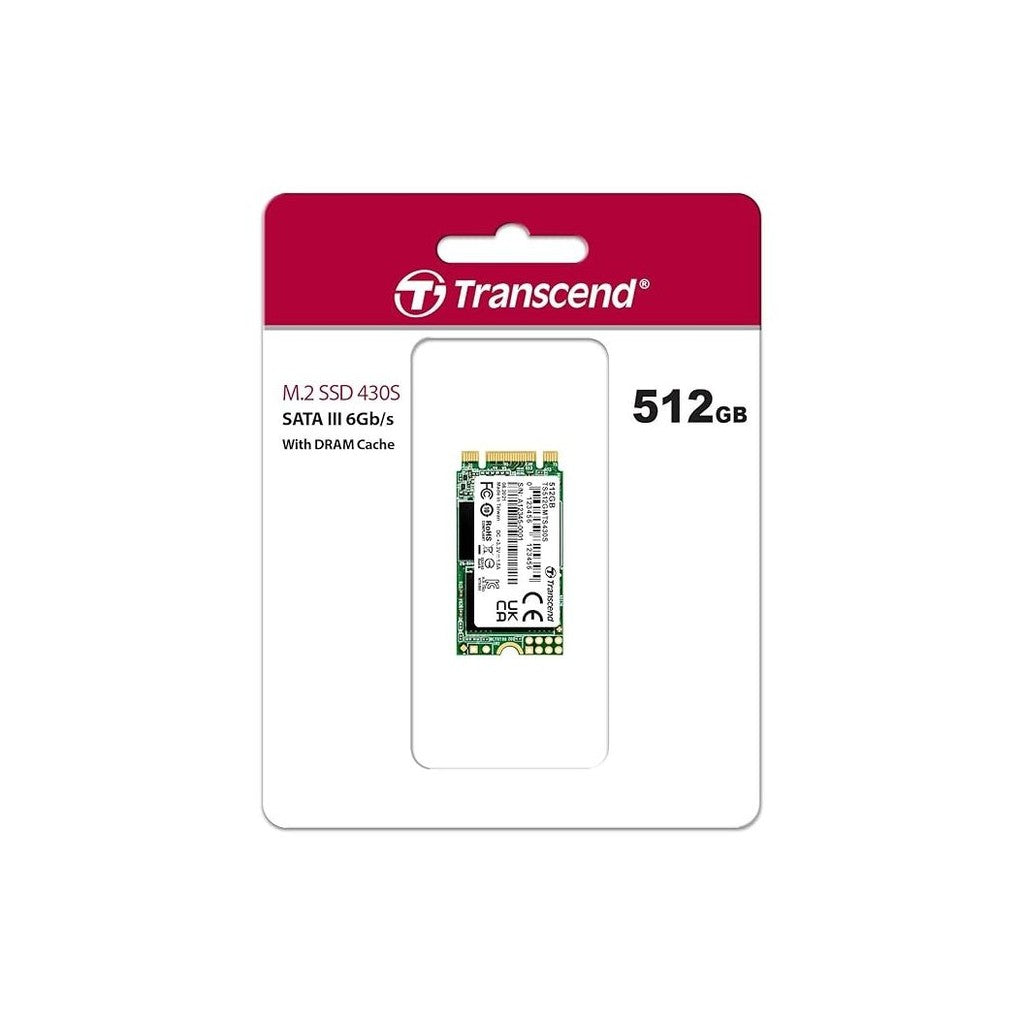

Transcend 430S 512GB M.2 2242 SATA SSD

Transcend 430S 512GB M.2 2242 SATA SSD

$165.00
$165.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

M.2 SSD 430S

Transcend's ultra-compact SATA III 6Gb/s M.2 SSD 430S addresses the high-performance needs and strict size limitations of small form factor devices, best suited for Ultrabooks and thin, light notebooks. Boasting high-quality flash chips, DDR3 DRAM cache, and enhanced firmware algorithms, Transcend's M.2 SSD 430S delivers optimal reliability.


3D expansion to break through limits

Unlike the existing planar NAND chips, 3D NAND flash is a type of flash memory in which the memory cells are stacked vertically in multiple layers. 3D NAND is developed to break through density limitations of the 2D planar NAND, and thus can deliver a greater level of performance and endurance.



Perfect for your Ultrabook



Compliant with M.2 form factors Type 2242 and 2280, Transcend's 3D NAND M.2 SSDs are perfect for use in Ultrabooks and lightweight notebooks. Measured at just 42mm in length, the M.2 SSD 430S makes for an easy upgrade to your computer, taking up little space while giving it a much needed energy boost.

Superior transfer speeds



Featuring the M.2 standard (42mm), the next generation SATA III 6Gb/s interface and a powerful controller, Transcend's M.2 SSD 430S reaches incredible read and write speeds of up to 560MB/s and 520MB/s. When used as a cache, the M.2 SSD 430S provides 1.5 times faster boot time than conventional hard drives.



High IOPS to speed up loading times



Dedicated to maximizing high-performance computing, the M.2 SSD 430S features 4k random file read and write speeds up to 85,000 IOPS that deliver incredibly short loading times and almost instant response for heavy graphics and multimedia applications.



Store more in less space



The M.2 form factor enables expansion and integration of functions onto a single form factor module solution. M.2 SSDs include a smaller form factor but with larger capacities than that of mSATA and half-slim SSDs.



Potent and feature-laden



Despite its extra-small dimensions, the M.2 SSD 430S boasts a DDR3 DRAM cache and contains advanced features to enhance the performance of the SSD.



Specifications

Appearance
Type
  • M.2 2242
Dimensions 42.0 mm x 22.0 mm x 3.58 mm (1.65" x 0.87" x 0.14")
Weight 5 g (0.18 oz)

Interface
Bus Interface
  • SATA III 6Gb/s

Storage
Flash Type
  • 3D NAND flash
Capacity
  • 512 GB/

Operating Environment
Operating Temperature 0°C (32°F) ~ 70°C (158°F)
Operating Voltage
  • 3.3V±5%

Performance
Sequential Read/Write (CrystalDiskMark)
  • 512 GB
    Up to 560/500 MB/
4K Random Read/Write (IOmeter)
  • 512 GB
    Up to 65,000/85,000 IOP
Terabytes Written (TBW)
  • 512 GB
    280 TBW
Mean Time Between Failures (MTBF) 2,000,000 hour(s)
Drive Writes Per Day (DWPD) 0.3 (5 yrs)
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.
  • The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
  • Terabytes Written (TBW) expresses the endurance under the highest capacity.

Warranty
Certificate
  • CE/
  • UKCA/
  • FCC/
  • BSMI/
  • KC/
  • RCM
Warranty
  • Five-year Limited Warranty
Warranty Policy
  • Please click here for more information about the Transcend Warranty Policy.
  • Warranty does not apply when SSD Scope's lifetime indicator displays 0% within the warranty coverage.

System Requirement
Operating System
  • Microsoft Windows 7 or later
  • Linux Kernel 2.6.31 or later
Note
  • Please make sure that your computer has a M.2 slot.

Technology
TRIM & NCQ Command
S.M.A.R.T.
DDR3 DRAM Cache
Advanced Garbage Collection
DevSleep Mode
RAID Engine
LDPC Coding
