Zalman

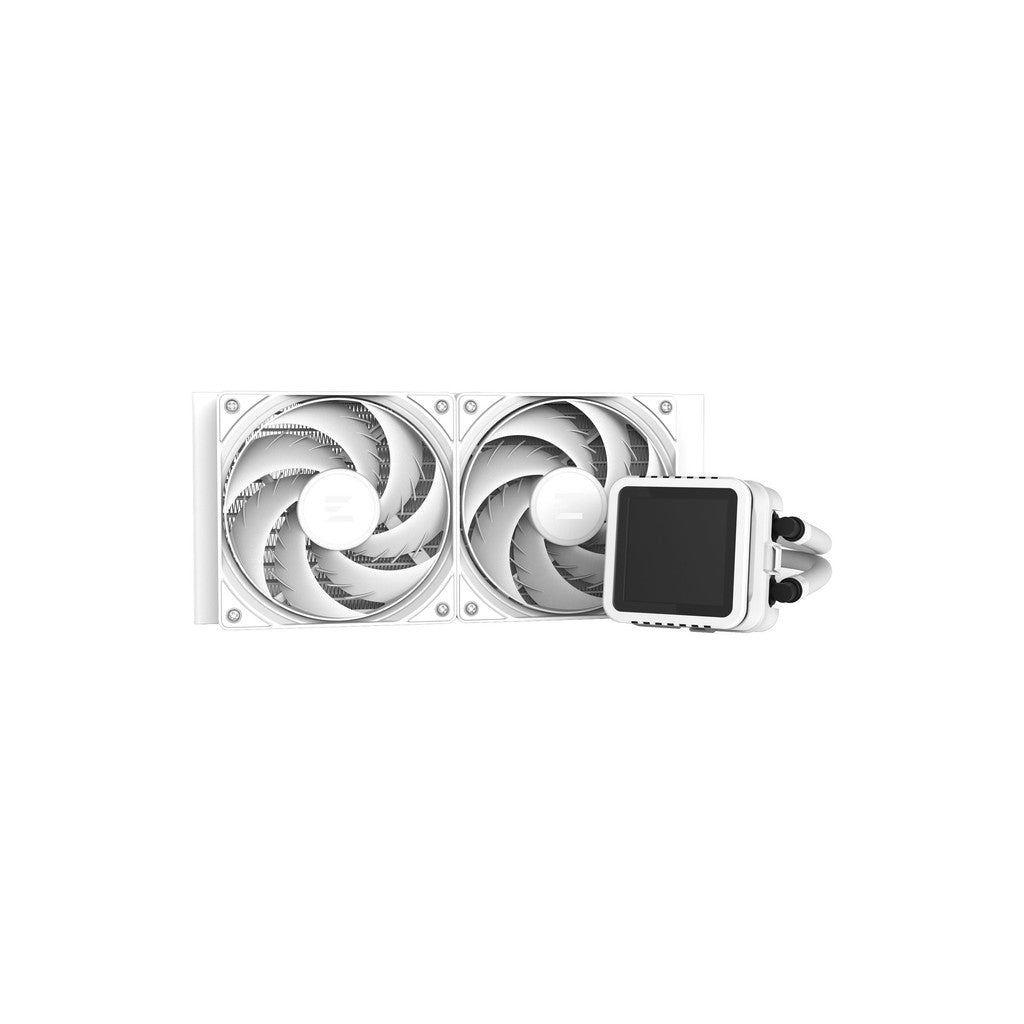

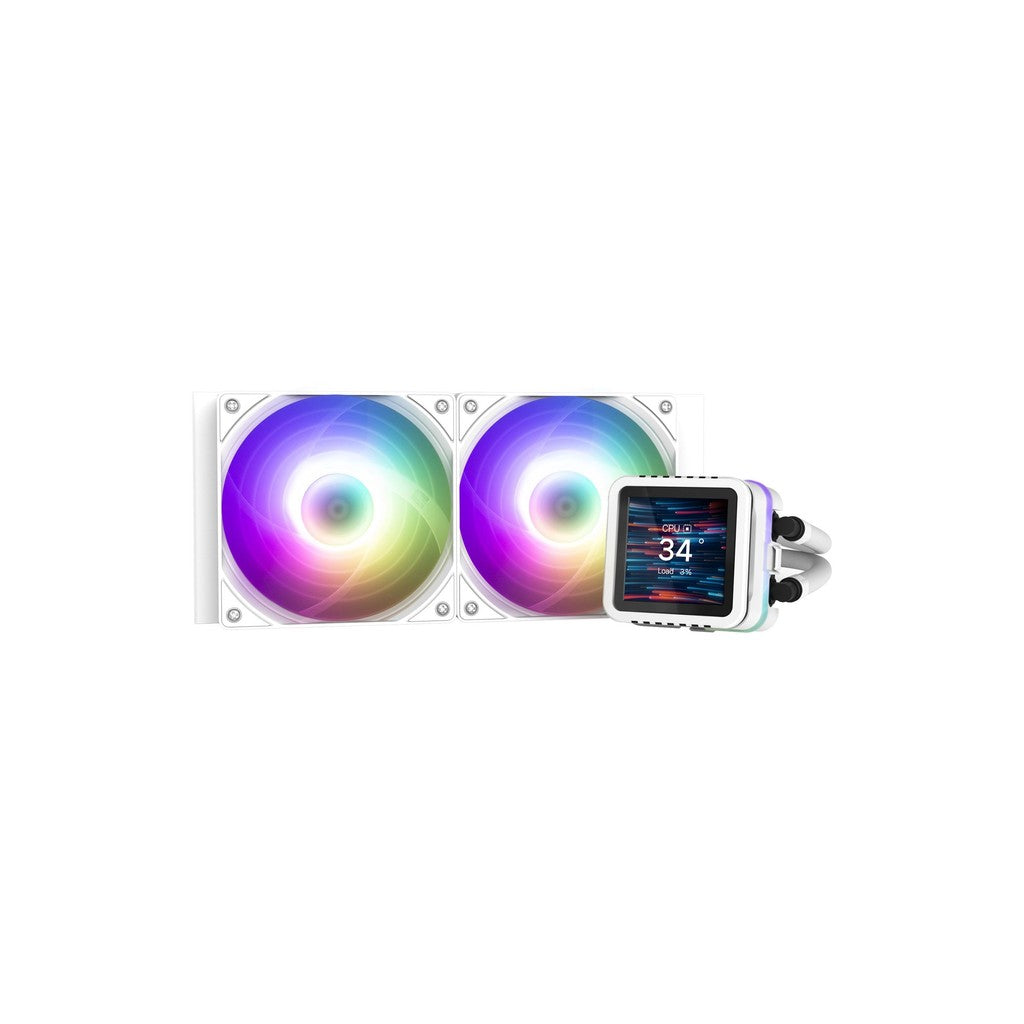

Zalman Alpha2 DS 24 ARGB White 240mm AIO Liquid Cooler
Zalman Alpha2 DS 24 ARGB White 240mm AIO Liquid Cooler
Couldn't load pickup availability
| Model | Alpha2 DS A24 WHITE |
|---|---|
| Pump ▼ | ---------------------------------------- |
| Dimensions | 72(L) x 72(W) x 65(H)mm |
| Materials | ABS,PC,Pure Copper |
| Speed | 3,300 RPM ±10% |
| Bearing Type | Ceramic Bearing |
| Water Flow | 1.25L/min |
| Rated Voltage | 12V (LED:5V) |
| Rated Current | 0.45A |
| Power Consumption | 5.4W |
| Radiator ▼ | ---------------------------------------- |
| Dimensions | 120 x 277 x 27(H)mm |
| Materials | Aluminum |

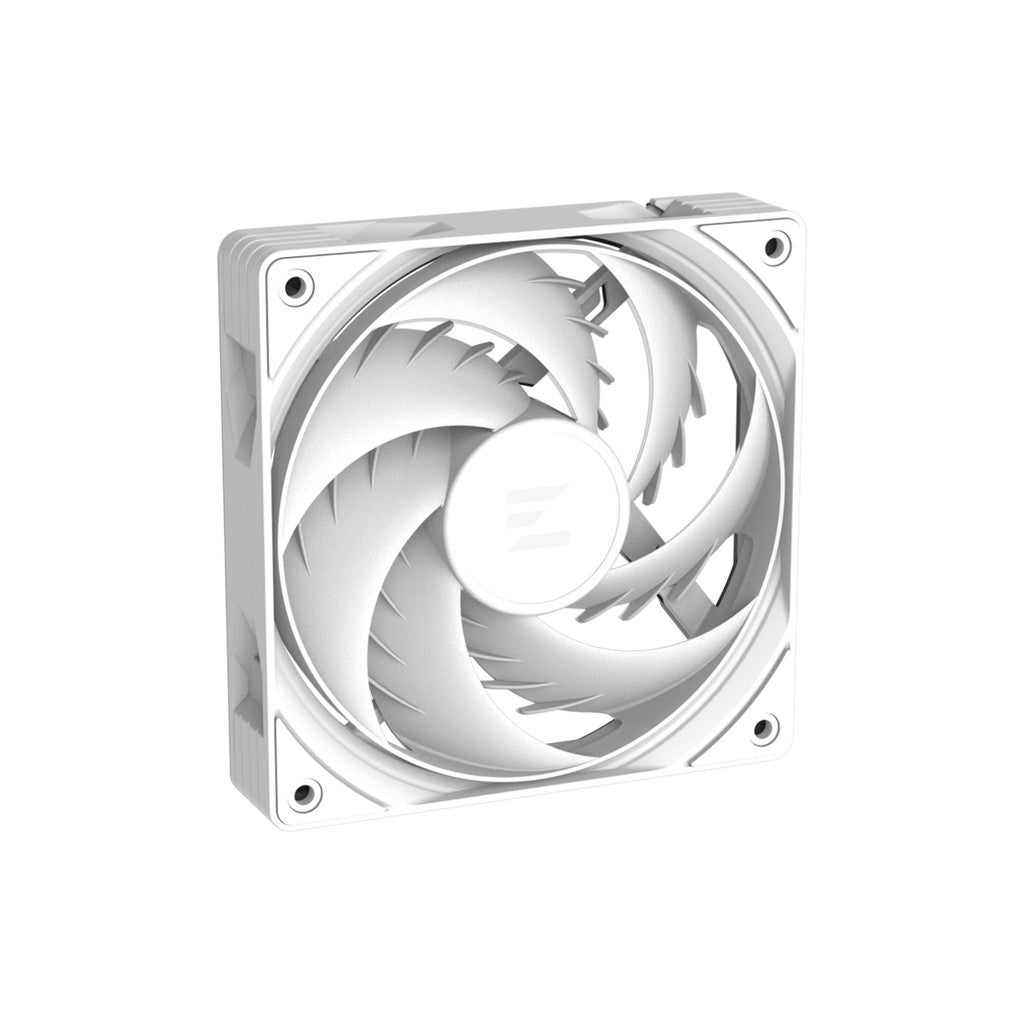

| Fan ▼ | ---------------------------------------- |
| Dimensions | 120 x 120 x 25 (H) mm |
| Bearing Type | Hydro Bearing |
| Speed | 600~2,000RPM ± 10% |
| Max.Noise Level | 29.7dB(A) ±10% |
| Max. Air Pressure | 2.01mmH₂O ±10% |
| Life Span | 40,000hours |
| Connector Type | 4-Pin |
| Control Method | PWM Control LED: Addressable RGB (3-Pin 5V) |
| Rated Voltage | 12V DC(LED : 5V) |
| Rated Current | 0.28A(LED : 0.36A) |
| Power Consumption | 3.36W(LED : 1.8W) |
| Thermal Compound | ZM STC-10 |
| Socket Compatibility | Intel : LGA 1851/1700/1200/115X AMD : AM5/AM4 |
READY for
Intel 15th Gen Processors & AM5
Socket Compatibility
Intel Socket : LGA1851/1700/1200/115X
AMD Socket : AM5/AM4
It is fully compatible with the latest intel’s
processors as well as AMD Ryzen.
Power management technology for each processor
is seamless with no compatibility issues.
Square Type IPS LCD Screen
- 2.73’’ IPS LCD Screen
- 320x320 Resolution
- 30Hz Refresh Rate
Crop your video and change
its aspect ratio
in a few simple steps
*ZM-OZ Supports Video Crop (320X320)
A : Mouse scroll zoom
B : Drag the capture area
C : Video timeline
① : Image rotation
② : Zoom in / Zoom out
③ : Cancel upload
④ : Save
⑤ : Start video recording
⑥ : Stop recording
⑦ : Recording time display
※ Max. recording time : 5 min.
Real-Time System Monitoring
Customize various themes using an intuitive
visual editing interface.
ZM-OZ software supports up to 7 ‘Display inform’.
Keep an eye on CPU temp, GPU clock, Ram load and
more all at a glance.
Comprehensive Fan Control
Up to 4 Fan control modes support.
(Silent / Normal / Performance / Custom)
* Custom mode
Set up custom fan curve profiles to adjust
fan speed based on system temperature.
* M/B PWM control
Automatically adjusts fan speed based on the user's
environmental noise level to provide optimal performance.
Various RGB mode Selections
The ARGB Channel,
Mode select for light effects and it matches
the cooler and case more perfectly.
Up to 7 modes of light effects with ARGB support,
color can be managed and synchronized
through the ZM-OZ software.
zalman OZ (Application Software)
Give visit ZALMAN official website
(https://www.zalman.com) to find the
corresponding product software and install it.
(Supported operating system : Win. 10 and above.)
(System Monitoring / LCD Display / LCD Display-Upload / Cooling Profile / RGB Effect / Settings)
Supports Motherboard’s
Addressable RGB Sync
ZM-OZ HUB Controller
- PWM & ARGB Fan Max. 6
- SATA Cable
- M/B RGB software

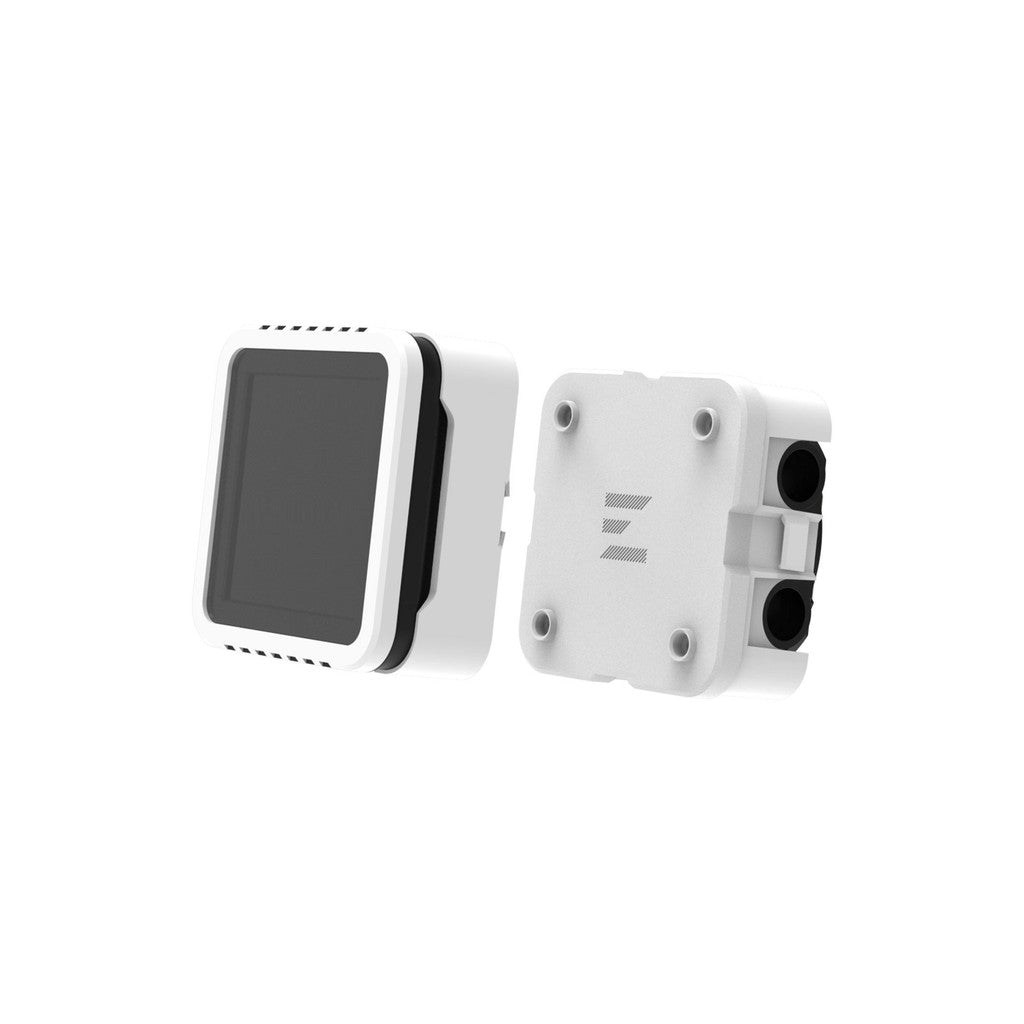

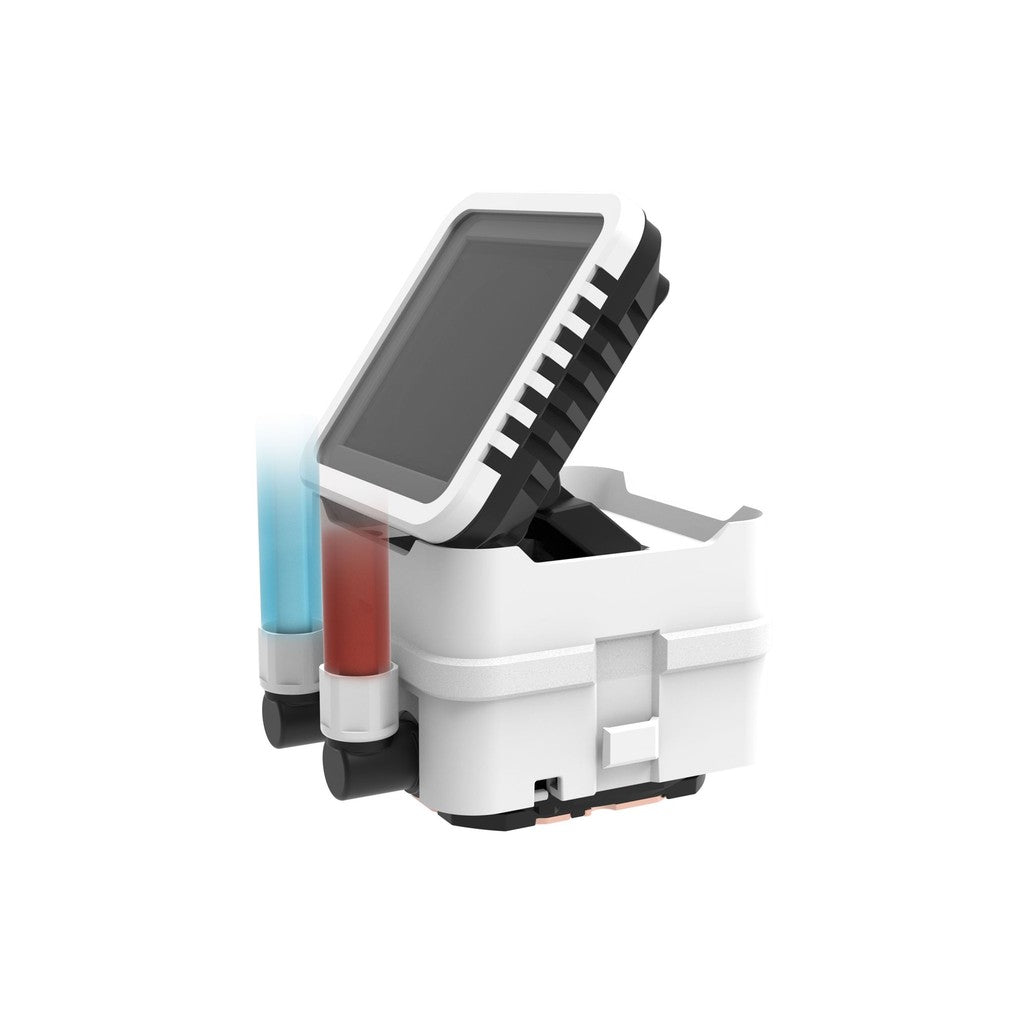

Angle-Adjustable Magnetic Pump Cover
It features an angle-adjustable design and
a magnet for easy attachment and detachment.
