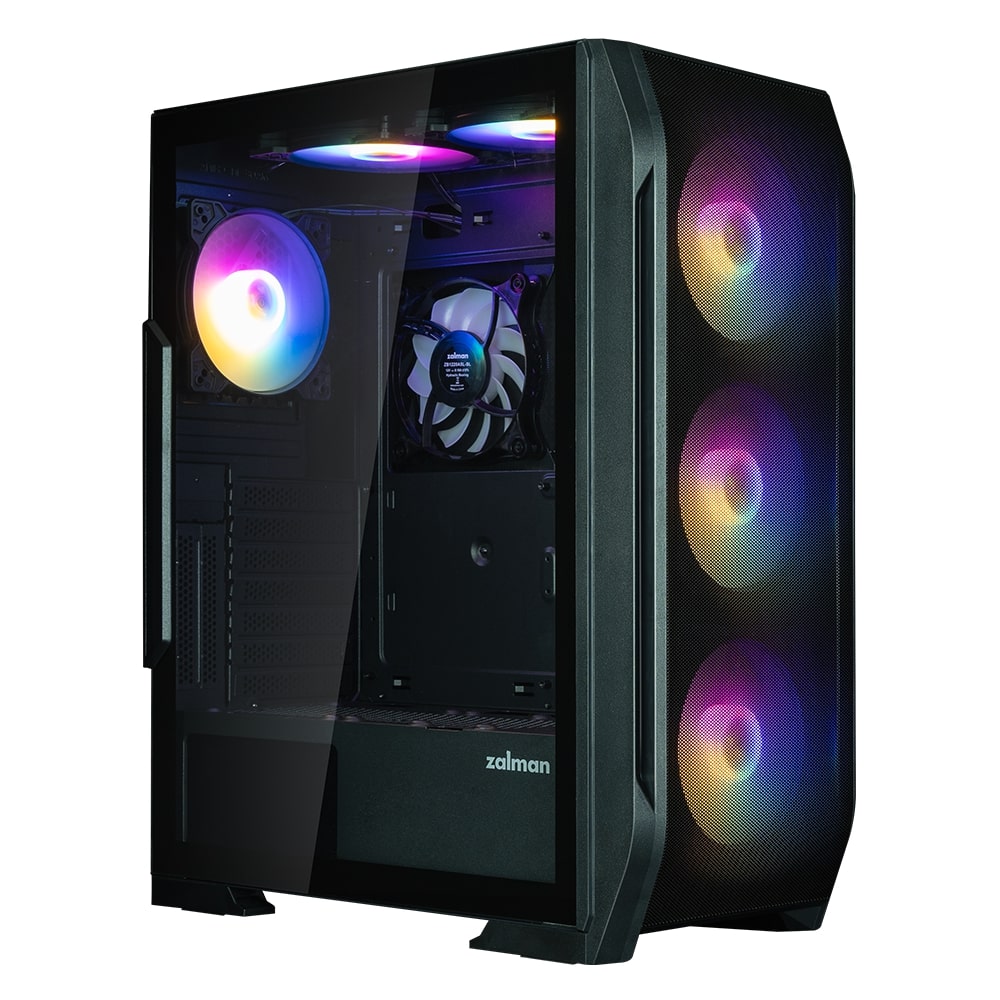

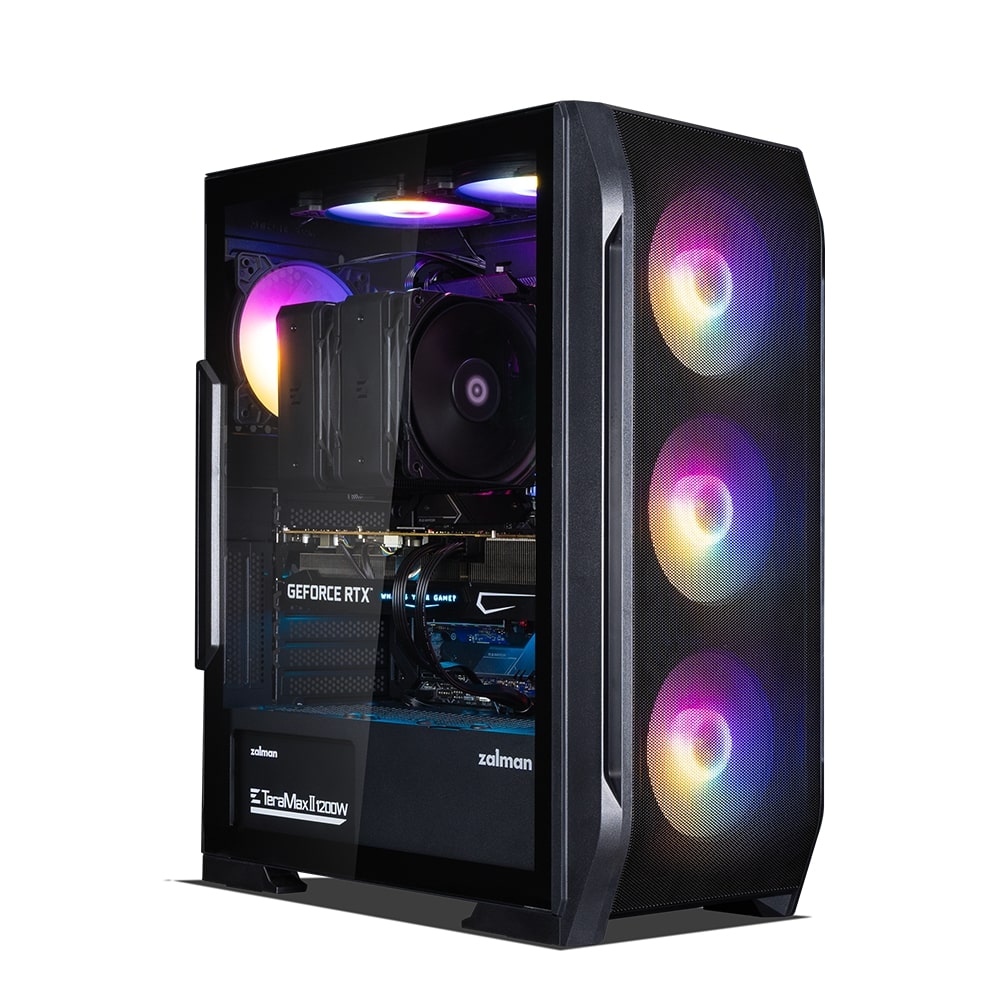

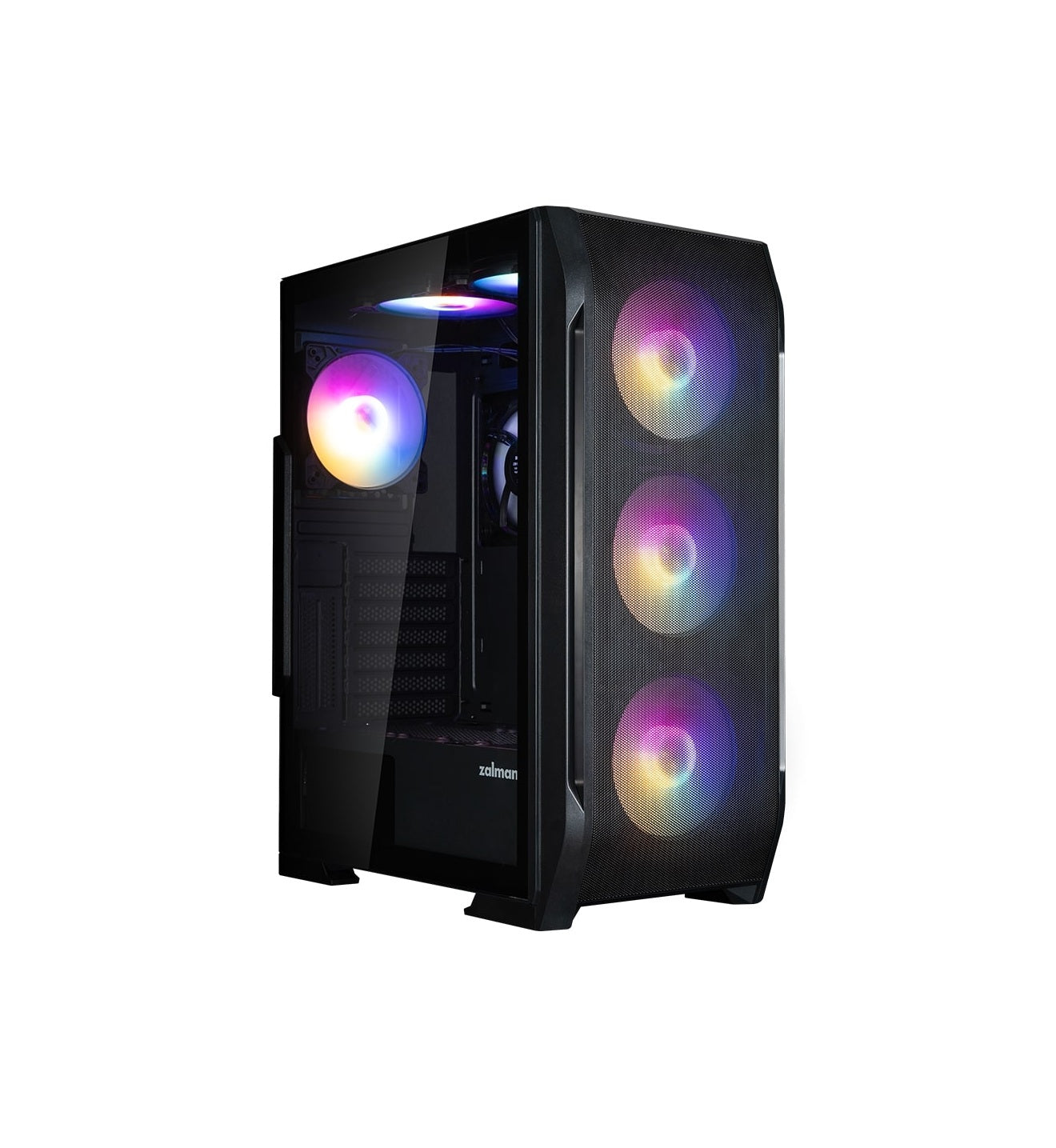

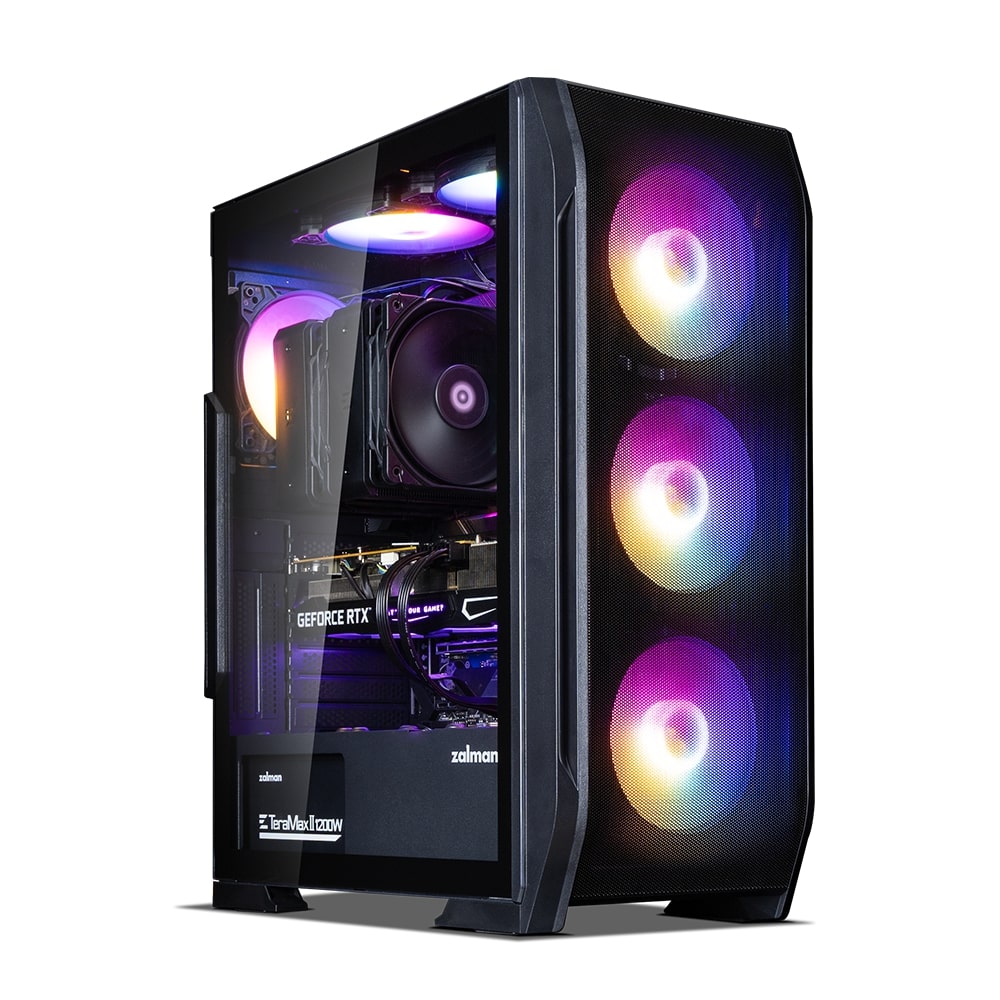

Zalman N7 Plus V2 ATX Black Mid Tower Case
Zalman N7 Plus V2 ATX Black Mid Tower Case
Couldn't load pickup availability
| Model | N7 PLUS V2 |
|---|---|
| Case Form Factor | ATX Mid-Tower |
| Materials | Steel, Plastic, Tempered Glass |
| Weight | 5.7kg |
| Dimensions | 402(D) x 210(W) x 490(H)mm |
| Motherboard Support | ATX/mATX / Mini-ITX |
| Fan Support | Front : 3 x 120mm / 3 x 140mm Top : 2 x 120mm / 2 x 140mm Rear : 1 x 120mm Bottom : 2 x 120mm Side : 1 x 120mm (H:20mm) |
| Fan(s) Included | Front : 3 x 120mm (RGB LED Effect) Top : 2 x 120mm (RGB LED Effect) Rear : 1 x 120mm (RGB LED Effect) Side : 1 x 120mm(Black Fan) |
| Radiator Support | Front : 120mm / 140mm / 240mm / 280mm / 360mm Top : 120mm / 140mm / 240mm / 280mm Rear : 120mm |
| Max. PSU Length | 180mm |
| Max. VGA Length | 340mm |
| Max. CPU Cooler Height | 160mm |
| Drive Bays | 1 x Combo (3.5" or 2.5", 1 x 3.5"), 3 x 2.5“ |
| PCI Expansion Slots | 7 pcs |
| I/O Ports | 1 x Headphones, 1 x MIC, 2 x USB2.0, 1 x USB3.0, Power Button, Reset Button |

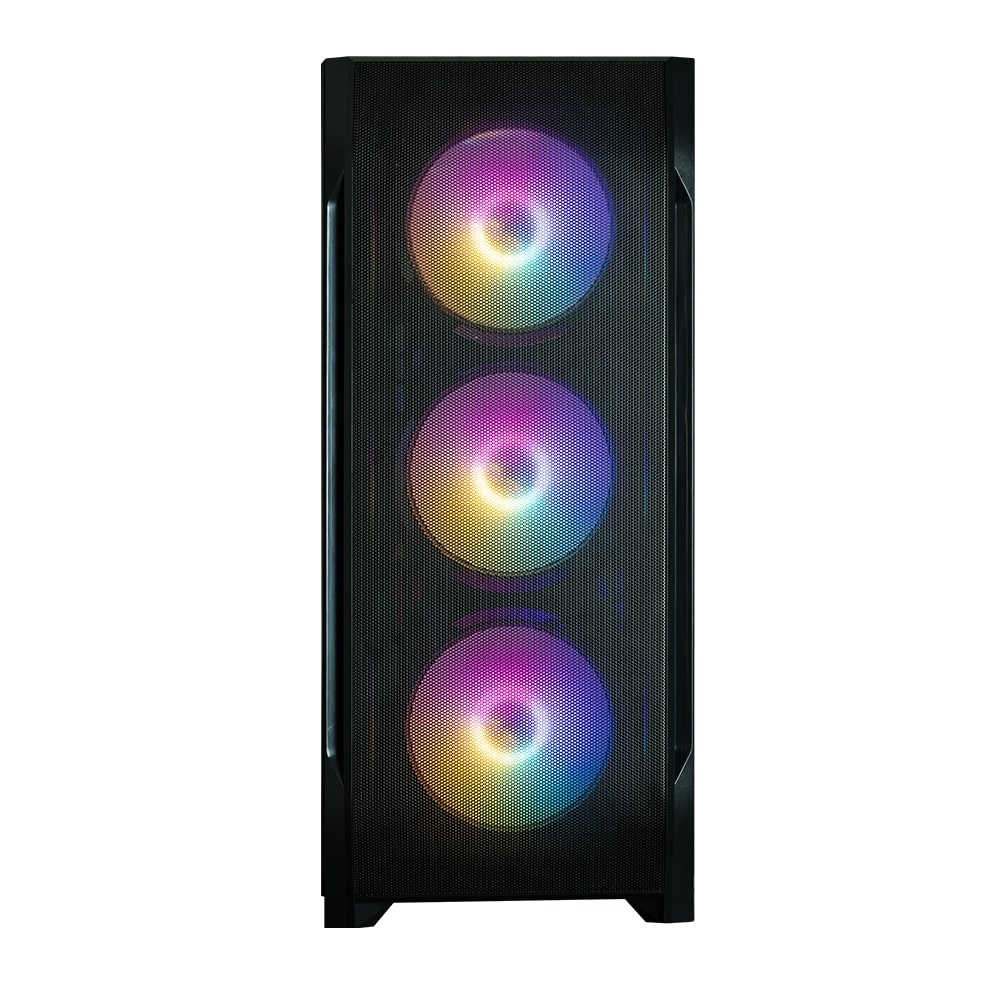

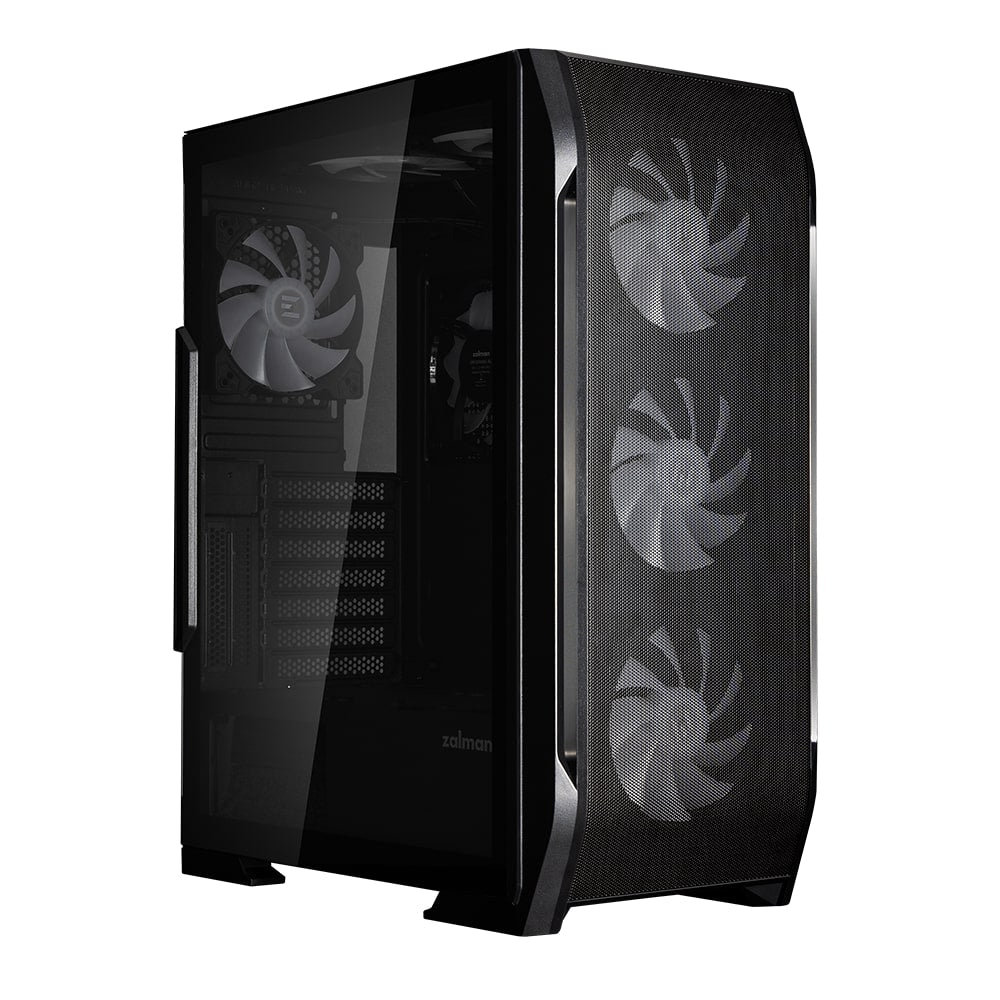

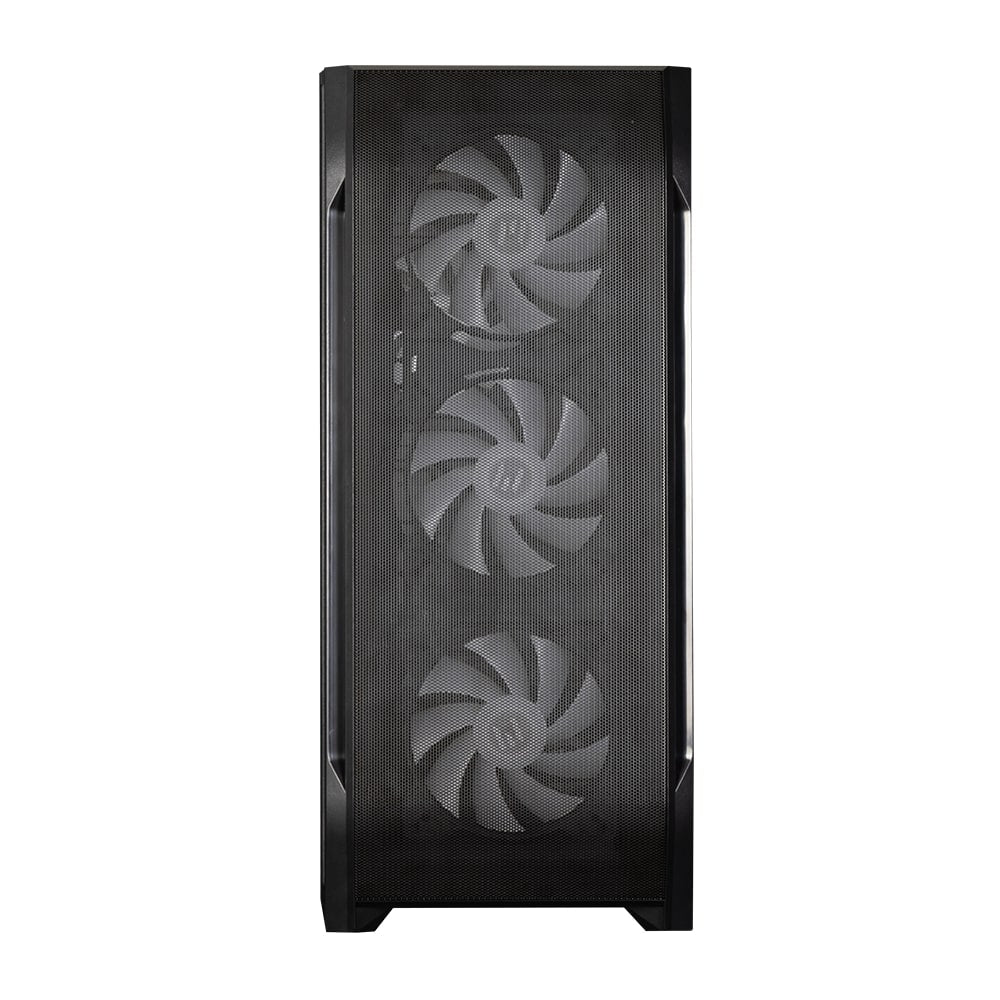

High-Performance Front Mesh Design
Front mesh panel and RGB fans provide optimal airflow and
stunning RGB lighting effects

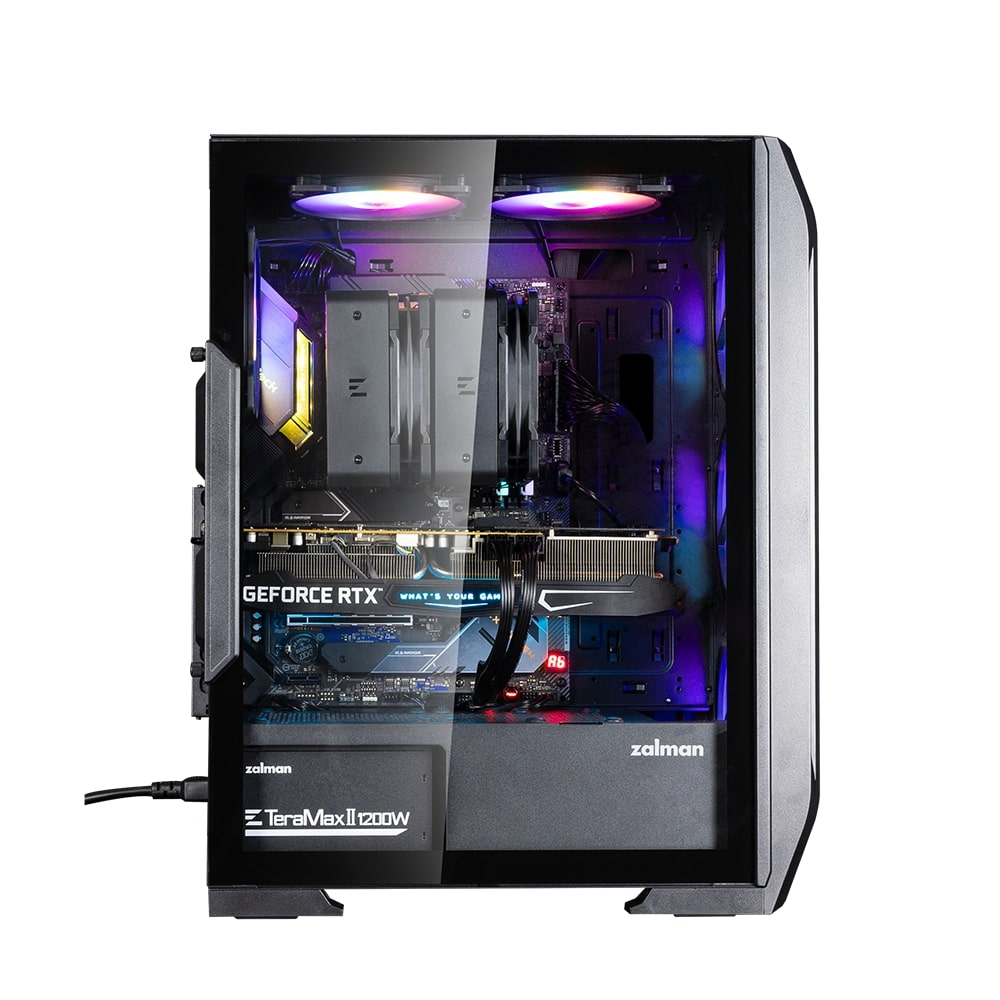

Premium Tempered Glass
Premium Tempered Glass with reinforced mounts
and a detachable handle ensures safety and convenience

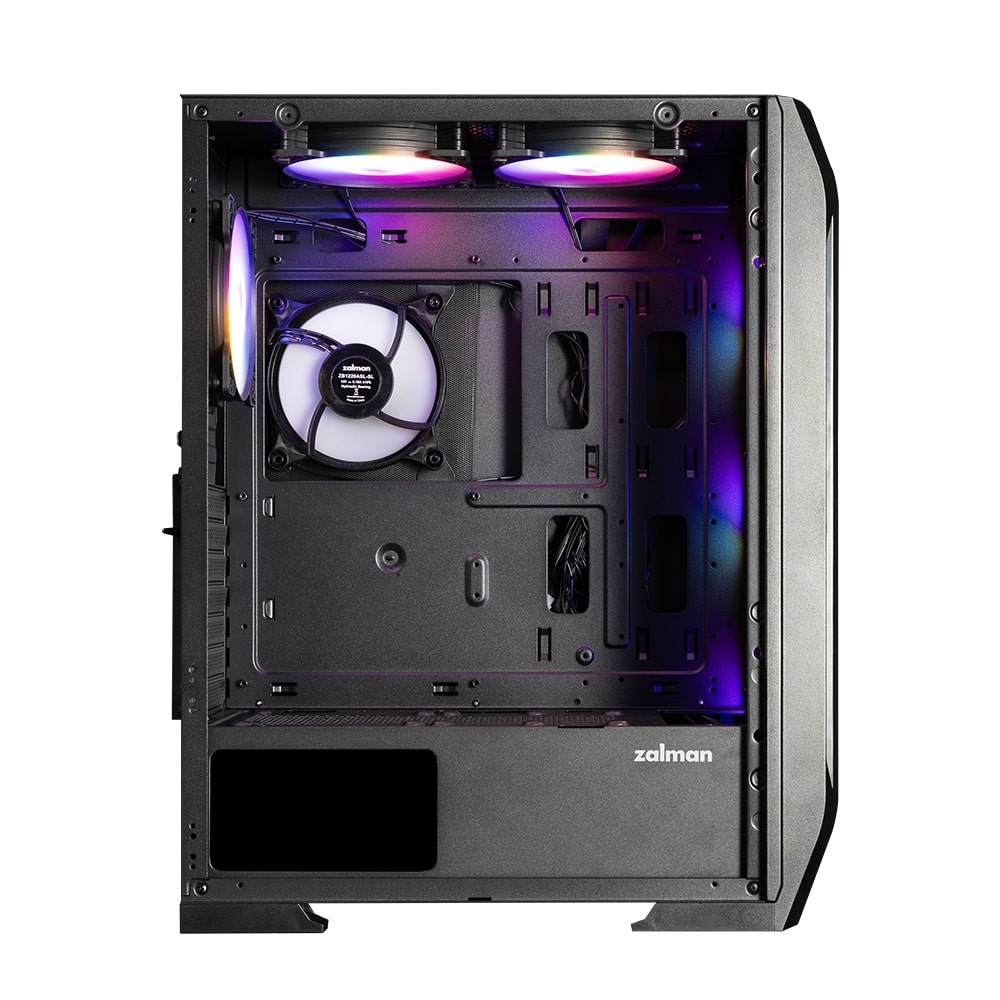

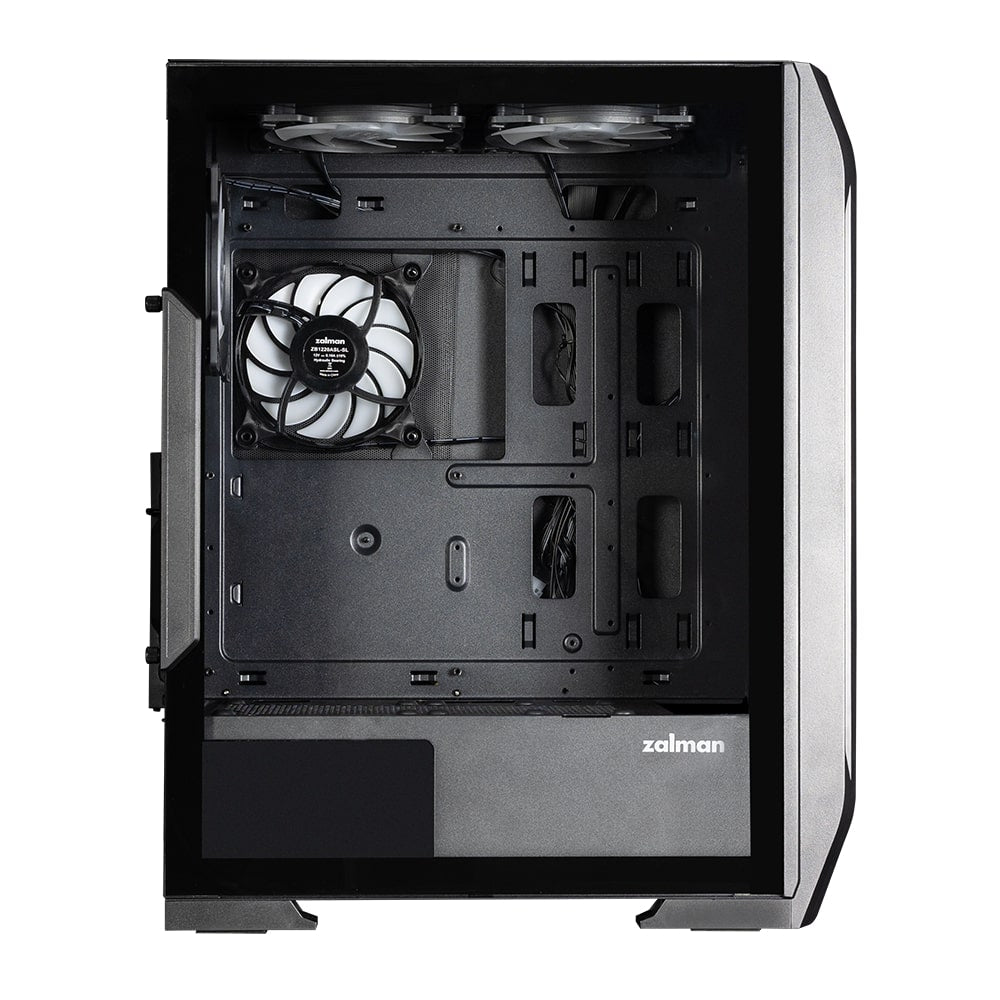

Efficient cooling for Motherboard Stability
Focused airflow towards the CPU and VRM
thanks to a built-in 120mm fan and side vent design
Cooling-Oriented Design for
Enhanced Thermal Efficiency
Delivers both exceptional cooling and vibrant RGB lighting
with 7 pre-installed fans and a full mesh front panel
Front : 3 x 120mm Rainbow RGB Fan
Top : 2 x 120mm Rainbow RGB Fan
Rear : 1 x 120mm Rainbow RGB Fan
Side : 1 x 120mm Black Fan

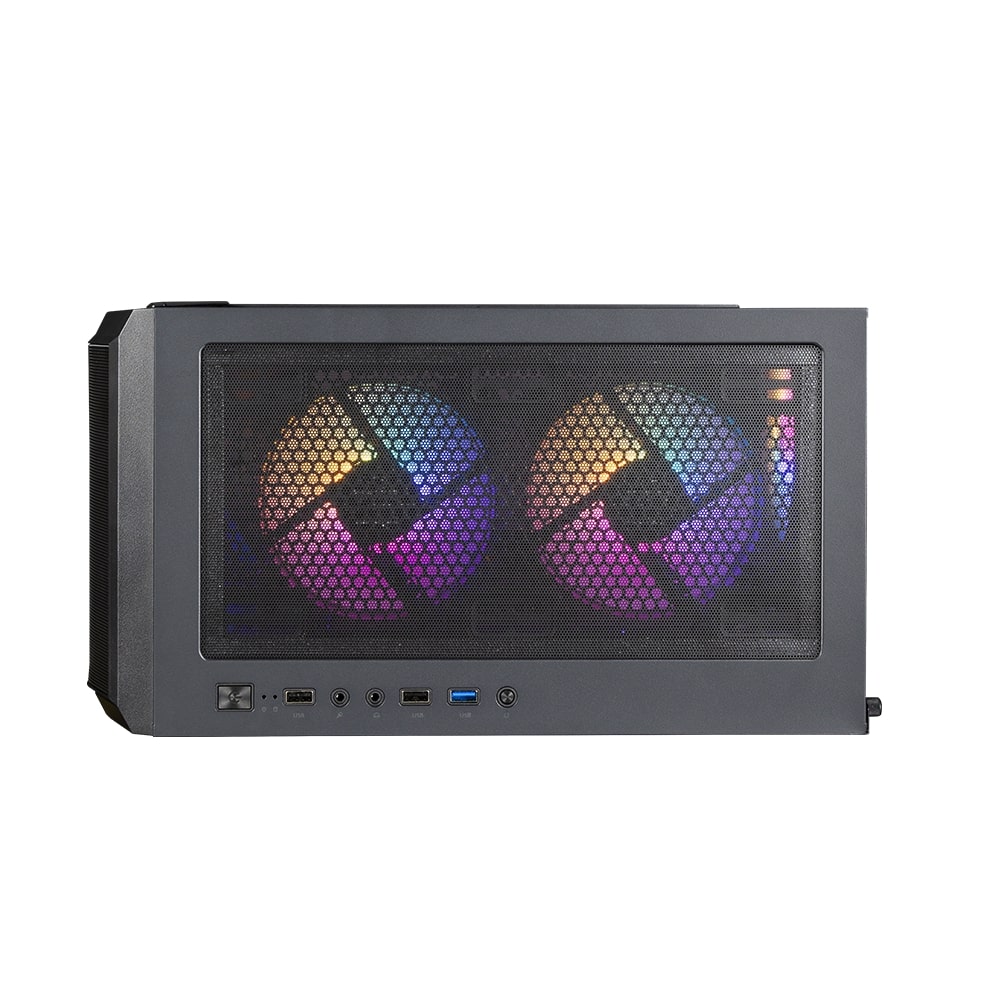

Easily accessible top I/O ports
Reset & LED Control
Reset Button: Connect to motherboard
LED Control Button: Connect to Rear Master fan LED 2-pin
Fan & LED Control Mode
1. Fan Speed : 100% / LED Brightness :100%
2. Fan Speed : 70% / LED Brightness: 70%
3. Fan Speed : 70% / LED Brightness: Off
4. Fan Speed : Off / LED Brightness: Off
Top/Bottom Magnetic Dust Filter
Protects your components and provides
unobstructed airflow through dust filtration
High Cooling Performance
Designed for optimal Air Intake
with Air Holes at the Side Panel
Enhanced Stability with Foot Rest
& Anti-Slip Rubber Pads
Elevated foot stands with anti-slip pads provide
stable support and optimized airflow for bottom-mounted PSU
Professional Cable Management
Easily route your major cables through the case.
A professional-looking system with a roomy 20mm
of space behind the motherboard for all of your cables.
Top/Front / Rear Fan Specifications
Dimensions : 120 x 120 x 25(H)mm
Rated Voltage : DC 12V
Rated Current : 0.196A
Bearing Type : Hydraulic Bearing
Noise Level : 23dB(A)
Max Air Flow : 35CFM
Max Fan Speed : 1,000RPM ±10%
Connector : IDE-4 Pin
Side Fan Specifications
Dimensions : 120 x 120 x 25(H)mm
Rated Voltage : DC 12V
Bearing Type : Hydraulic Bearing
Noise Level : 21.5dB(A)
Max Air Flow : 32CFM
Fan Support
Fans Included
Fans Support
Radiator Configuration
Radiator Support
Rear Layout
① Side Thumbscrews
② Rear 120mm ARGB Fan (Included)
③ Side Handle
④ 7 PCI Slots
⑤ PSU Space
