Zalman

Zalman P10 Black mATX Mini Tower Case

Zalman P10 Black mATX Mini Tower Case

Regular price $95.00
Regular price Sale price $95.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Model P10 BLACK
Case Form Factor Micro-ATX Mini-Tower
Materials Steel, Plastic , Tempered Glass
Weight 6.1kg
Dimensions 418(D) x 216(W) x 422(H)mm
Motherboard Support mATX / Mini-ITX
Fan Support Top : 3 x 120mm / 2 x 140mm
Rear : 1 x 120mm
Bottom : 3 x 120mm
Fan(s) Included Rear : 1 x 120mm(ZM_AF120 ARGB)
Radiator Support Top : 120mm / 240mm
Rear : 120mm
Max. PSU Length 175mm
Max. VGA Length 384mm
Max. CPU Cooler Height 173mm
Drive Bays 2 x Combo(3.5'' or 2.5'',
1 x Guide toolless), 1 x 2.5''
PCI Expansion Slots 5 pcs
I/O Ports Power Button, Reset Button, Microphone+Headphone, Power LED,
1 x USB3.0, 1 x USB Type-C

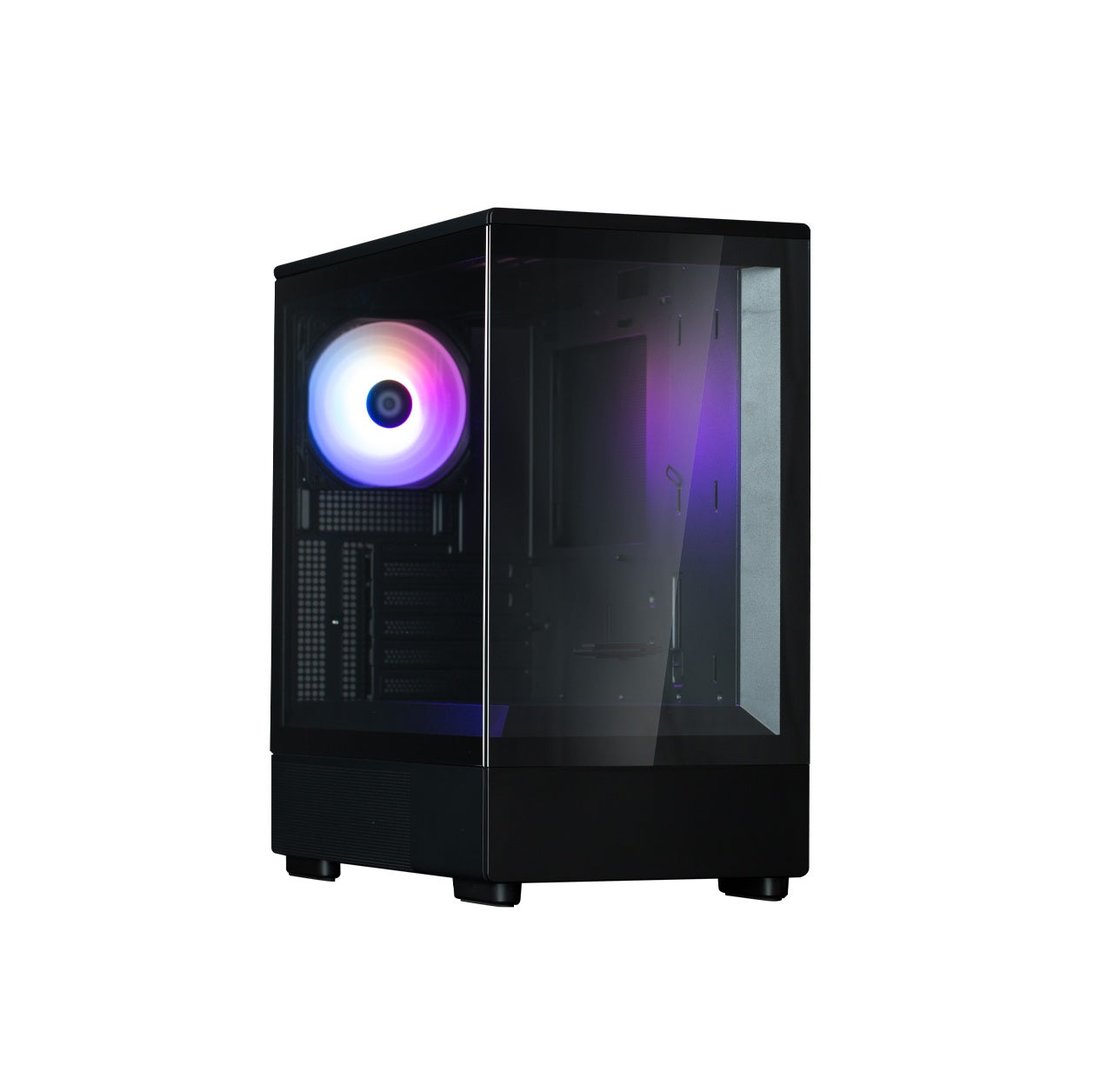

Modern & Clean Aesthetic



P10 comes with a sleek and modern design








Unrestricted Cooling Potential

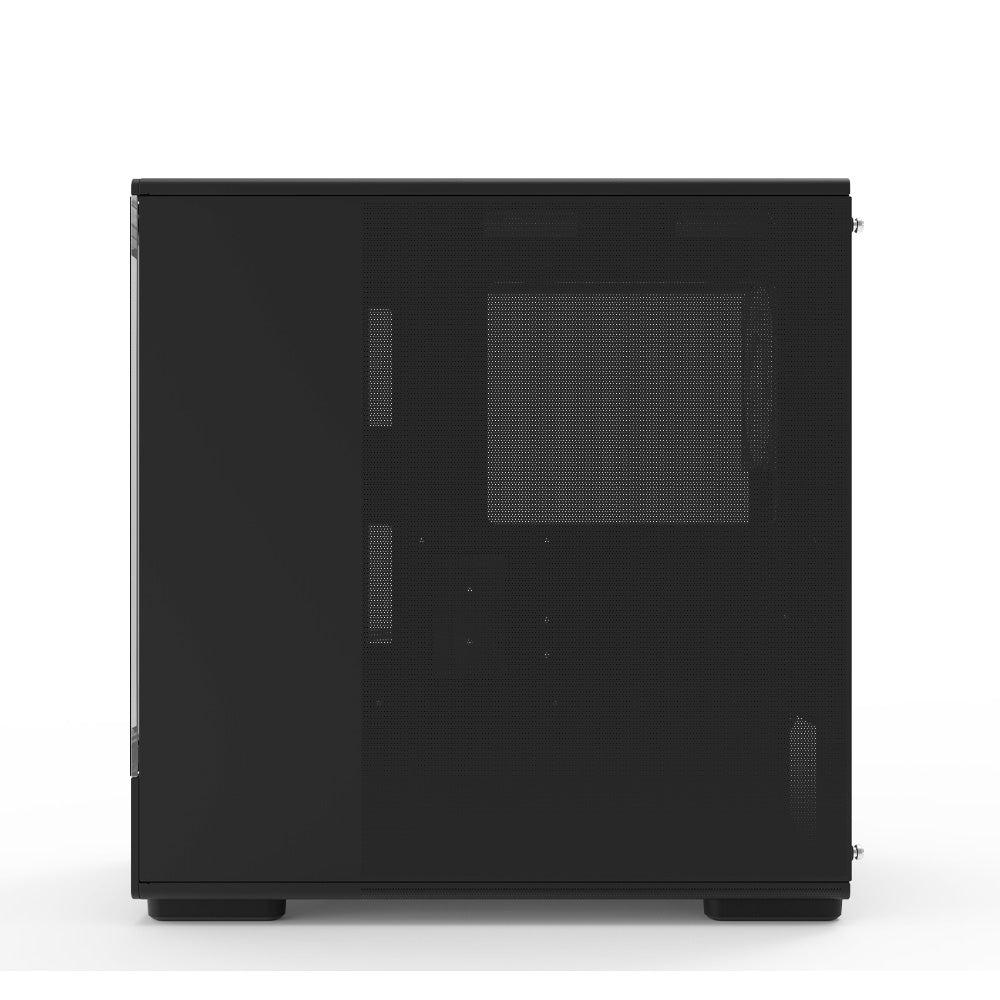

Top and side panels enhances ventilation and

additional airflow to system

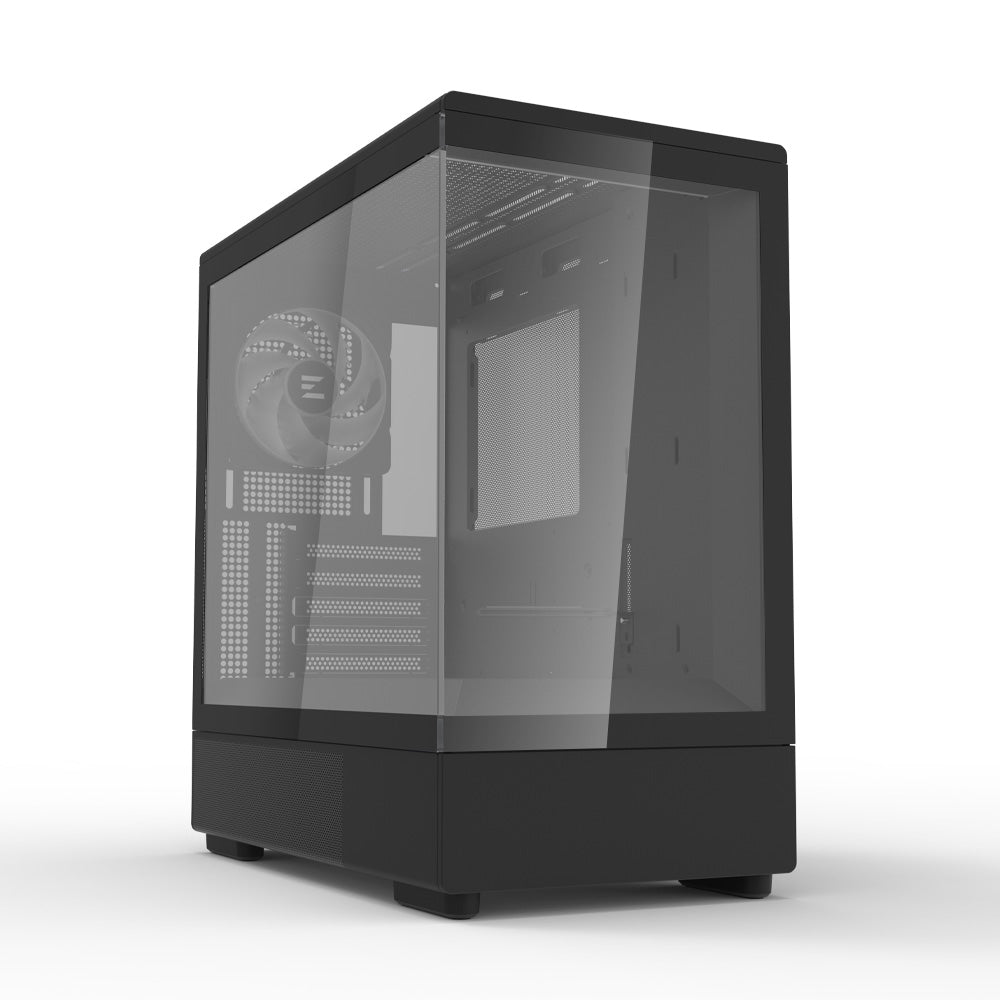

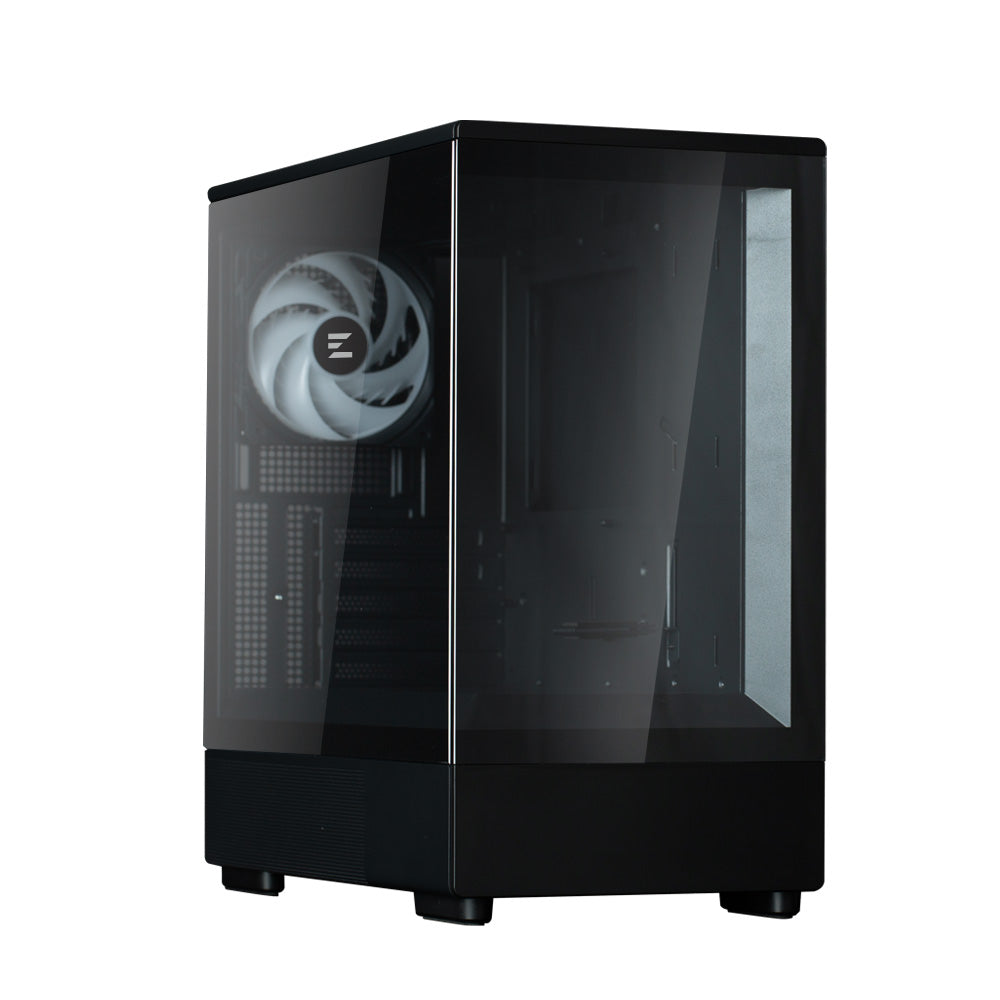

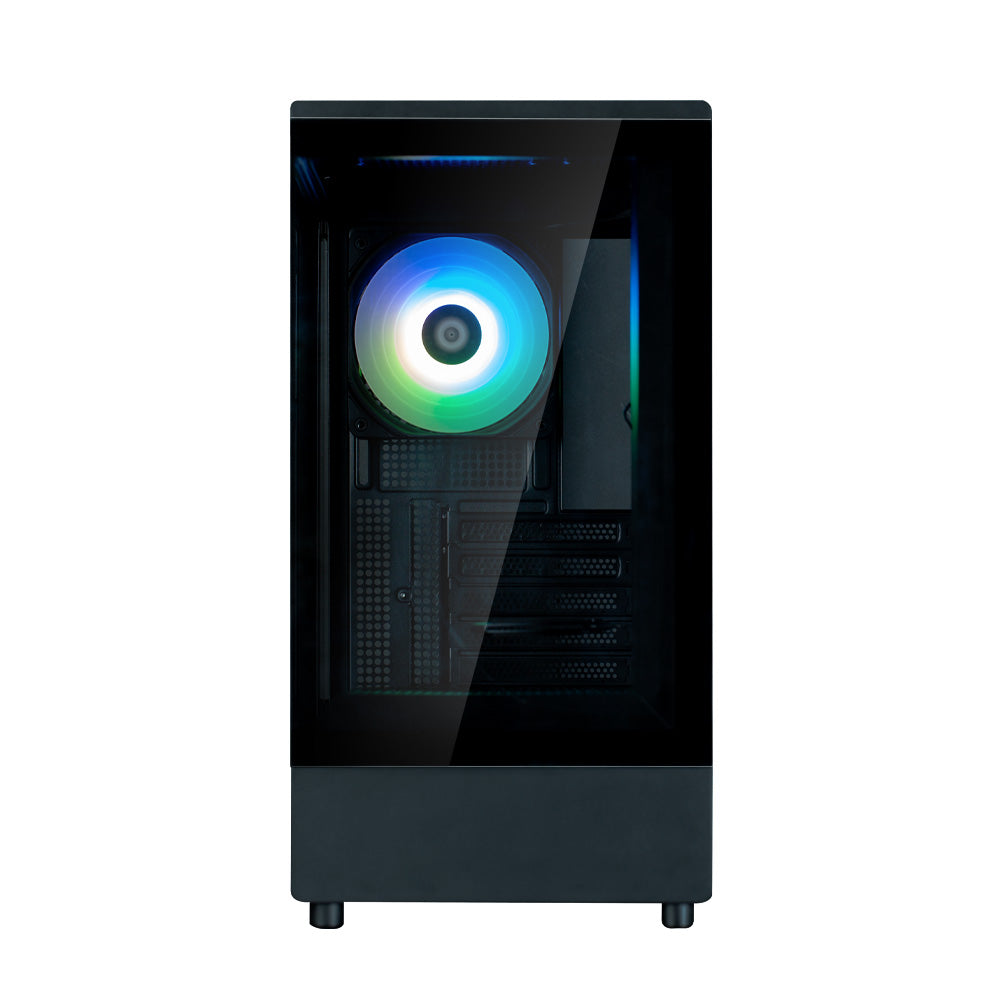

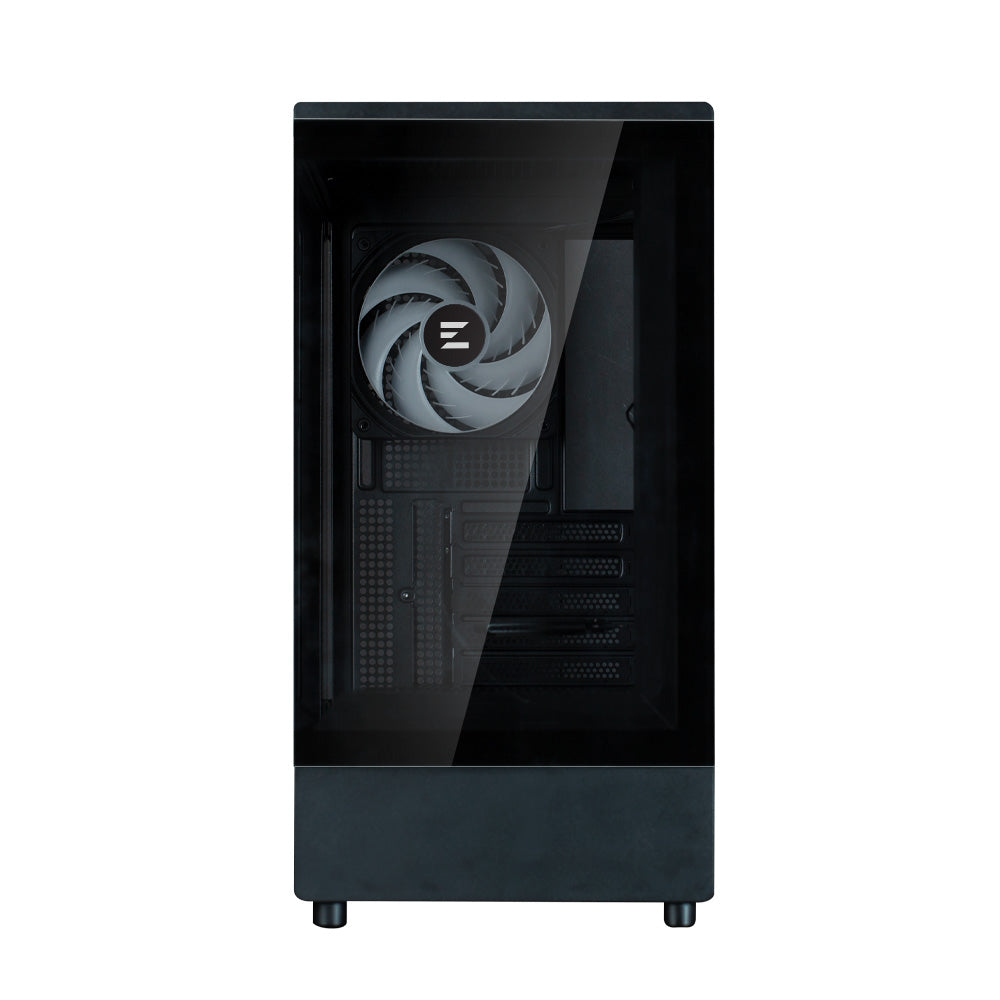

Panoramic View with Seamless Tempered Glasses



Two frameless front and side tempered glasses showing unique PC build



Tool-Free Tempered Glasses

The front and side panels can be easily and completely removed for convenient

access to PC components



- Easy panel management with groove fixing structure at the bottom of the tempered glass








- Power



- Reset



- Microphone / Headphone Jack



- Power LED



- USB 3.0



- USB Type C

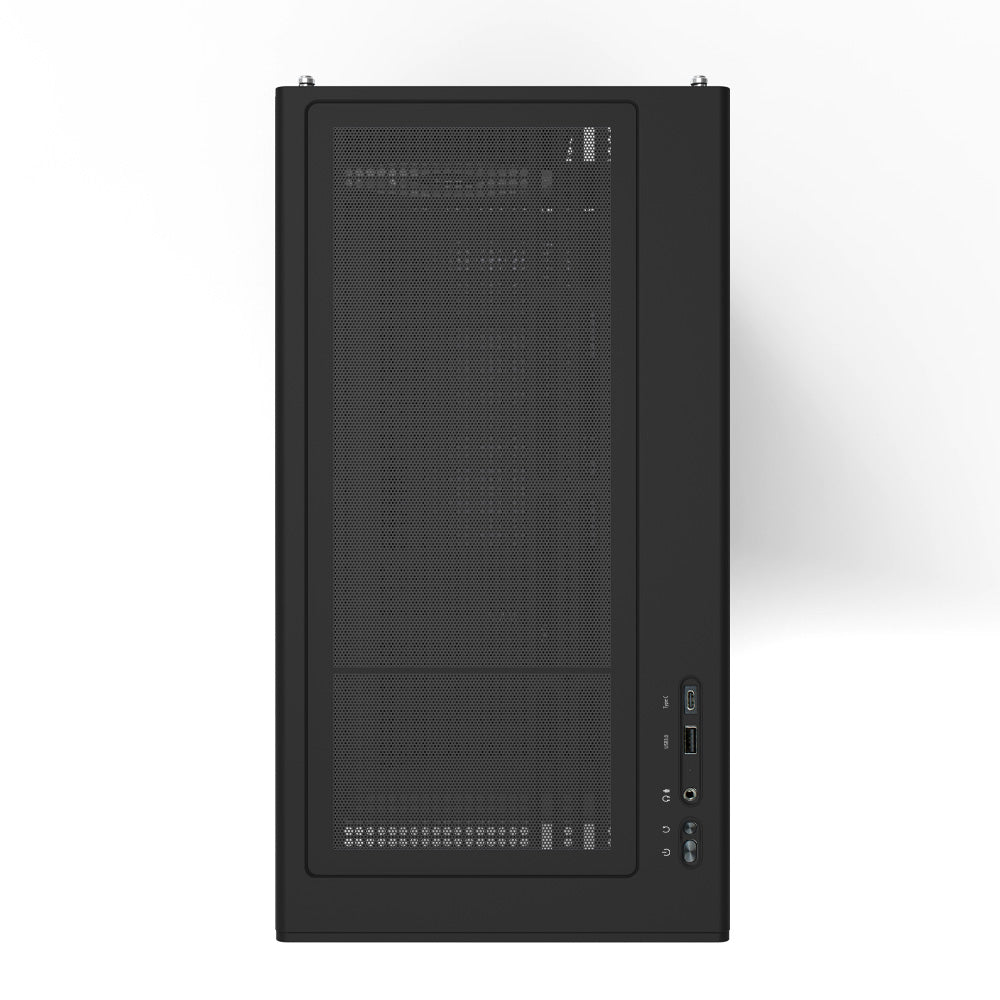

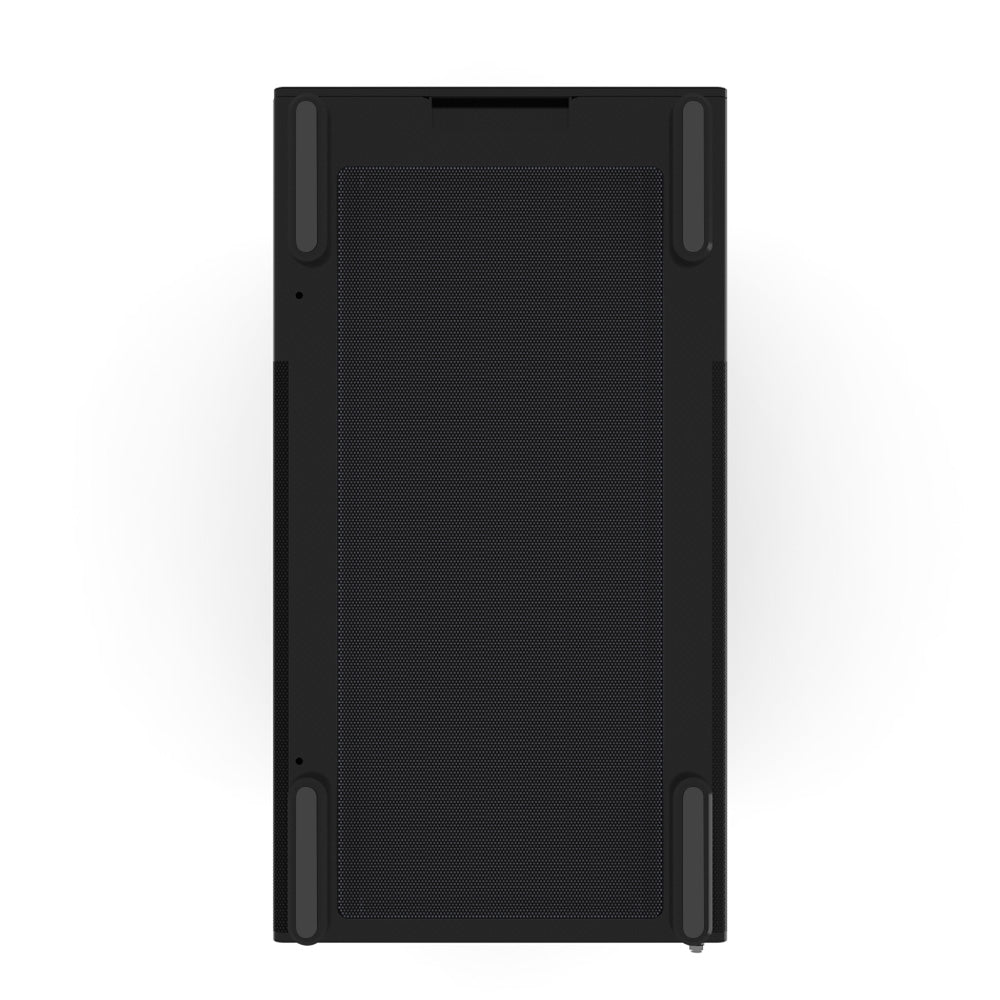

Top/Bottom Magnetic Dust Filter



Protects your components and provides unobstructed

airflow through dust filtration








Zalman AF120 Annular Fan with

Shark Fin Blades



Unlike regular cooling fan, specially designed

Zalman AF120 Annular FAN with Shark fin blade

provides minimum resistance to airflow allowing

minimum operation noise.



Fan) ZM-AF120 ARGB

- Dimensions : 120 x 120 x 26(T)mm

- Rated Voltage : 12V DC  / LED : 5V DC

- Fan Speed : 600~2,000RPM ±10%

- Bearing Type : Hydro Bearing

- Connector : PWM 4pin / 5V 3pin(Addressable RGB)








Motherboard Support

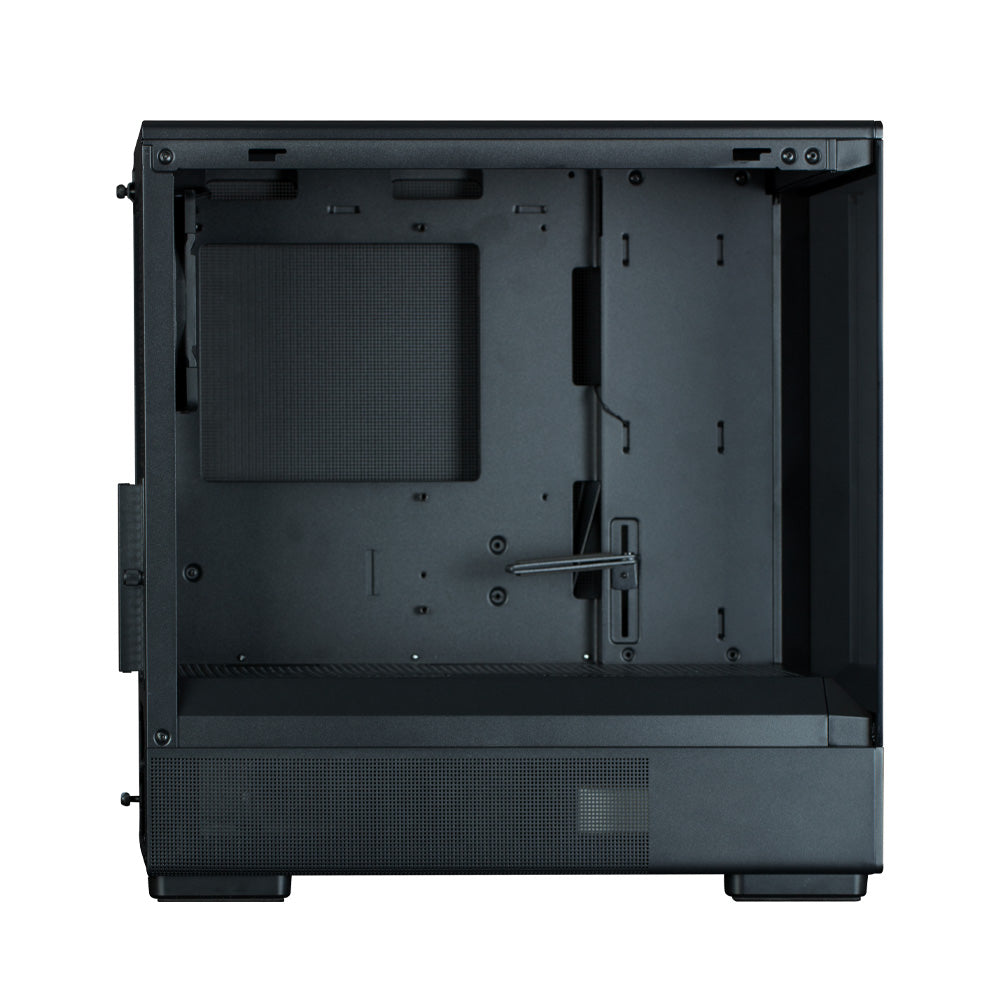

Intuitive Cable Management Layout



Convenient cable management layout and space

makes it easier than ever to organize messy cables

for a clean look








GPU Support Bracket Included
With Height Adjustment



Slide up and Down to position GPU precisely








- Max CPU Cooler Height : 173mm

- Max VGA Card Length : 384mm

- MAX PSU Length : 175mm

- Drive Memory Support : HDD x 2 / SSD x 3








Radiator Configuration



Top : 120mm / 240mm

Rear : 120mm








Fan Support



Top : 3 x 120mm / 2 x 140mm

Rear : 1 x 120mm

Bottom : 3 x 120mm

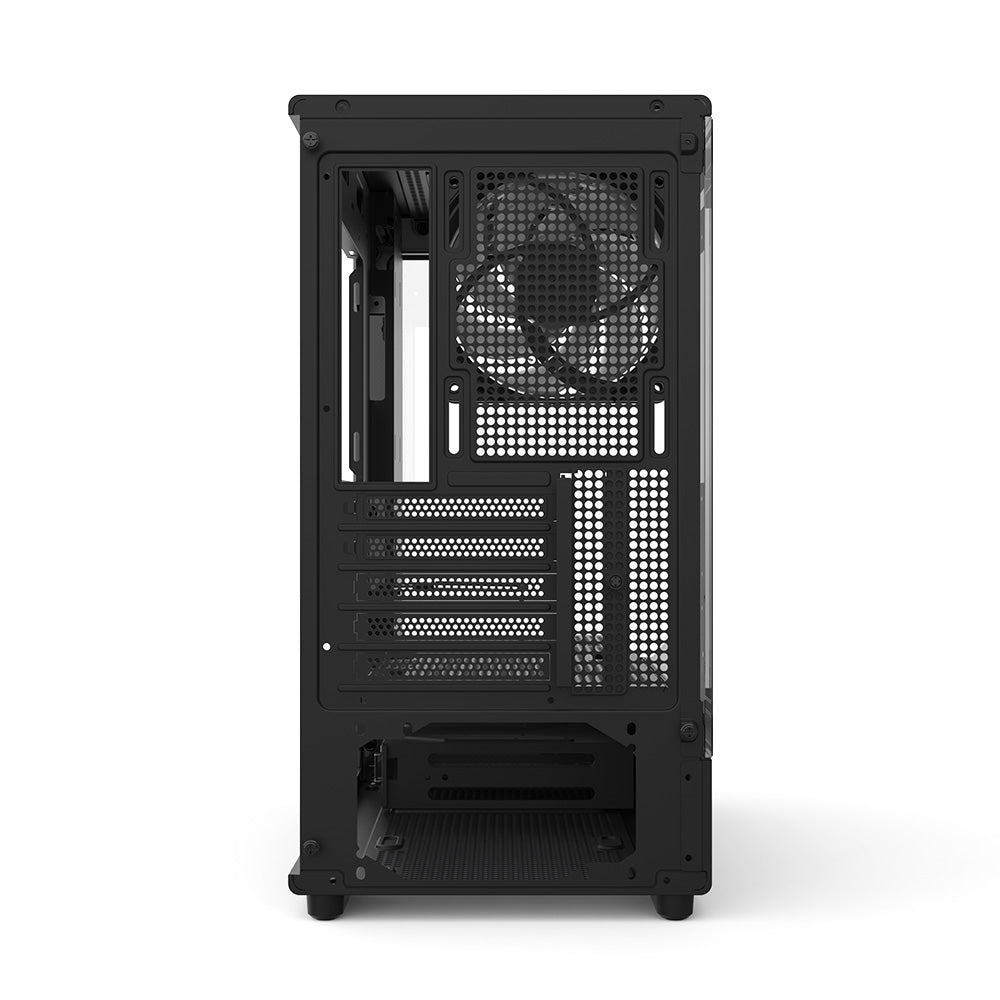

Rear Layout



1. Rear hand screw



2. Rear 120mm ARGB fan (Pre-installed)



3. PCI slots x 5



4. Rear Air Vent



5. PSU Slot
