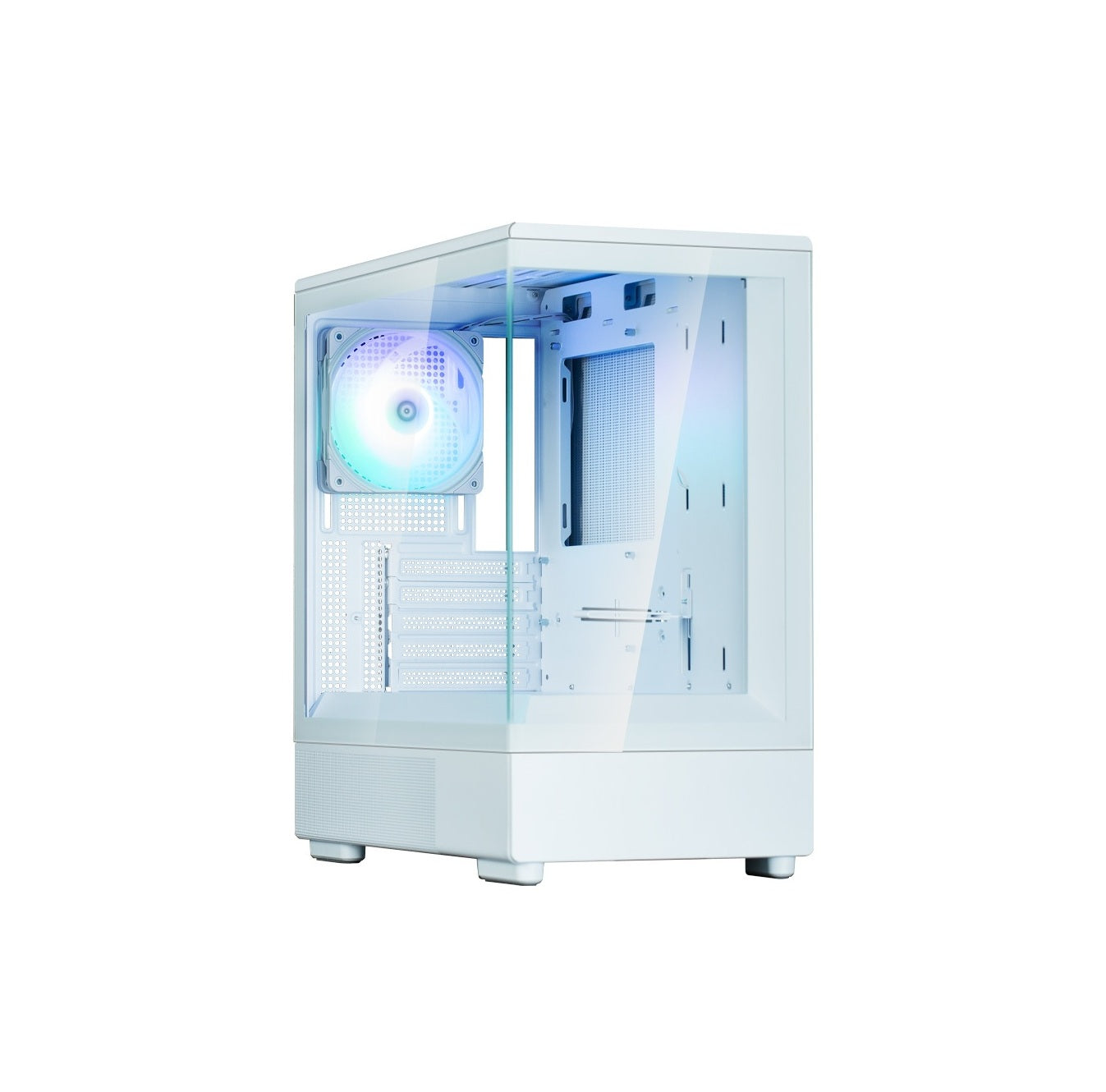

Zalman P10 White mATX Mini Tower Case
Zalman P10 White mATX Mini Tower Case
Couldn't load pickup availability
| Model | P10 WHITE |
|---|---|
| Case Form Factor | Micro-ATX Mini-Tower |
| Materials | Steel, Plastic , Tempered Glass |
| Weight | 6.1kg |
| Dimensions | 418(D) x 216(W) x 422(H)mm |
| Motherboard Support | mATX / Mini-ITX |
| Fan Support | Top : 3 x 120mm / 2 x 140mm Rear : 1 x 120mm Bottom : 3 x 120mm |
| Fan(s) Included | Rear : 1 x 120mm(ZM_AF120 ARGB) |
| Radiator Support | Top : 120mm / 240mm Rear : 120mm |
| Max. PSU Length | 175mm |
| Max. VGA Length | 384mm |
| Max. CPU Cooler Height | 173mm |
| Drive Bays | 2 x Combo(3.5'' or 2.5'', 1 x Guide toolless), 1 x 2.5'' |
| PCI Expansion Slots | 5 pcs |
| I/O Ports | Power Button, Reset Button, Microphone+Headphone, Power LED, 1 x USB3.0, 1 x USB Type-C |
Modern & Clean Aesthetic
P10 comes with a sleek and modern design

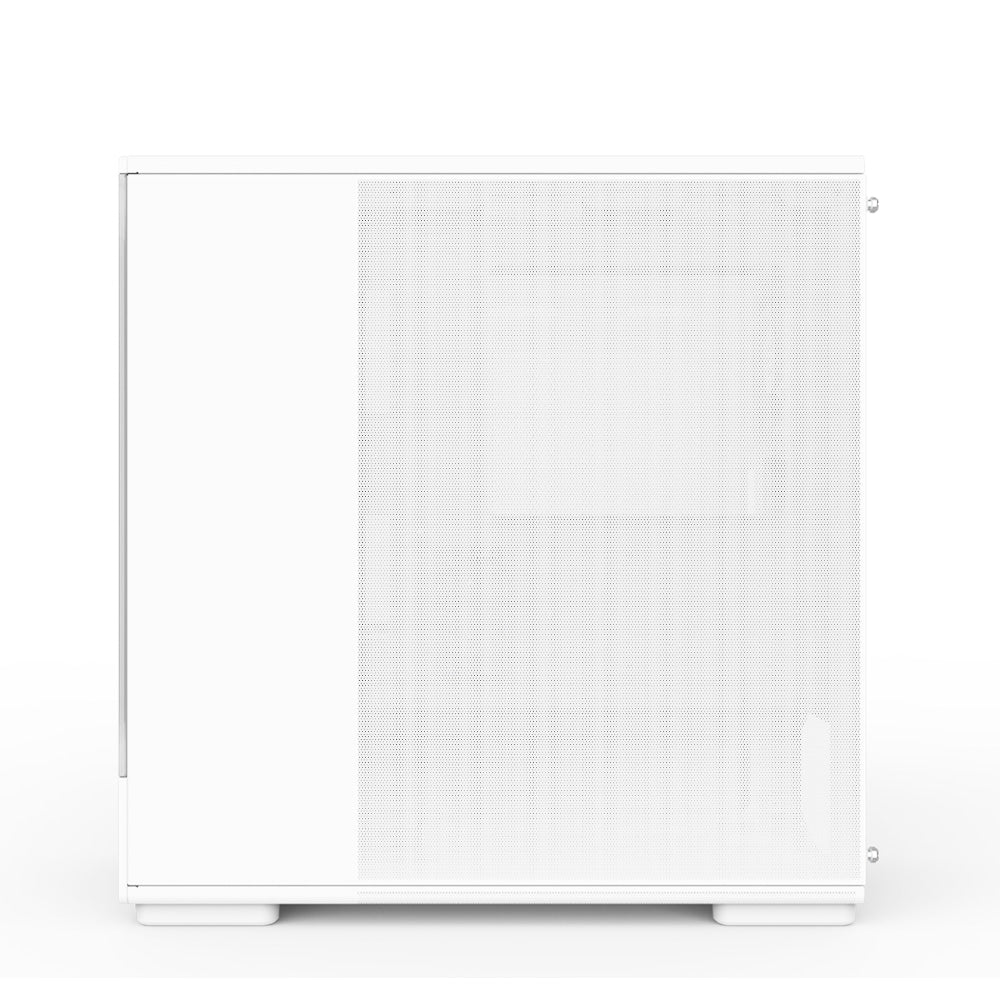

Unrestricted Cooling Potential
Top and side panels enhances ventilation and
additional airflow to system

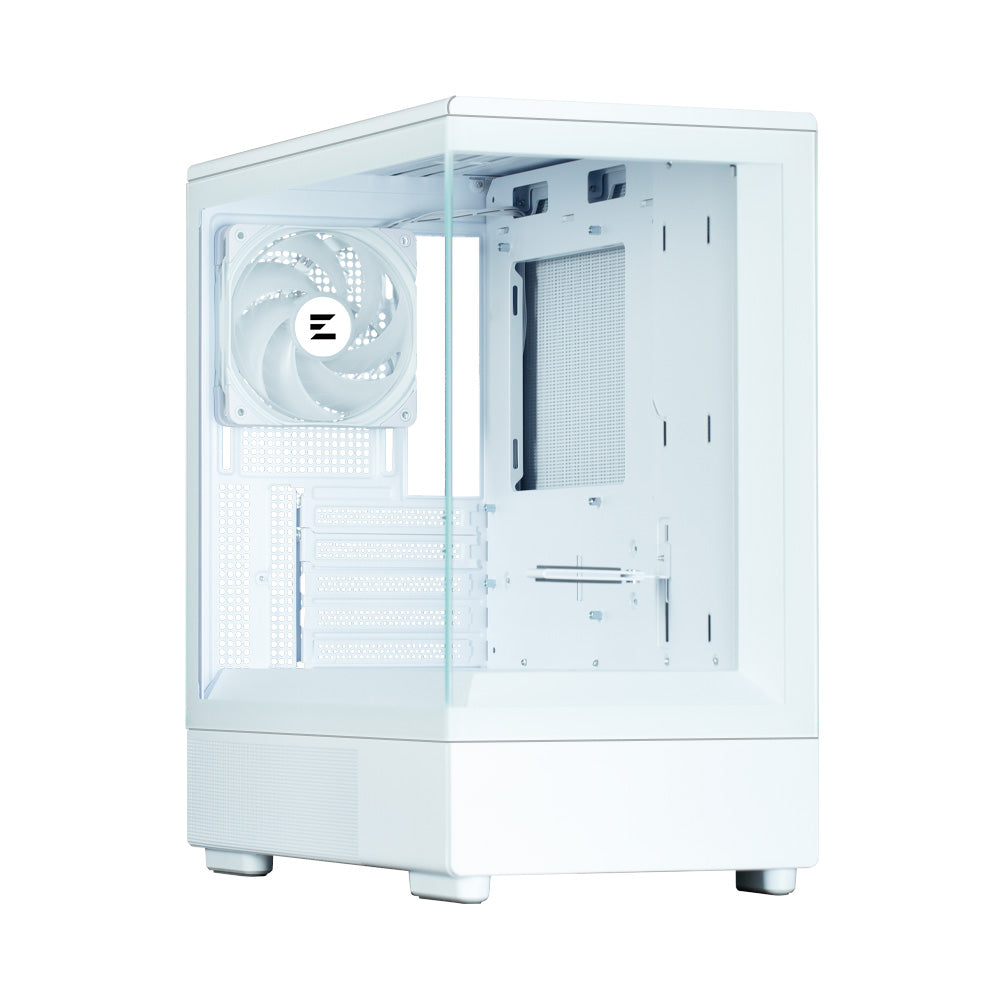

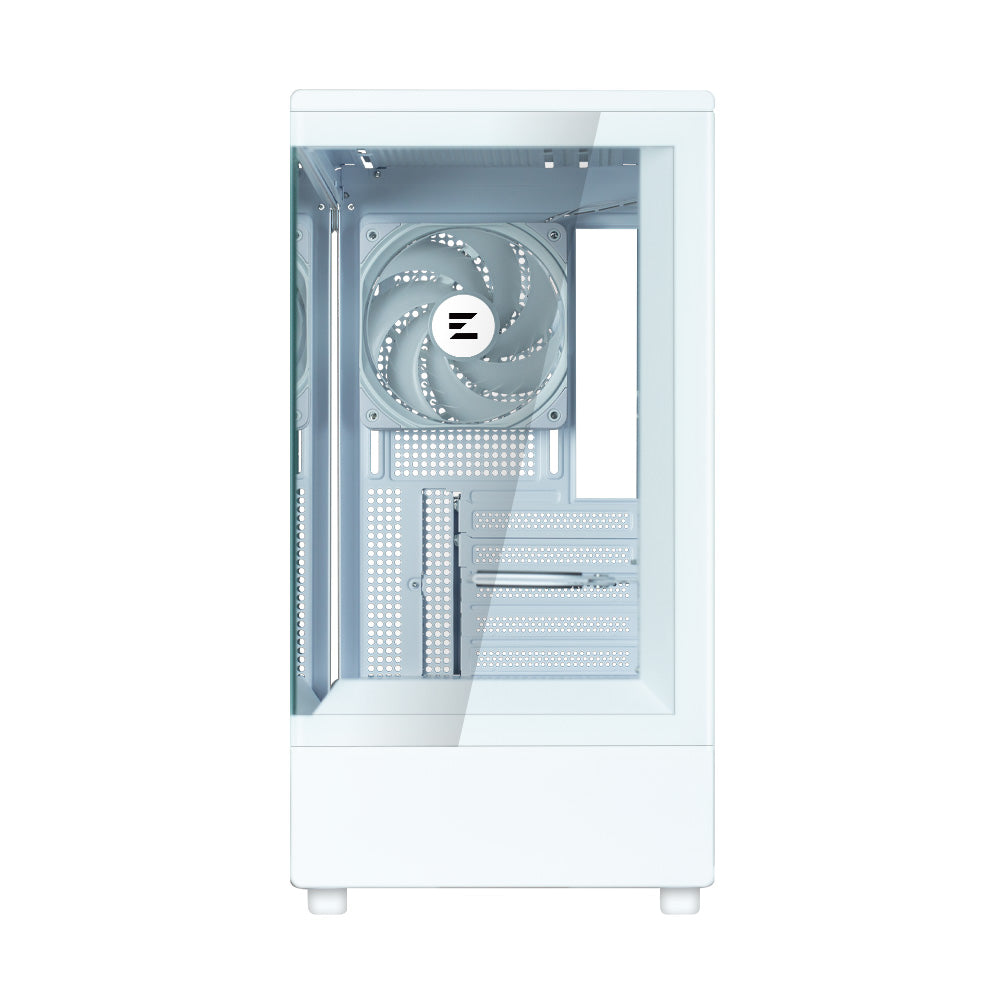

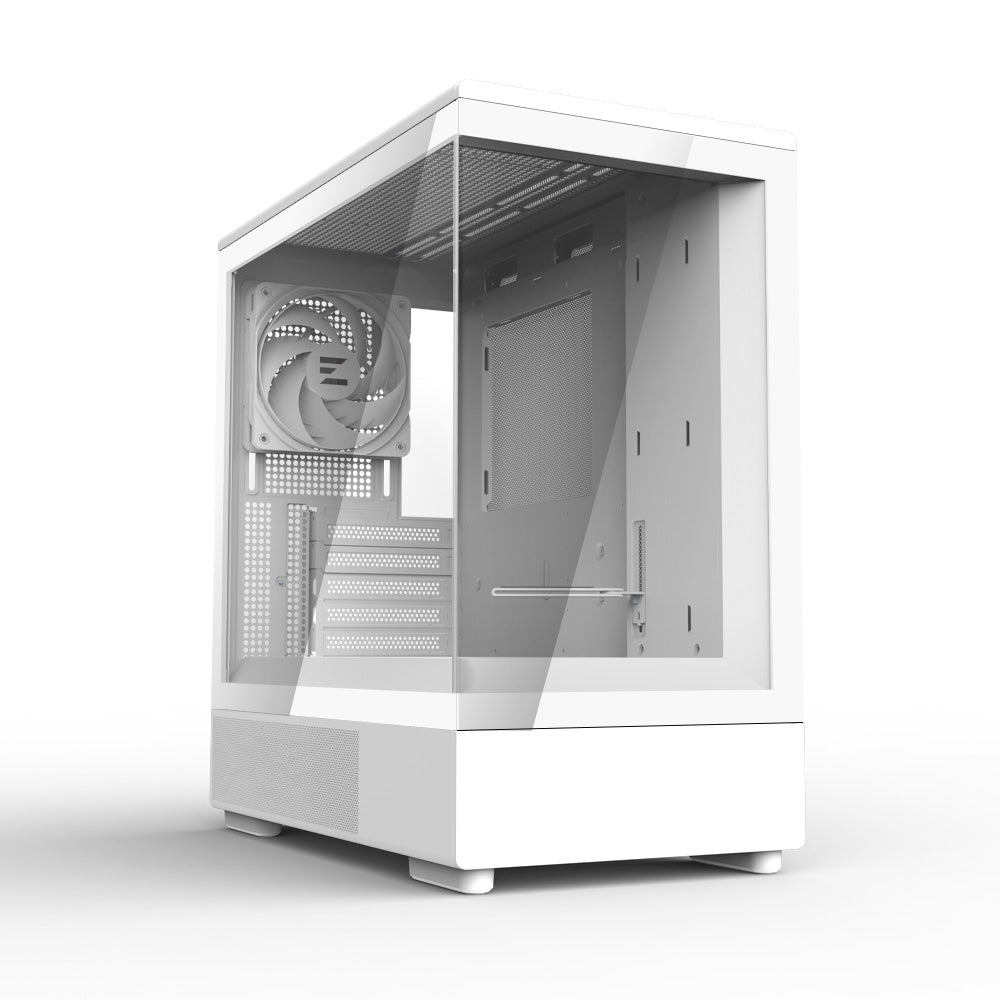

Panoramic View with Seamless Tempered Glasses
Two frameless front and side tempered glasses showing unique PC build
Tool-Free Tempered Glasses
The front and side panels can be easily and completely removed for convenient access to PC components

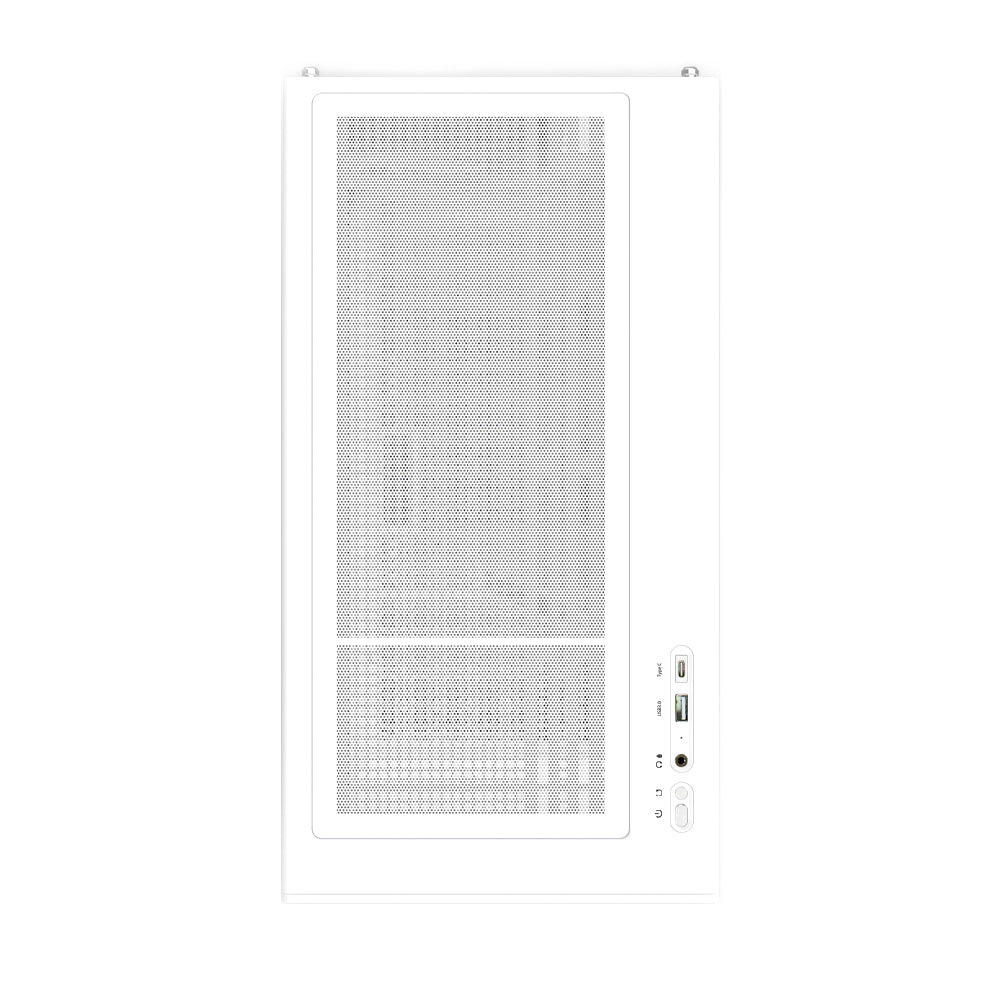

- Easy panel management with groove fixing structure at the bottom of the tempered glass
- Power
- Reset
- Microphone / Headphone Jack
- Power LED
- USB 3.0
- USB Type C

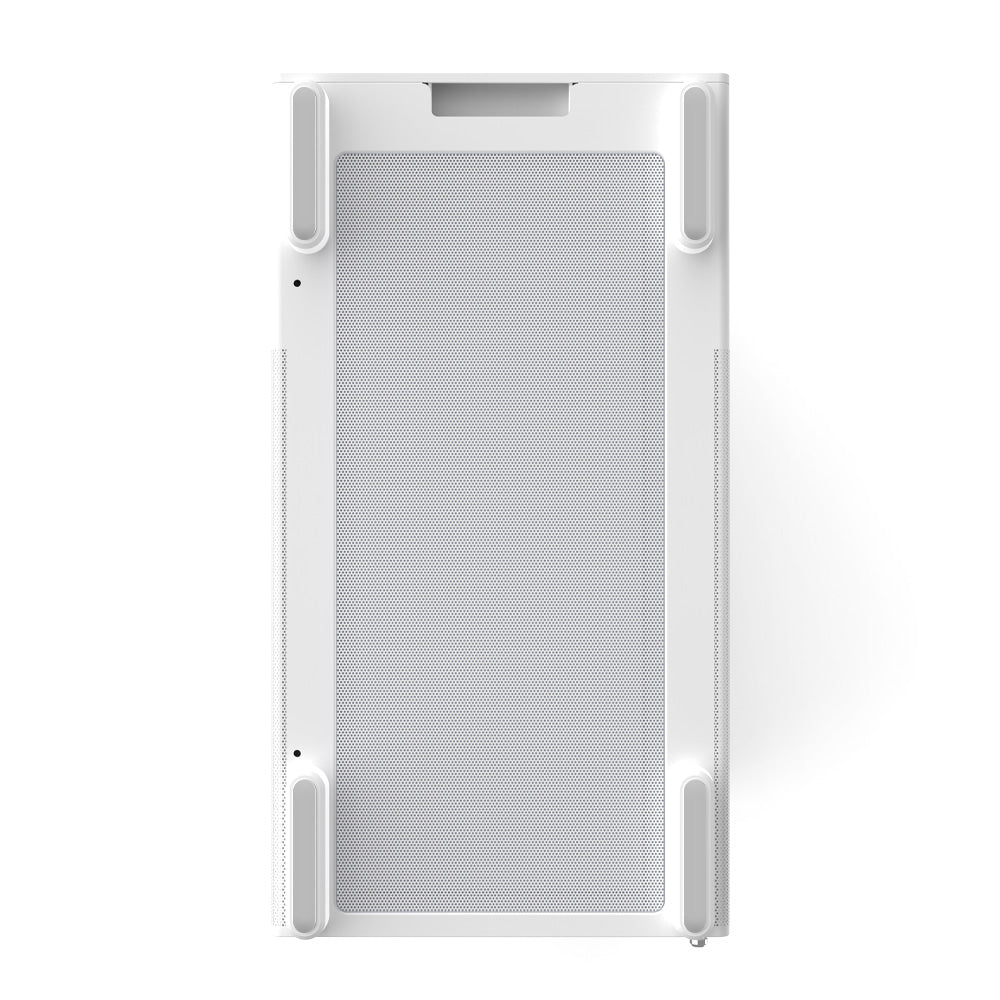

Top/Bottom Magnetic Dust Filter
Protects your components and provides unobstructed
airflow through dust filtration

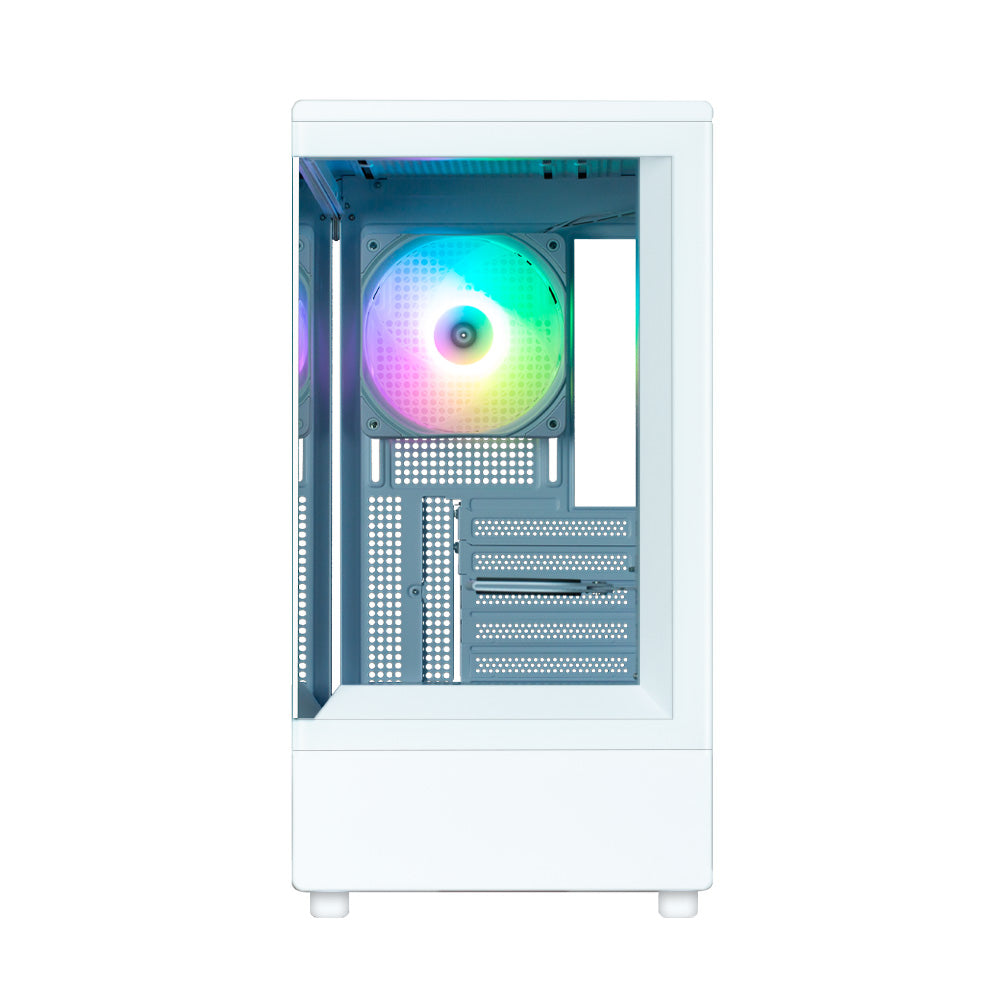

Zalman AF120 Annular Fan with
Shark Fin Blades
Unlike regular cooling fan, specially designed
Zalman AF120 Annular FAN with Shark fin blade
provides minimum resistance to airflow allowing
minimum operation noise.
Fan) ZM-AF120 ARGB
- Dimensions : 120 x 120 x 26(T)mm
- Rated Voltage : 12V DC / LED : 5V DC
- Fan Speed : 600~2,000RPM ±10%
- Bearing Type : Hydro Bearing
- Connector : PWM 4pin / 5V 3pin(Addressable RGB)
Motherboard Support

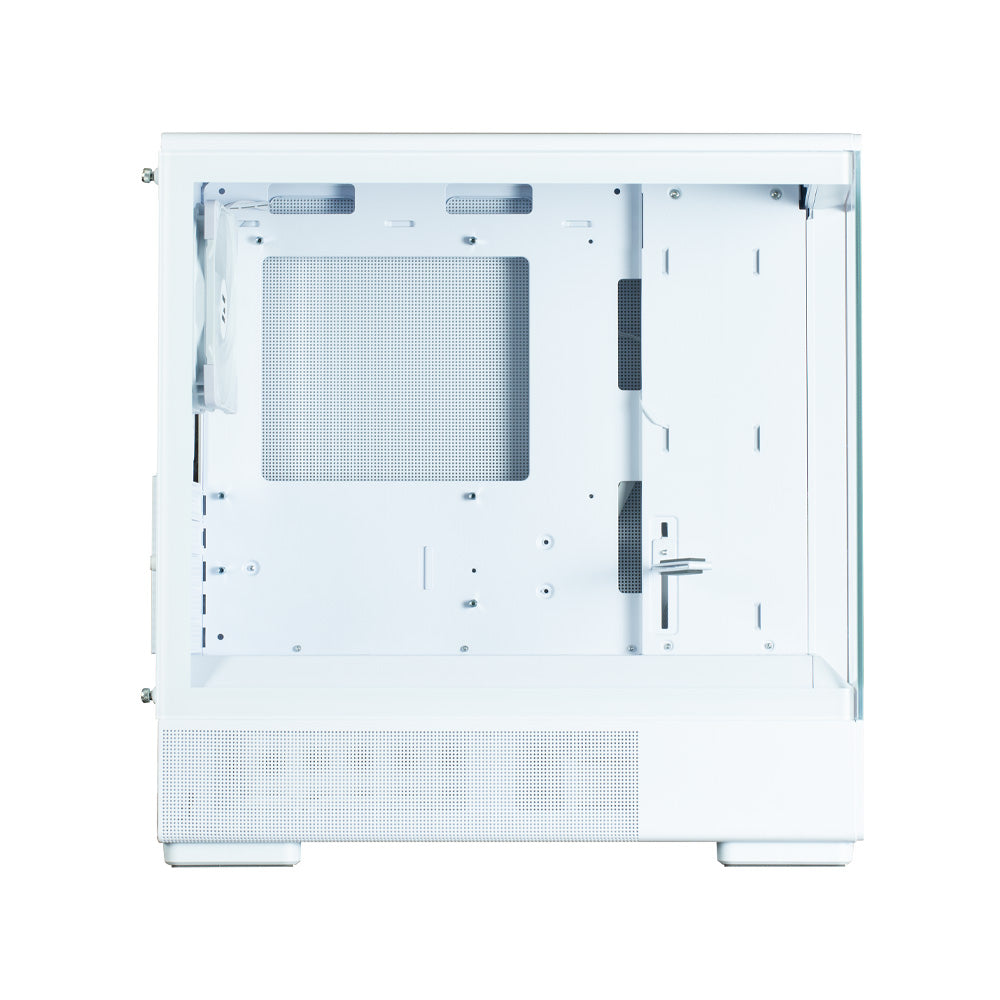

Intuitive Cable Management Layout
Convenient cable management layout and space
makes it easier than ever to organize messy cables
for a clean look
GPU Support Bracket Included
With Height Adjustment
Slide up and Down to position GPU precisely
- Max CPU Cooler Height : 173mm
- Max VGA Card Length : 384mm
- MAX PSU Length : 175mm
- Drive Memory Support : HDD x 2 / SSD x 3
Radiator Configuration
Top : 120mm / 240mm
Rear : 120mm
Fan Support
Top : 3 x 120mm / 2 x 140mm
Rear : 1 x 120mm
Bottom : 3 x 120mm

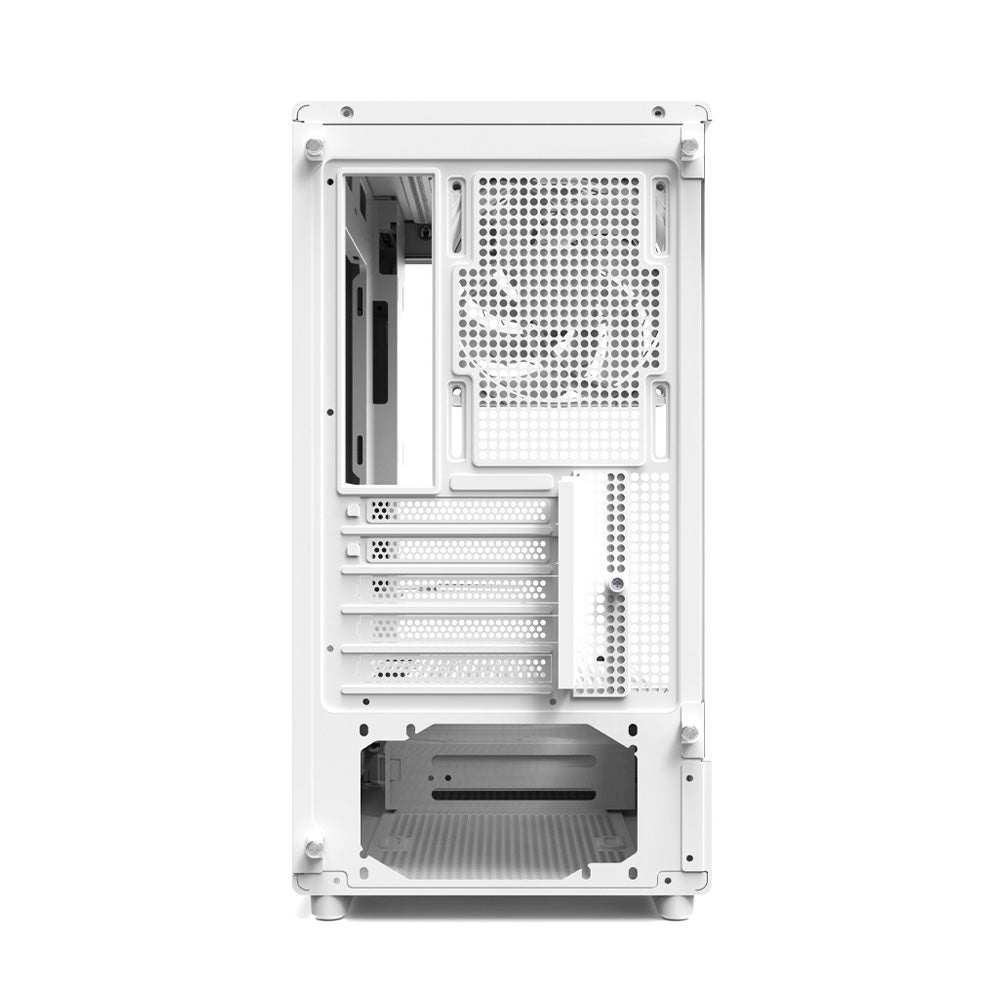

Rear Layout
1. Rear hand screw
2. Rear 120mm ARGB fan (Pre-installed)
3. PCI slots x 5
4. Rear Air Vent
5. PSU Slot
