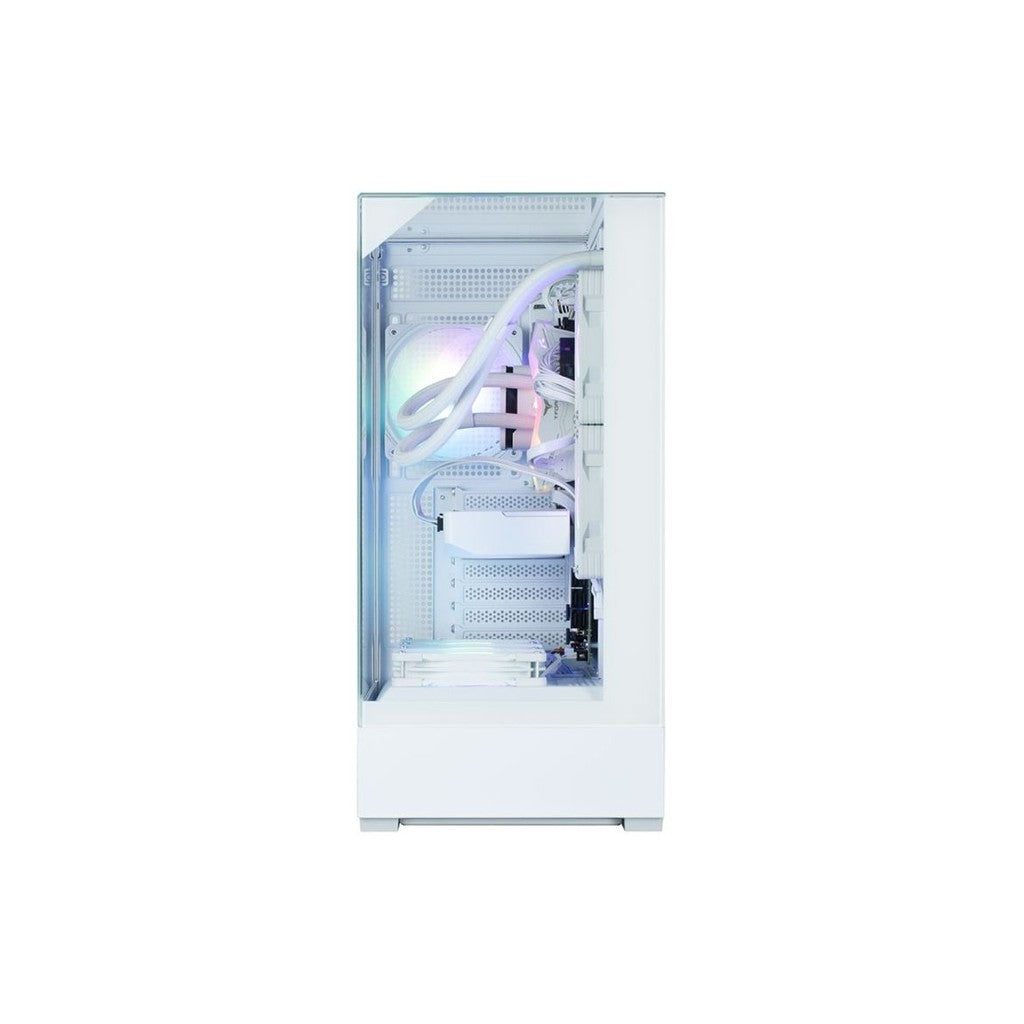

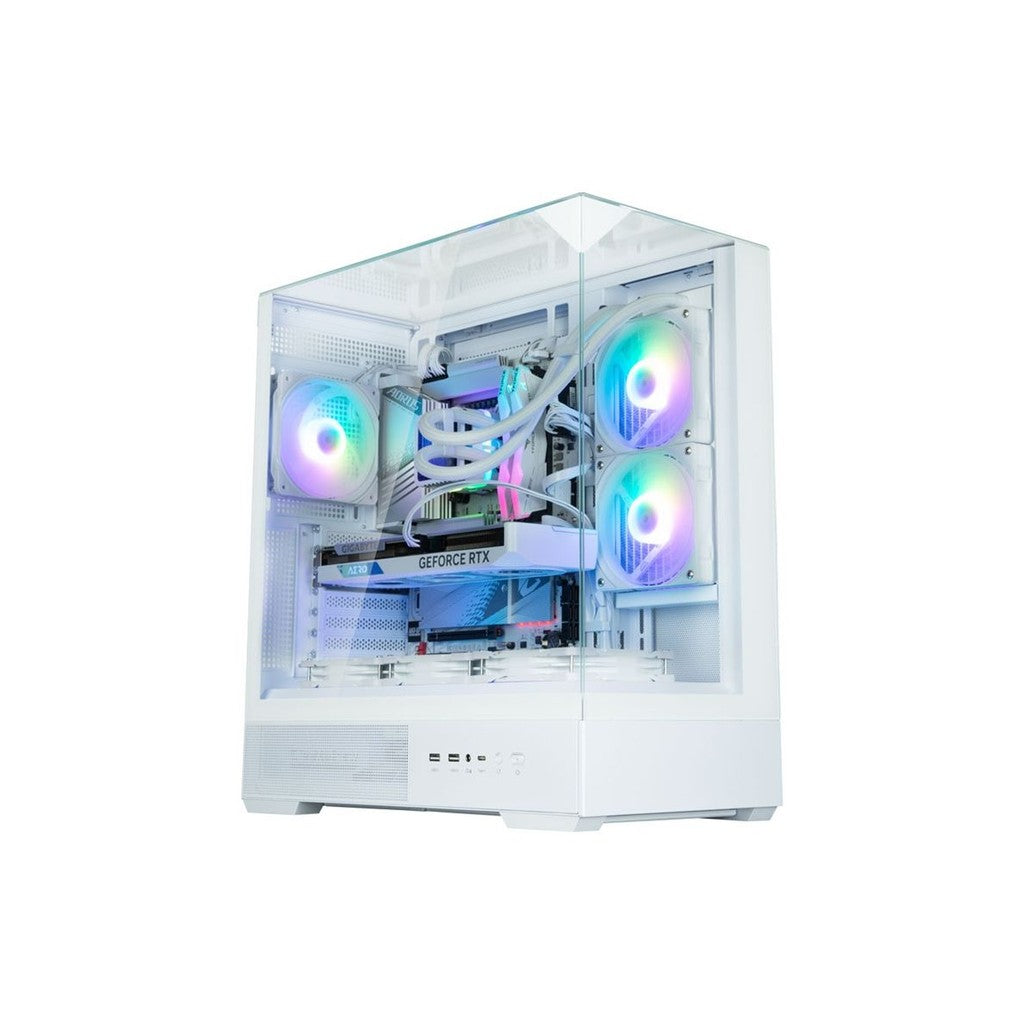

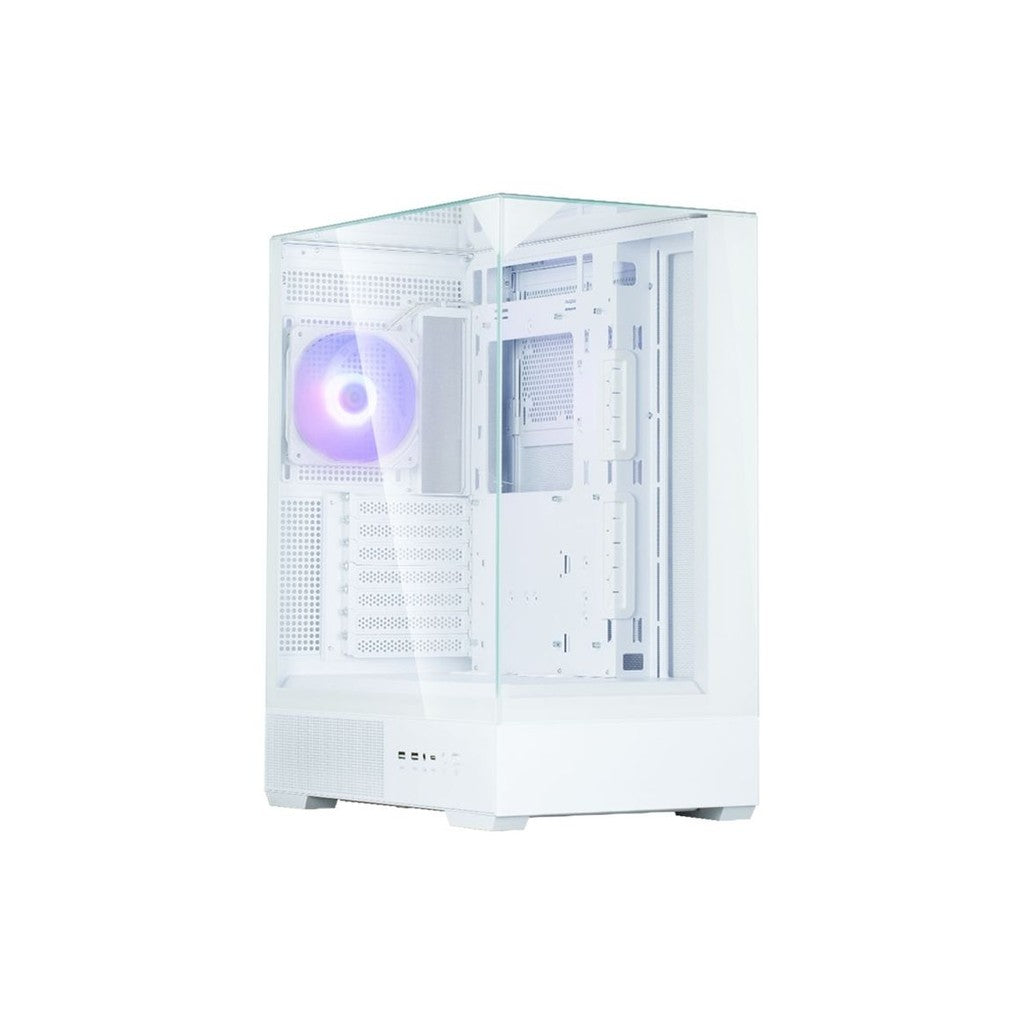

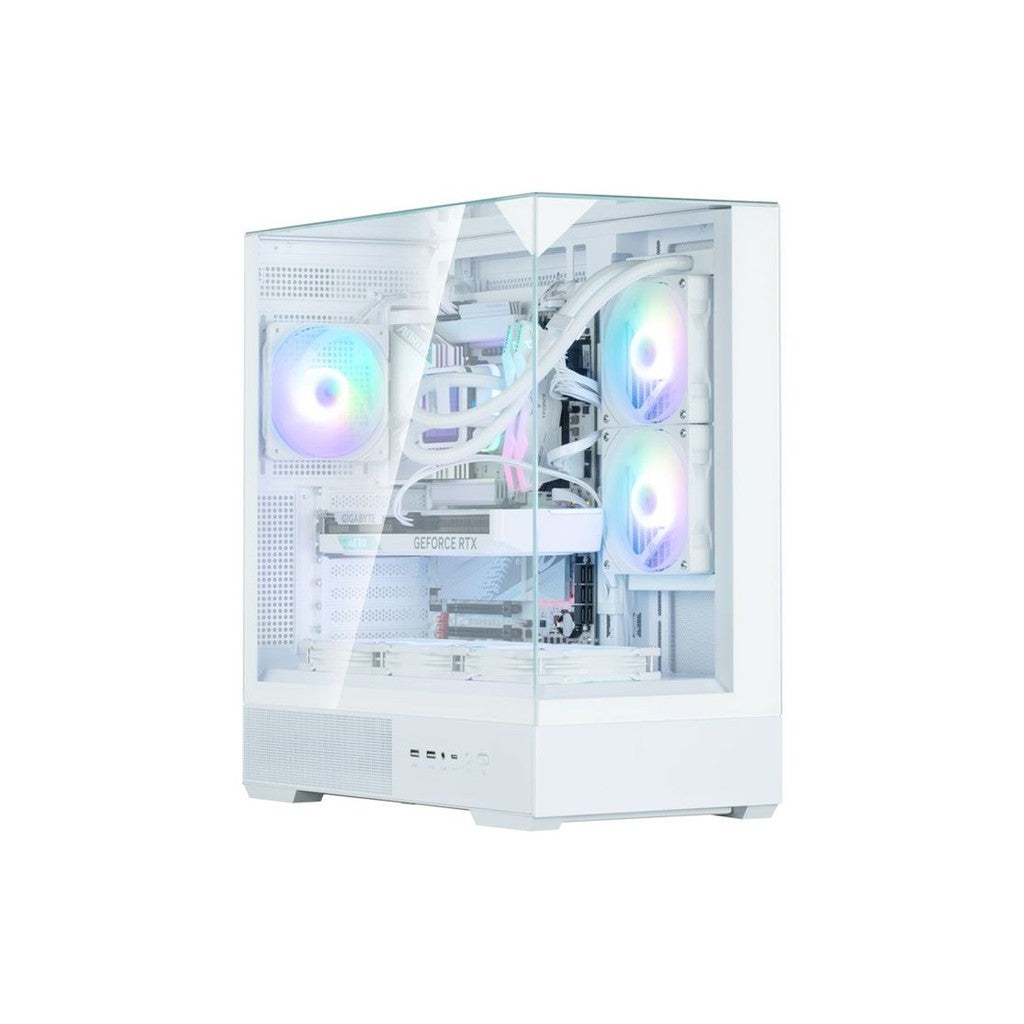

Zalman P40 Prism White ATX Mid Tower Case

Zalman P40 PRISM White ATX Tower Case

- 3-sided Tempered Glass
- Excellent Expandability
- Cable Managment
- Full-mesh side panel

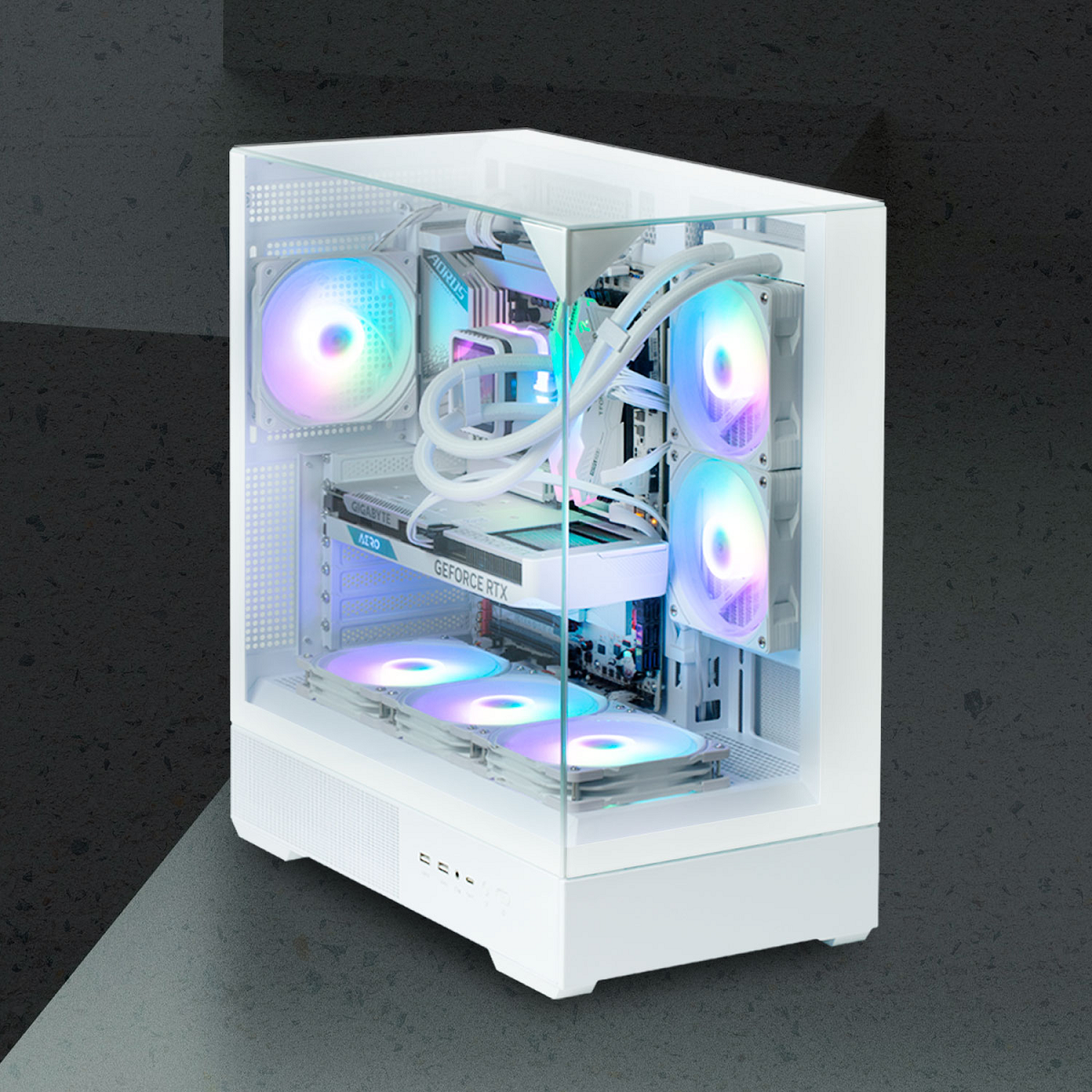

Showcase Build Aesthetics with a Stunning Design

The P40 Prism, with three tempered glass panels, creates an open feel and enhances your system build with its modern design.

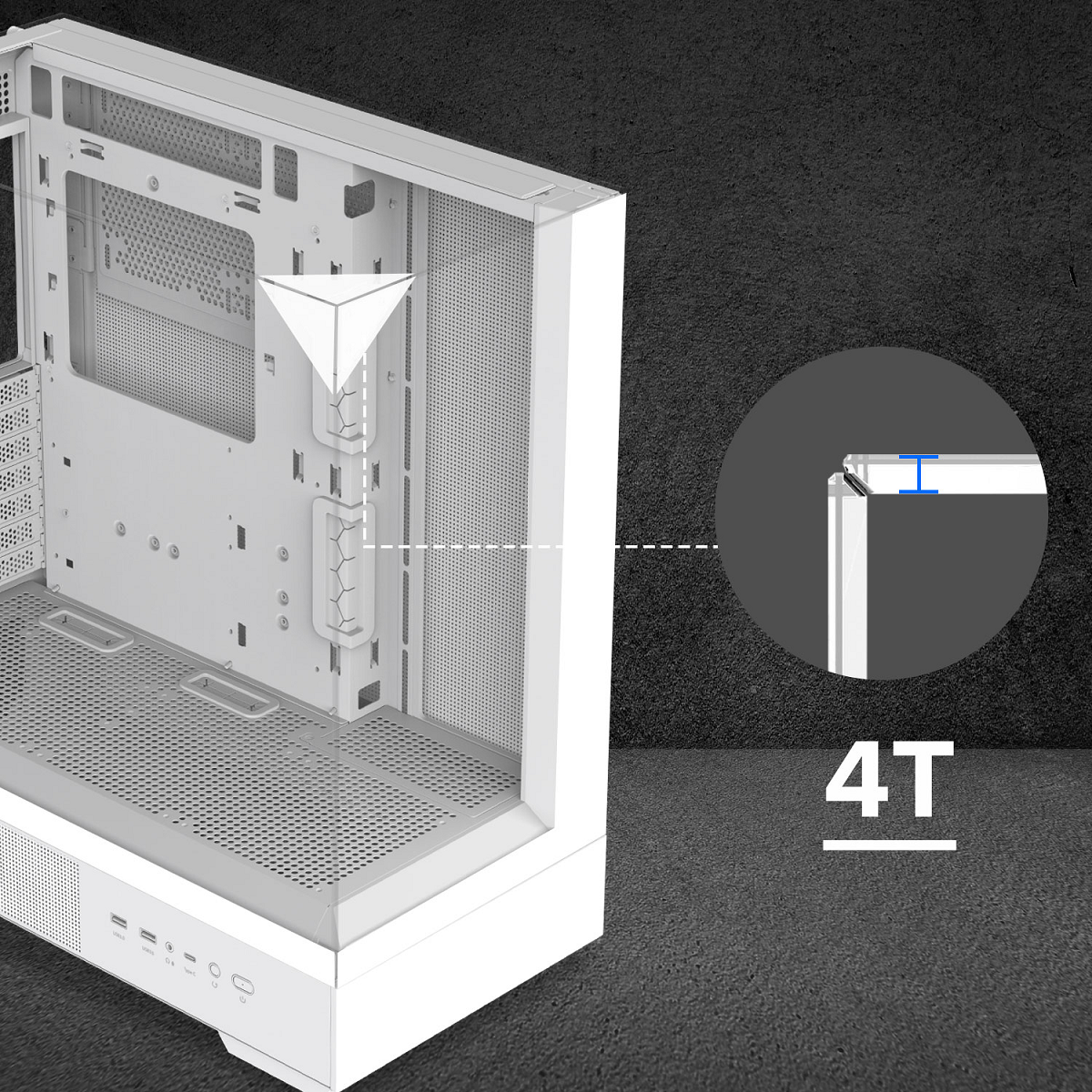

Premium Tempered Glass Panel

Using 4mm thick tempered glass, P40 Prism offers exceptional durability.

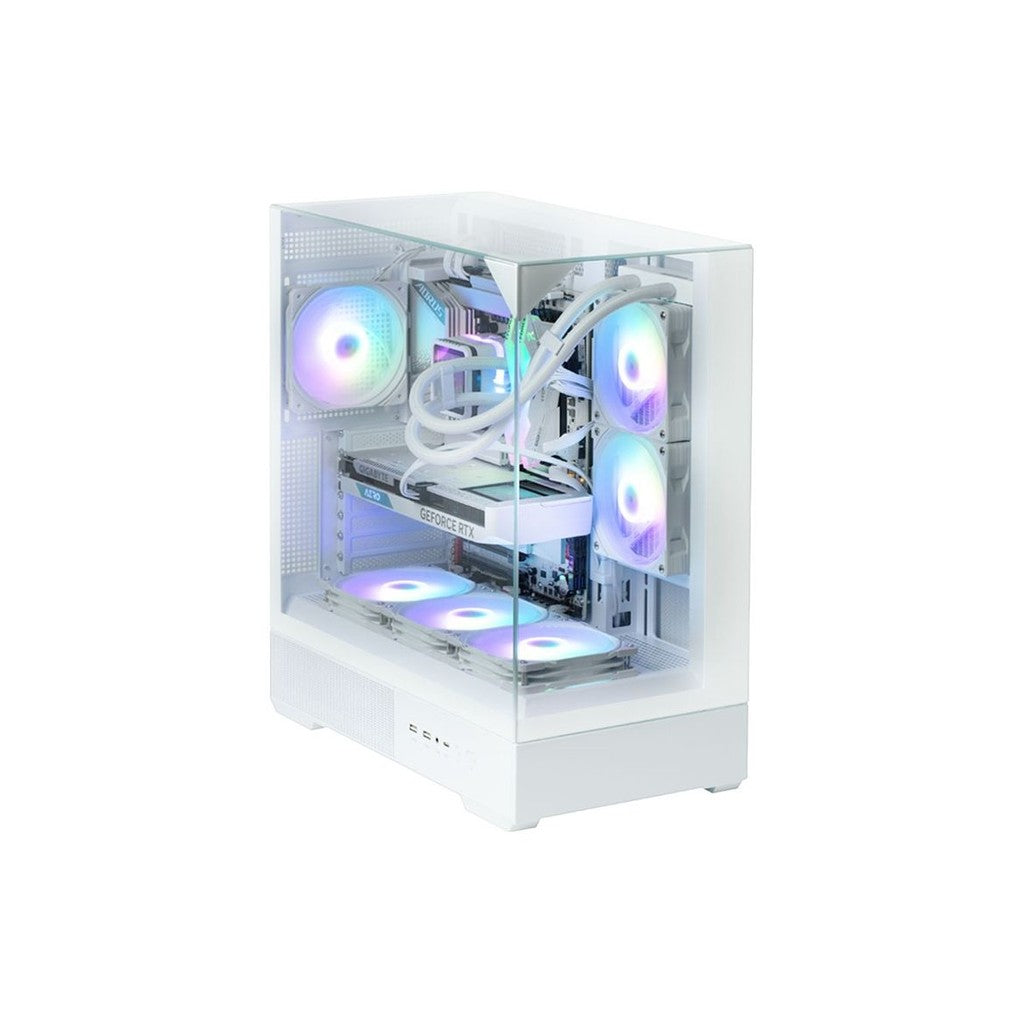

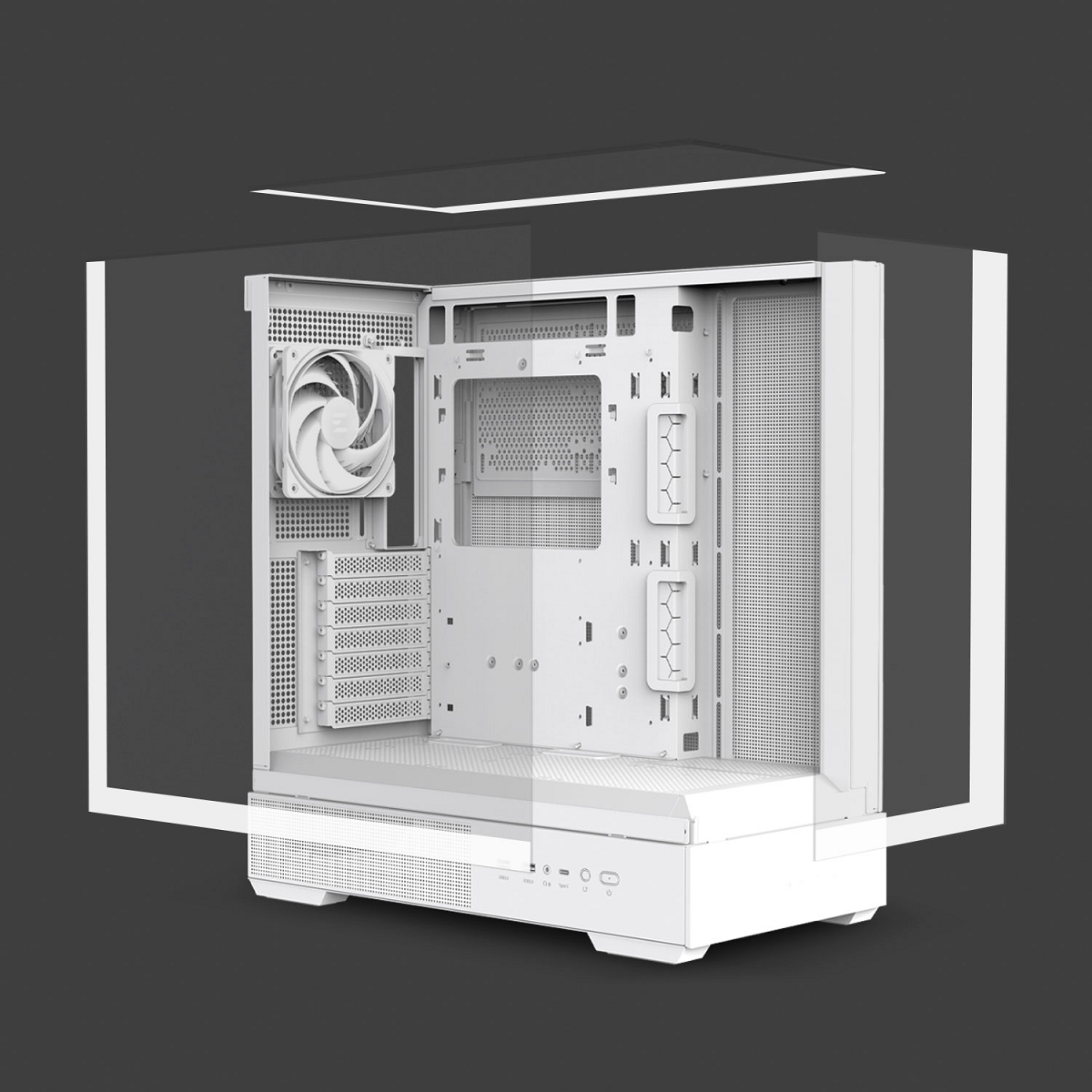

Unobstructed Panoramic View with 3-sided Tempered Glass

A new paradigm in design eliminates the chassis frame, providing an open feeling and unobstructed view. Tempered glass panels across the front, sides, and top create a seamless look.

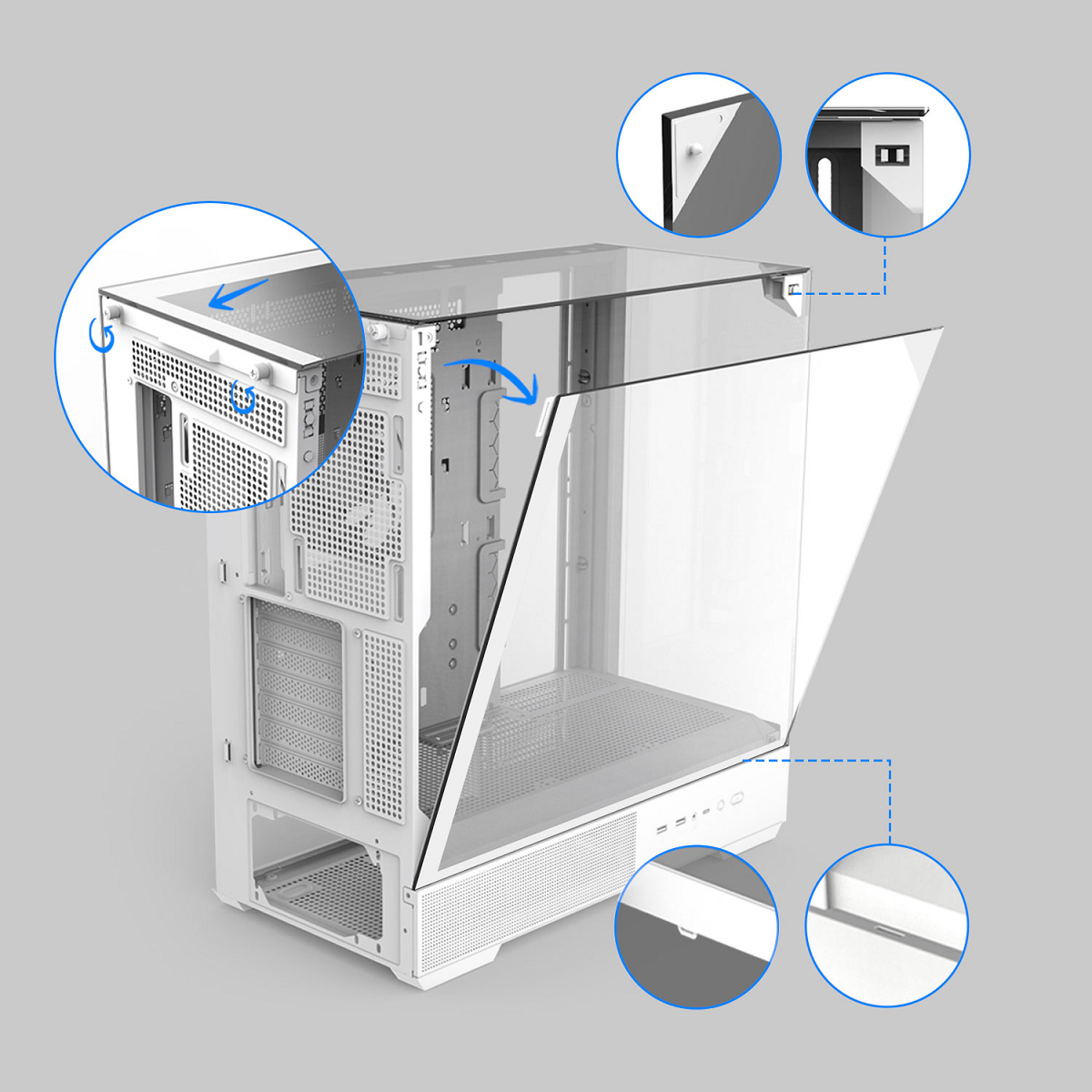

Tool-Free Tempered Glasses

The Front, Side and Top panels can be easily and completely removed for convenient access to PC components.

- Top Glass panel Thumb-Screw
- Easy panel management with groove fixing structure at the bottom of the tempered glass
- The new type of conical, tool-less fixing mechanism allows for convenient panel attachment and detachment and is not easily dislodged by normal impact.

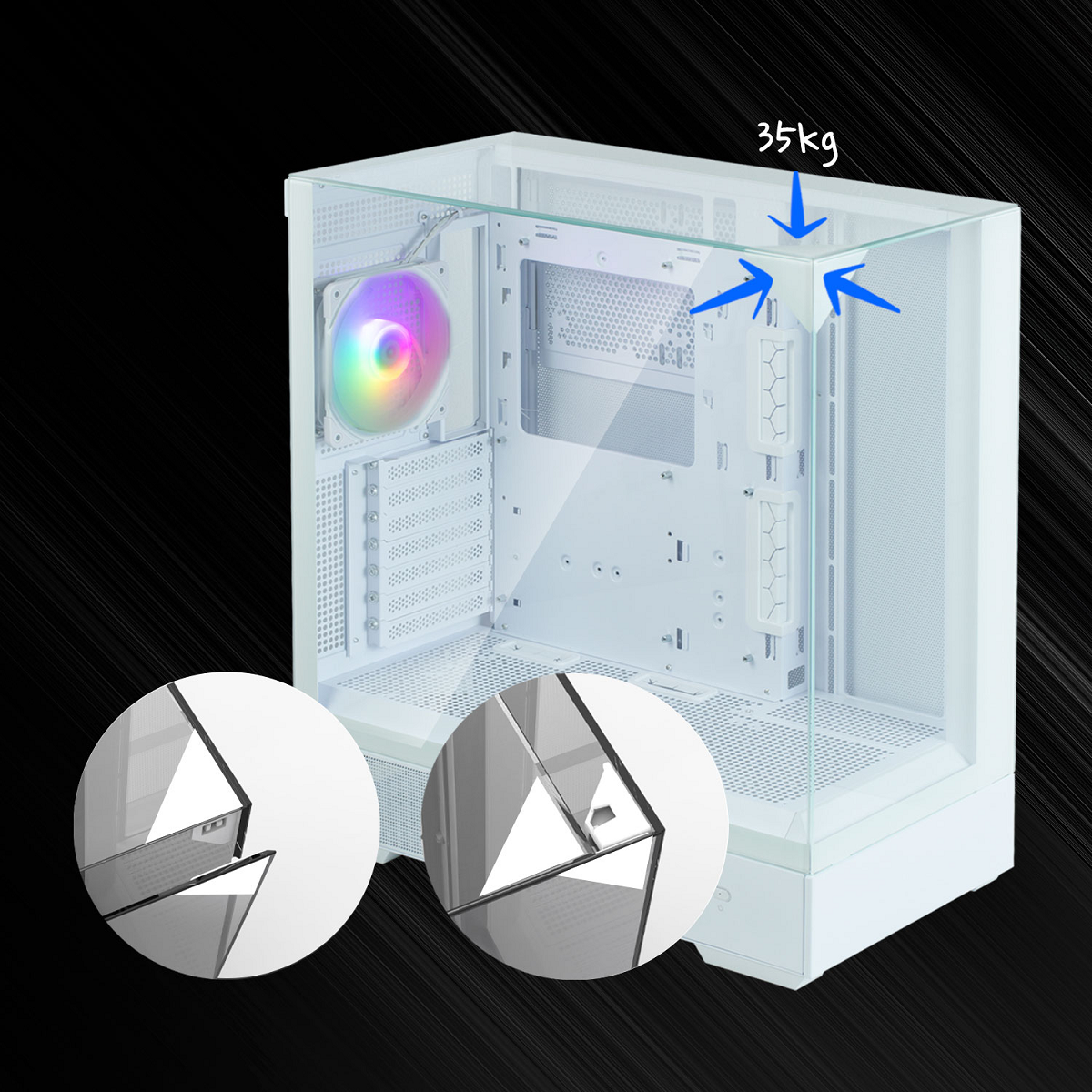

Sturdy Triangular Support Structure

The sturdy triangle fixing structure of tempered glass is able to support a load of 35kgs, ensuring solid stability for all three glass panels.

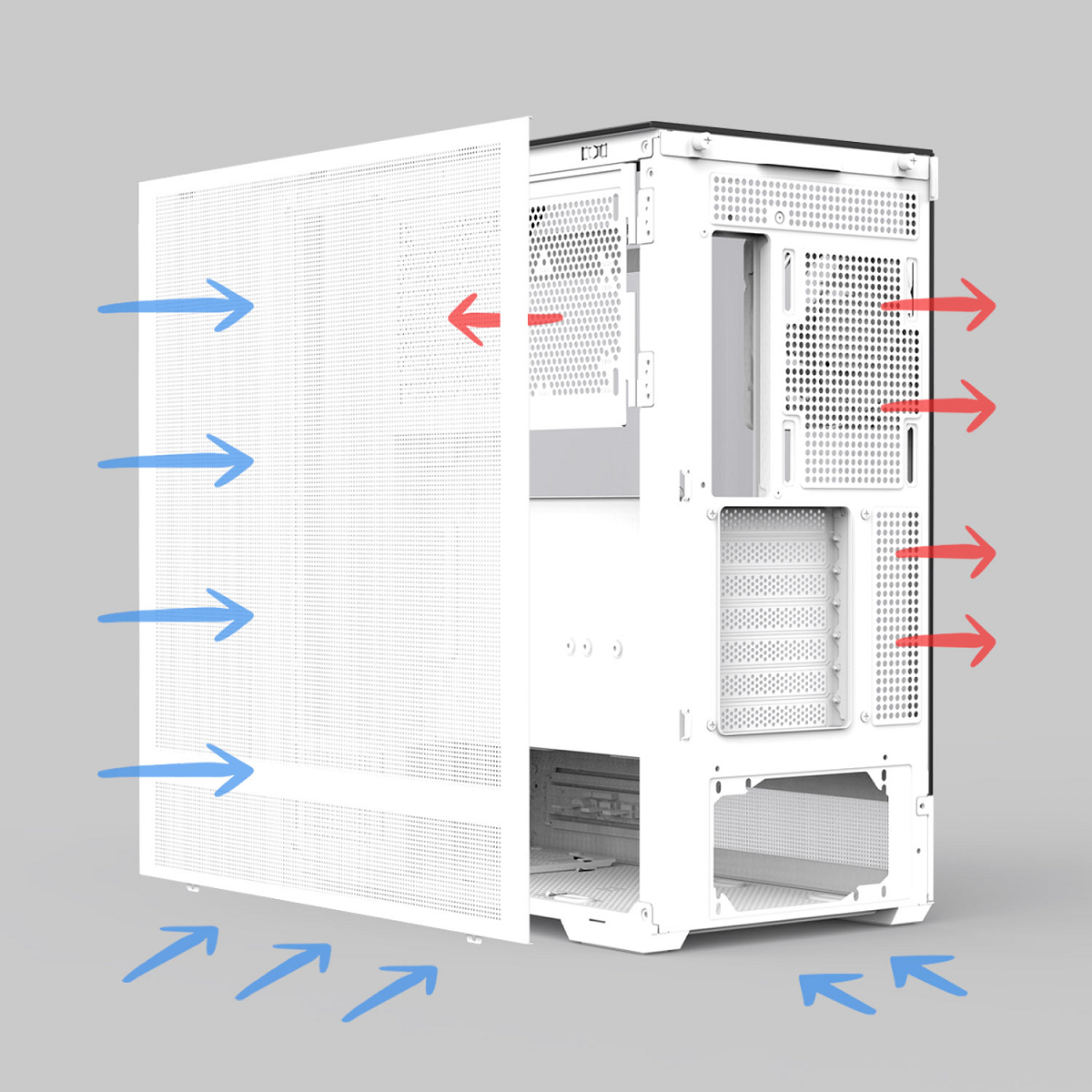

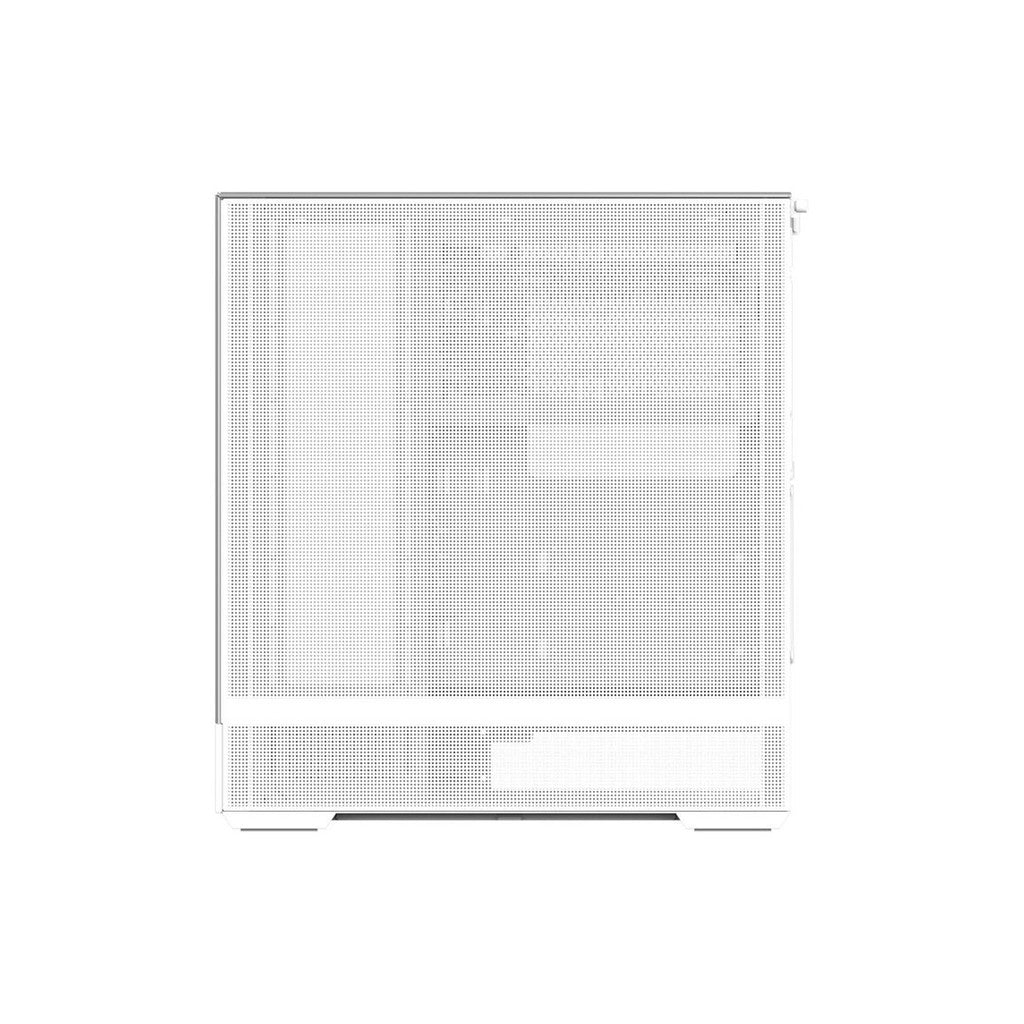

Full-Mesh Side Panel for Optimal Airflow

Full-Mesh Side Panel exhaust vent above the motherboard for optimized airflow.

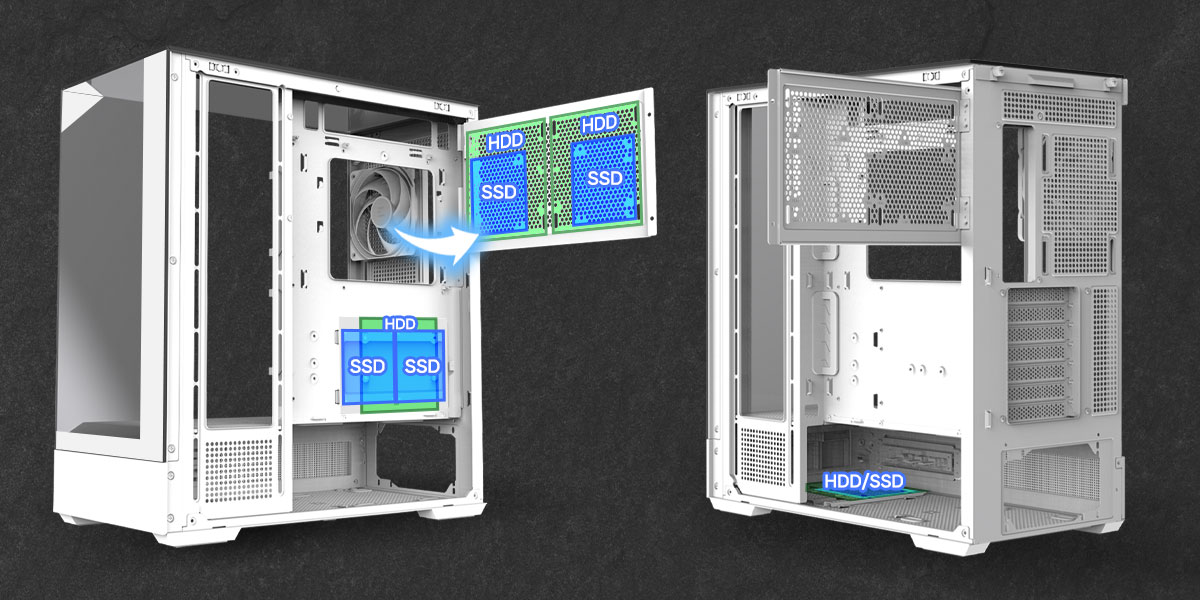

HDD / SSD

4 x Combo (2.5" or 3.5") (Max. 5 x 2.5" or 4 x 3.5" )
※ When attaching two fans to the expansion bracket on the back of the motherboard, only two combo brackets can be used.

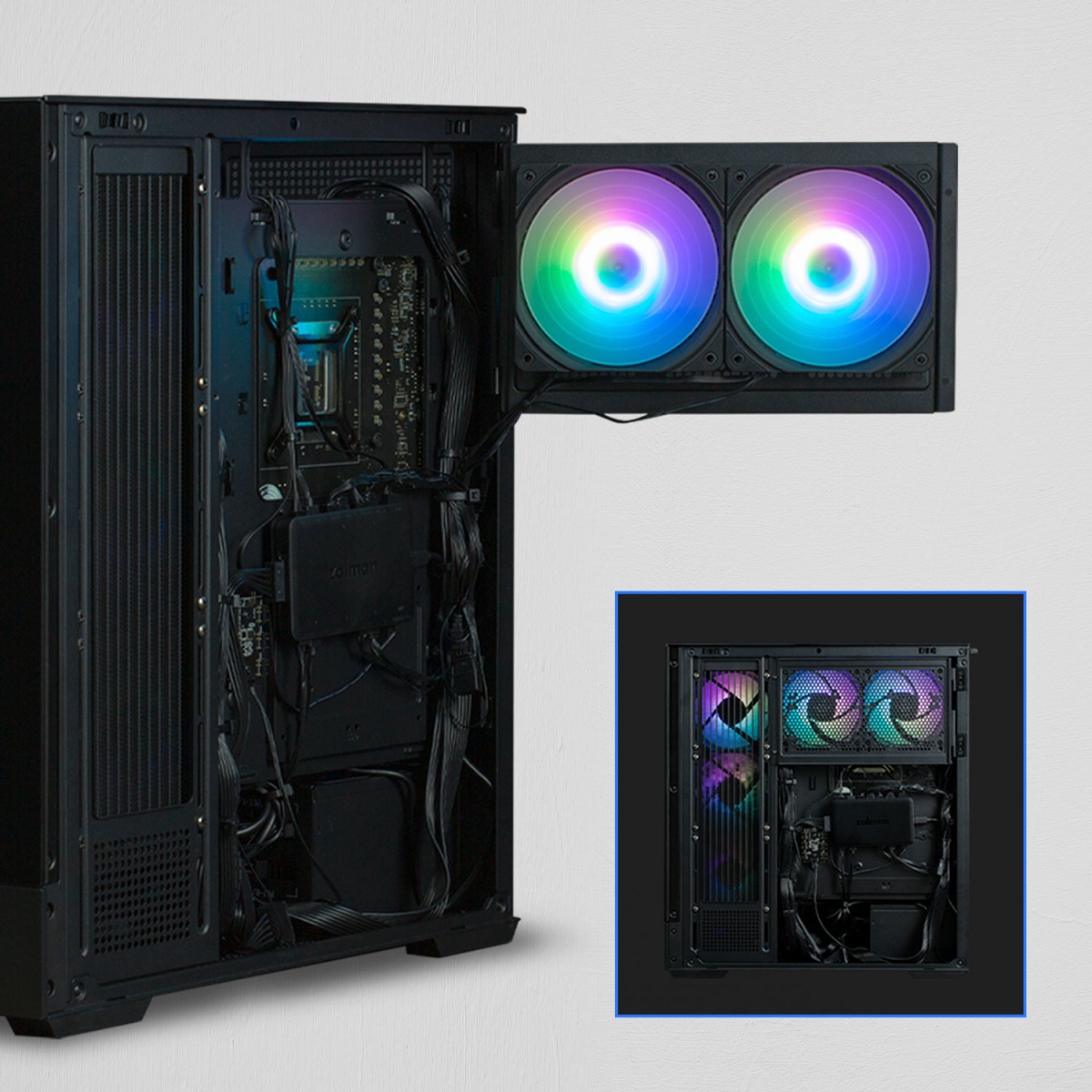

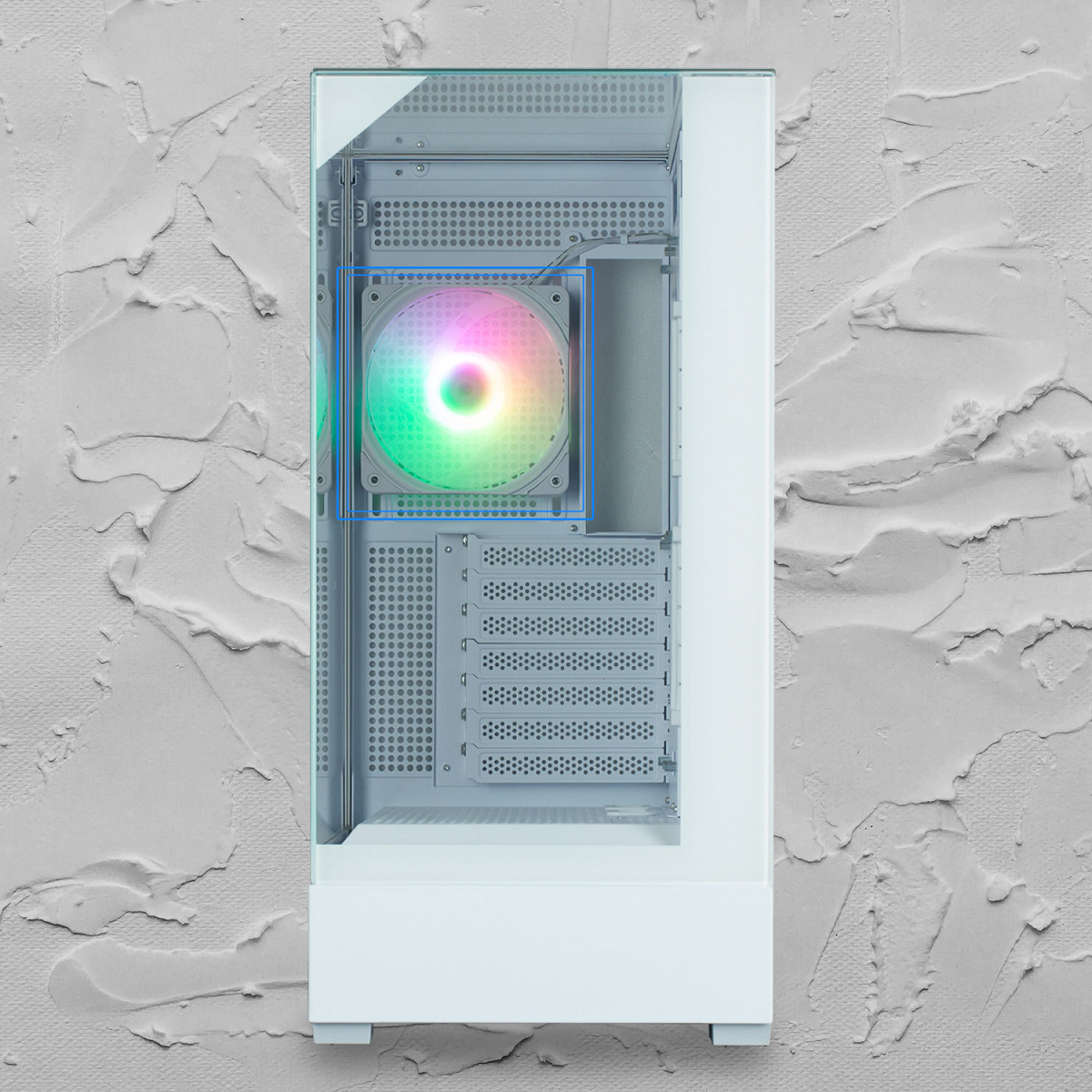

Additional fans can be installed to dissipate heat from the rear of the motherboard.

Side : 120mm/ 240mm / 360mm

Rear : 120mm

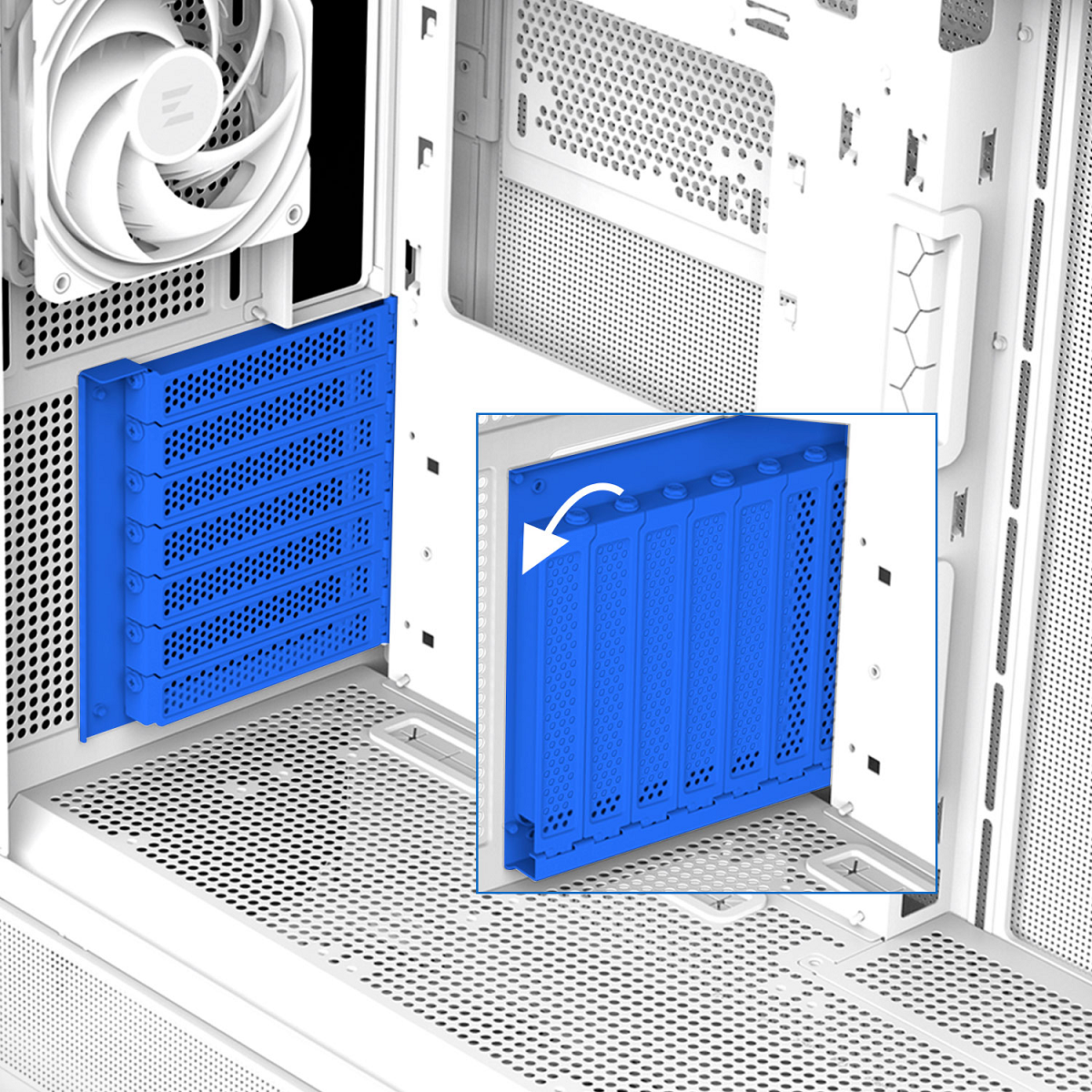

Rotating PCI slot for GPU

Installation Direction (Vertical/Horizontal)

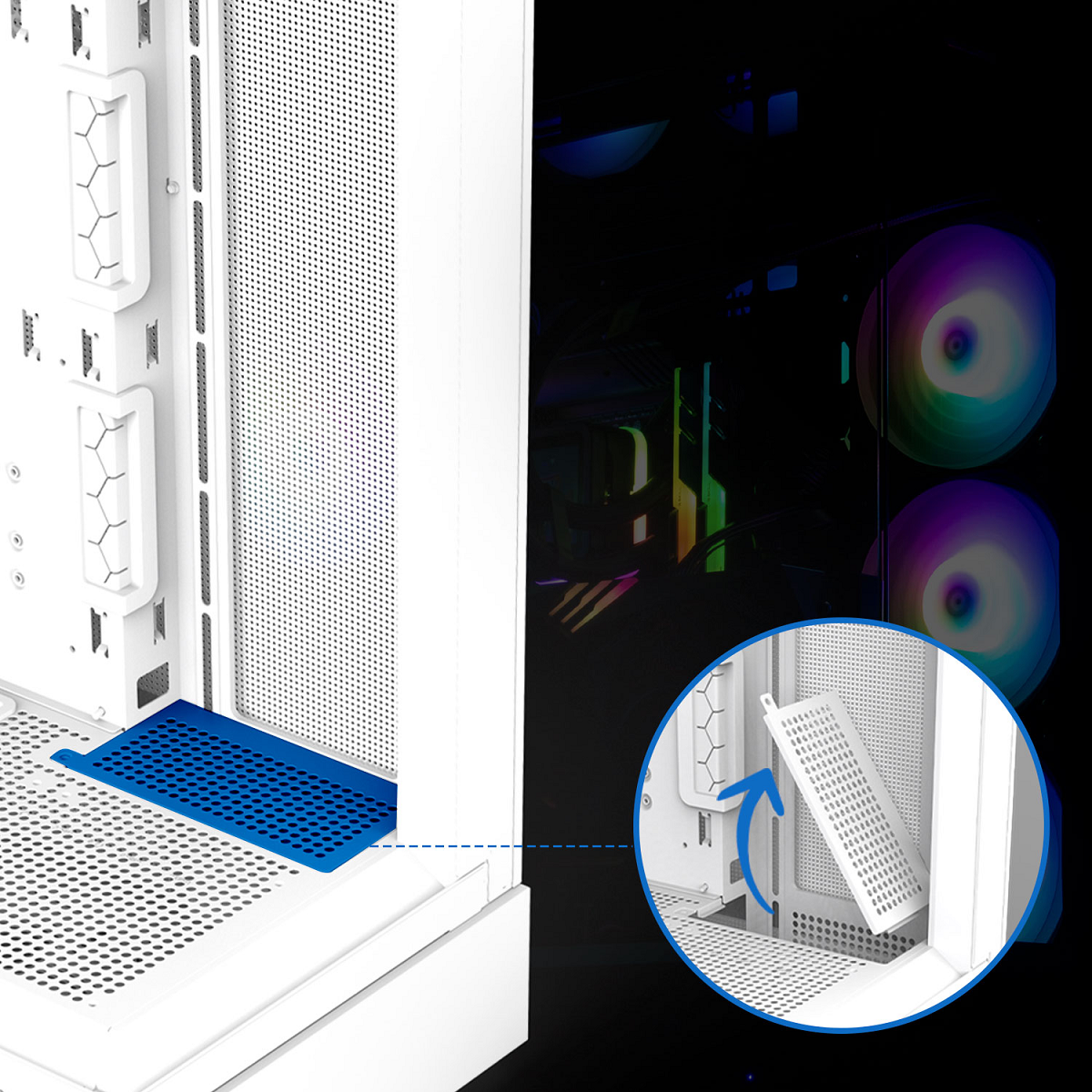

Detachable Expansion Cover Available

The expansion cover can be removed to accommodate the installation of a 360mm liquid cooler.

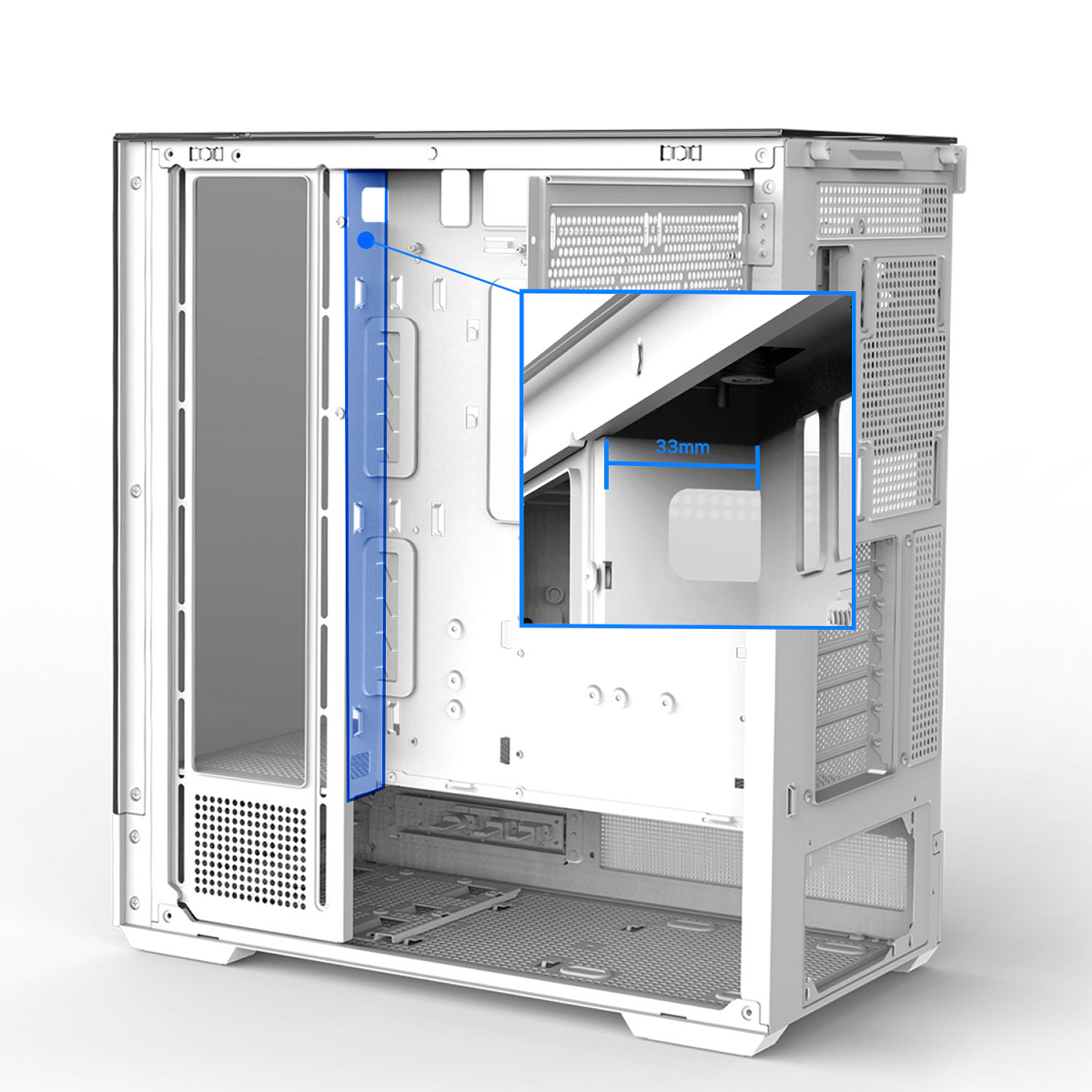

Efficient Cable Management with Optimal Routing Design

33mm cable management space helps keep wires organized. Convenient cable management layout and space makes it easier than ever to organize messy cables for a clean look.

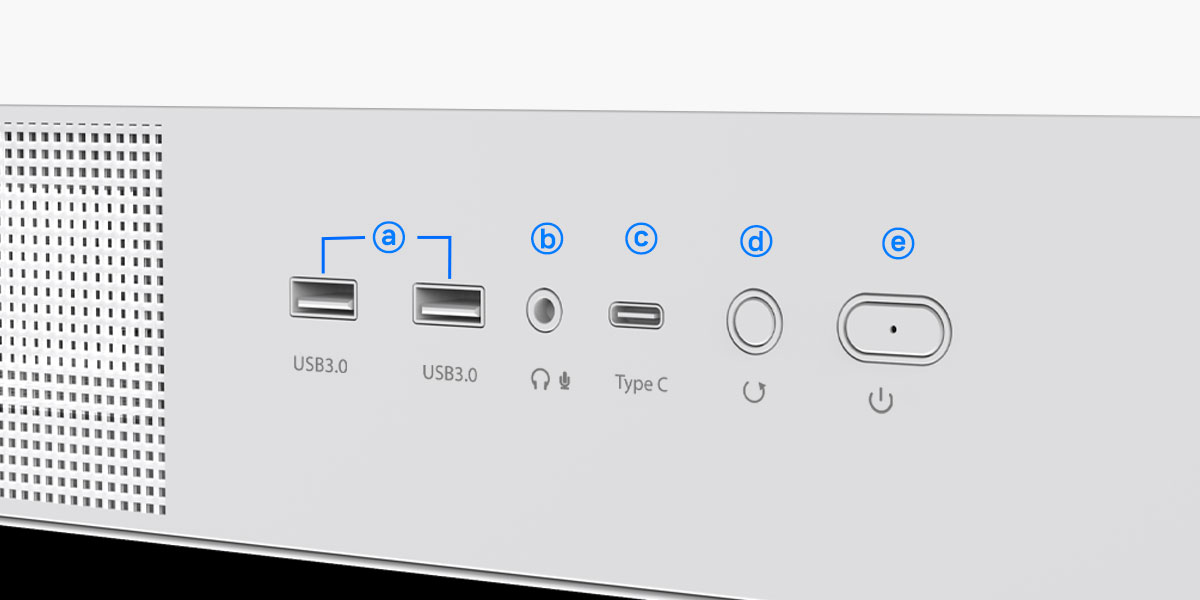

Easy Accessible I/O ports

ⓐ USB 3.0
ⓑ Microphone / Headphone Jack
ⓒ USB Type-C
ⓓ Reset Button (LED Control Button)
ⓔ Power Button

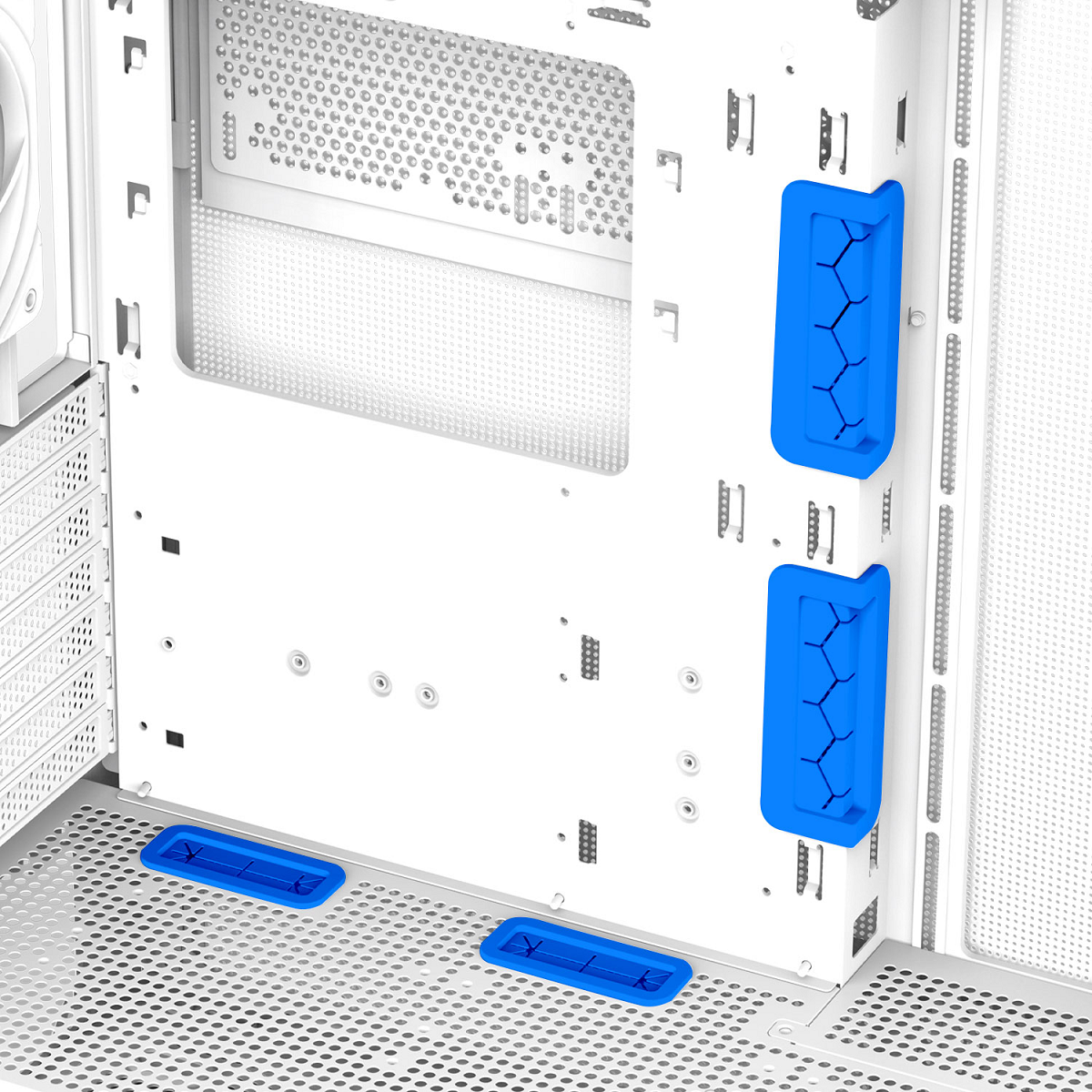

Rubber Grommets for Clean Cable Management

Convenient cable management layout makes it easier than ever to organize messy cables for a clean look.

Vibrant ARGB Lighting Effect

Stunning and bright ARGB colors shine through the AF120 presenting your build in the most beautiful light possible.

Rear : ZM-AF120 ARGB PWM

- Dimensions : 120 x 120 x 26(T)mm
- Rated Voltage :  12V DC (LED: 5V)
- Fan Speed : 600~1,500 ± 10%
- Air Flow : Max. 53.72CFM
- Bearing Type : Hydro Bearing
- Connector : 4-Pin(PWM) / LED 3-Pin(5V)

1. The blade vibration is minimized by preventing the trembling of the blades during fan operation and the durability is enhanced.
2. Wind noise is minimized by suppressing the vortex phenomenon that occurs on the blades.
3. Airflow is maximized by minimizing the amount of air flow lost to the outerncircumference of the rotor.

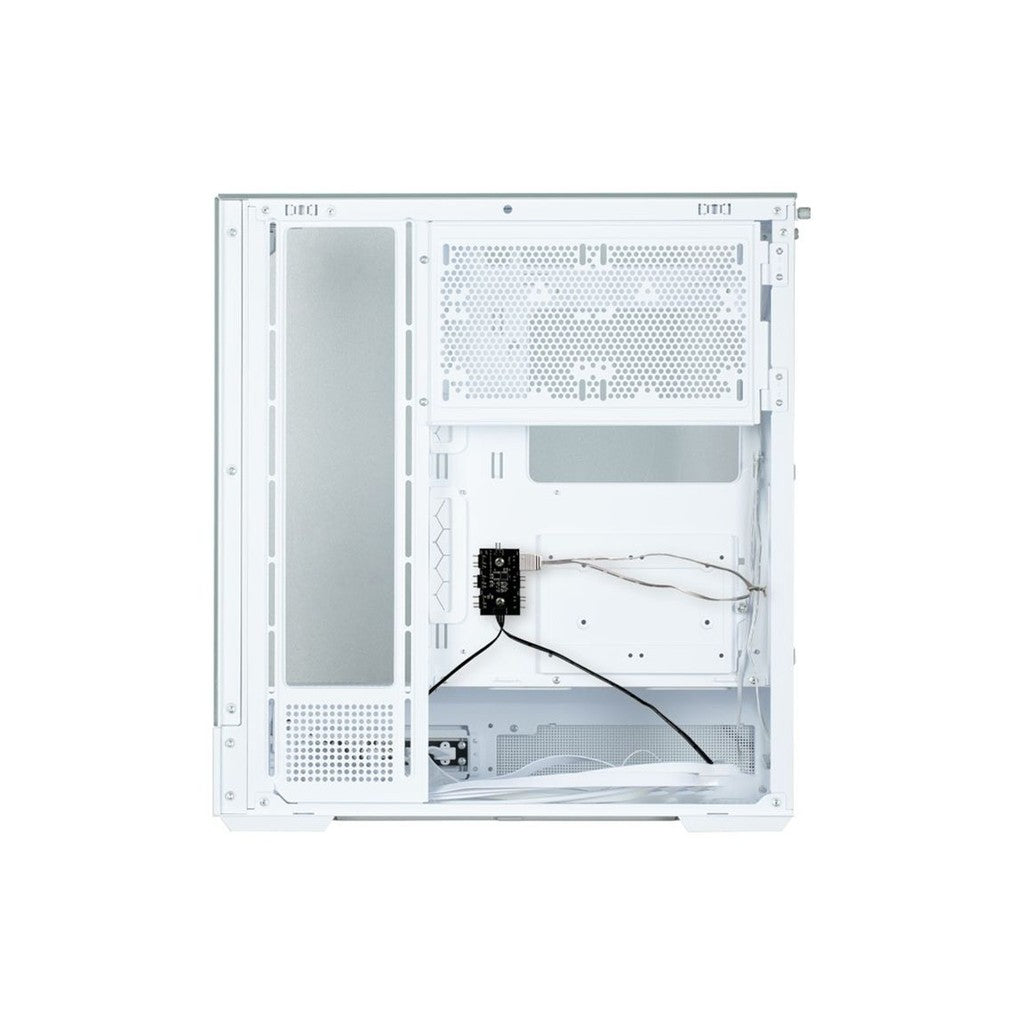

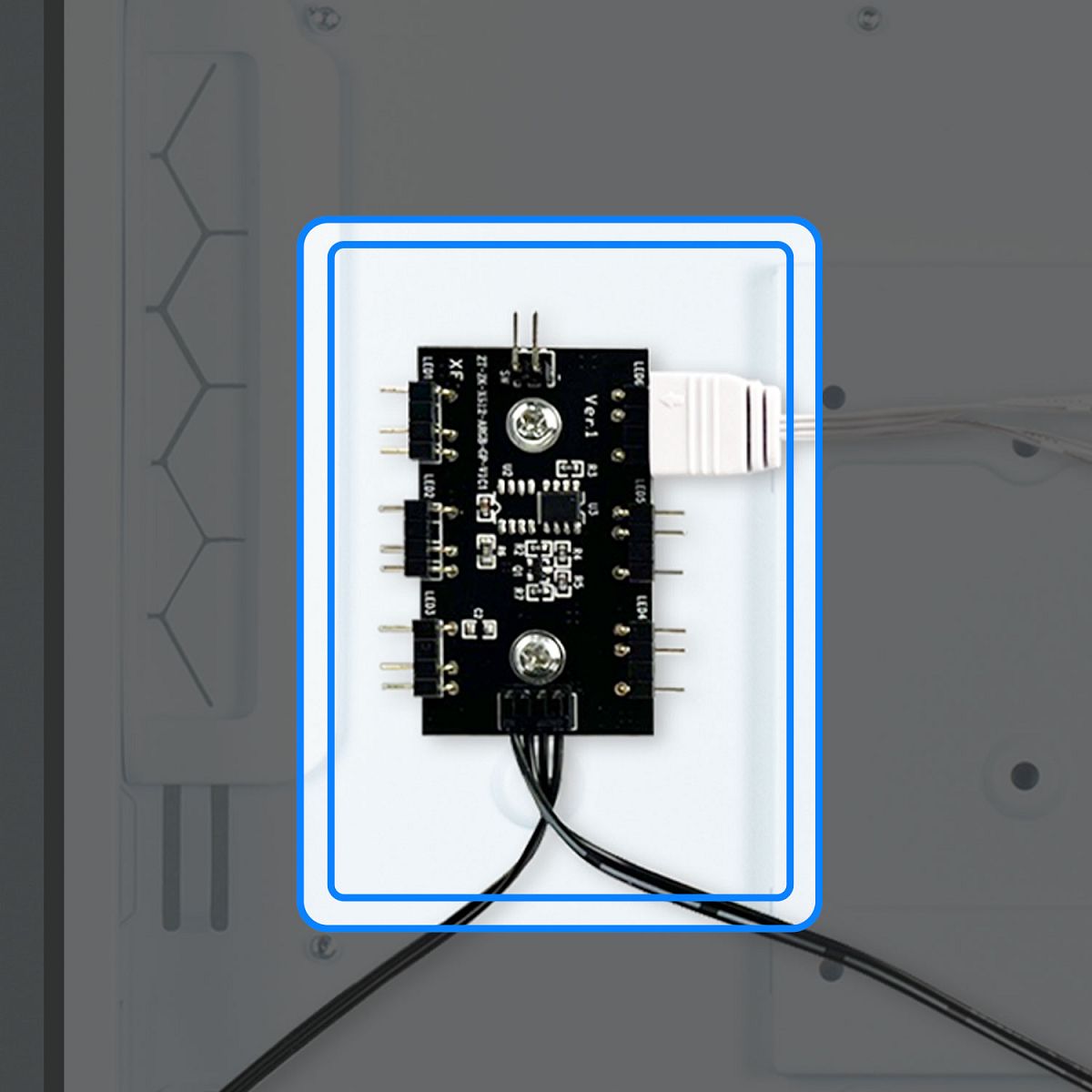

ARGB Controller

RGB control hub and LED Control Button(Reset Button) at side enable variety RGB effects. Connect to motherboard 5v RGB pin header to create various RGB modes.

※ How to use ARGB controller

- Press the I/O LED button to change the LED pattern and color.(26 patterns)
- Press and hold the LED button for 3 seconds to sync the motherboard after the white light flashes once.
- Press and hold the LED button for 6 seconds to turn off the LED after the white light flashes twice.
- Press the LED button again to disconnect the motherboard sync and change the controller mode.

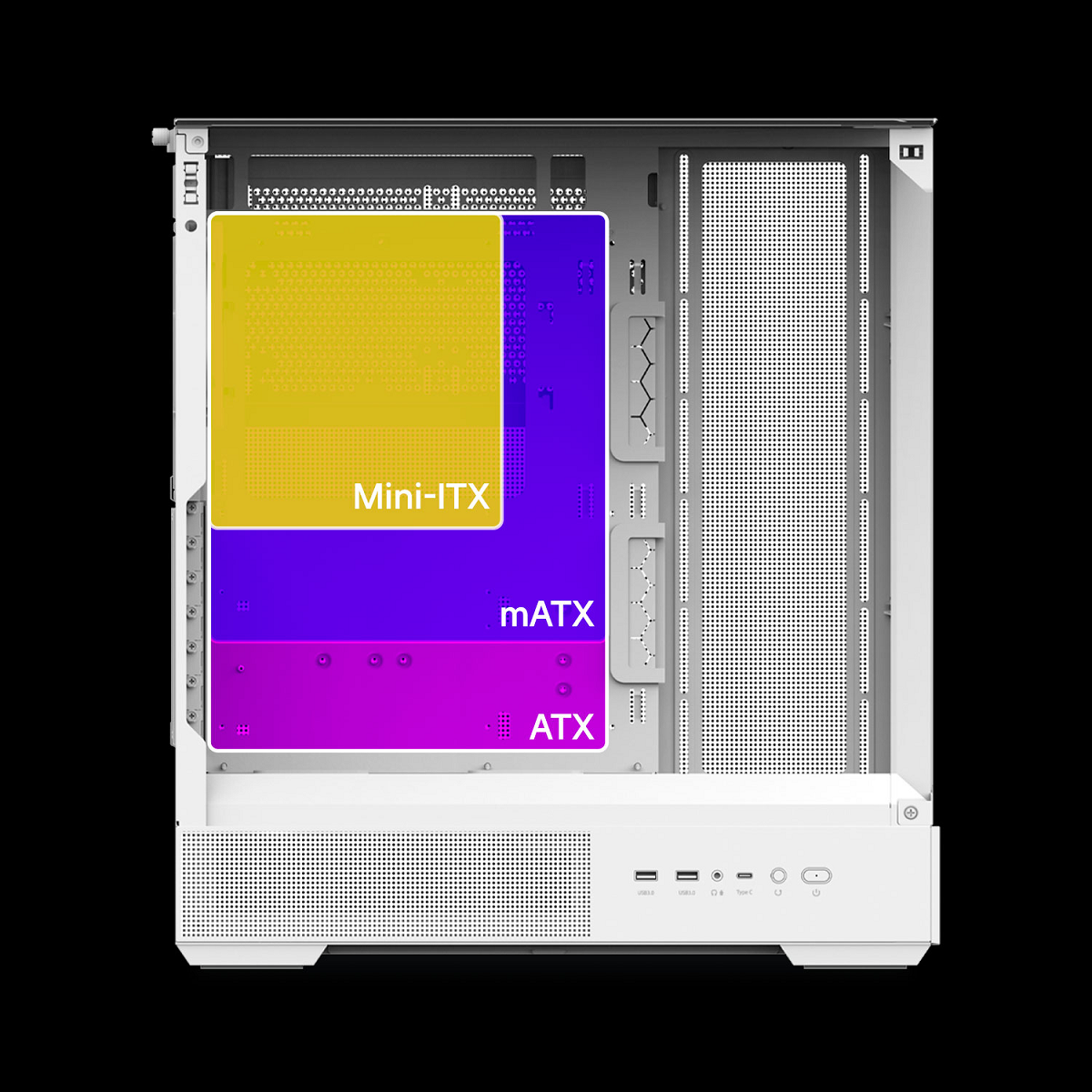

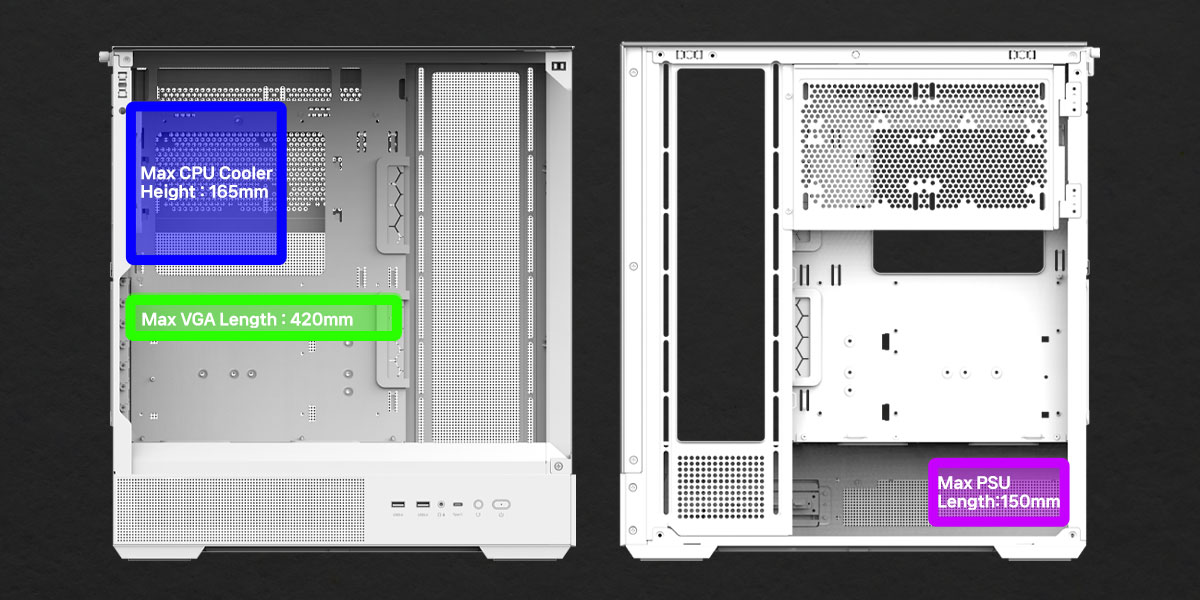

Motherboard Support

Max CPU Cooler Height :  165mm

Max VGA Card Length :  420mm

MAX PSU Length :  150mm

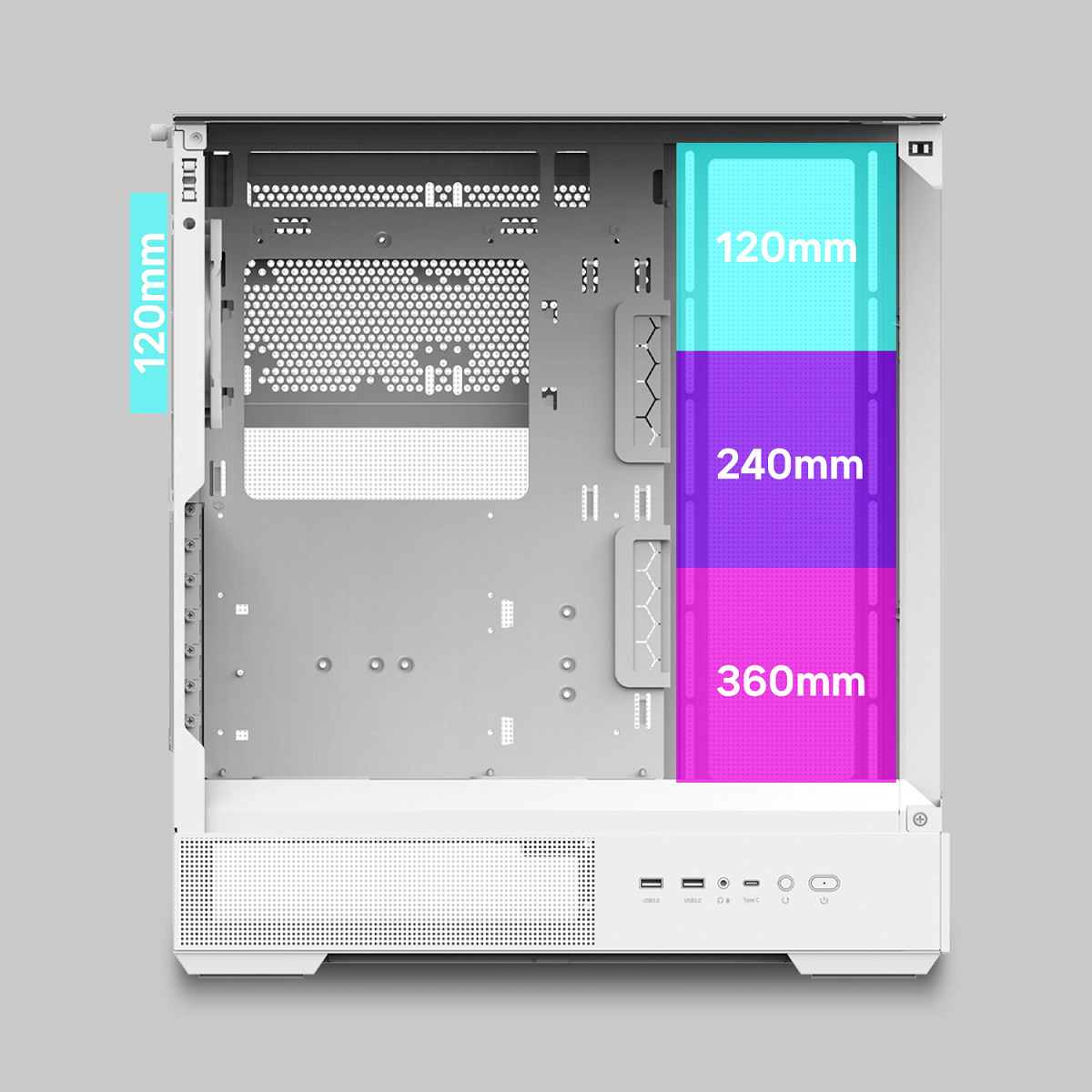

Radiator Configuration

Side : 120mm/ 240mm / 360mm

Rear : 120mm

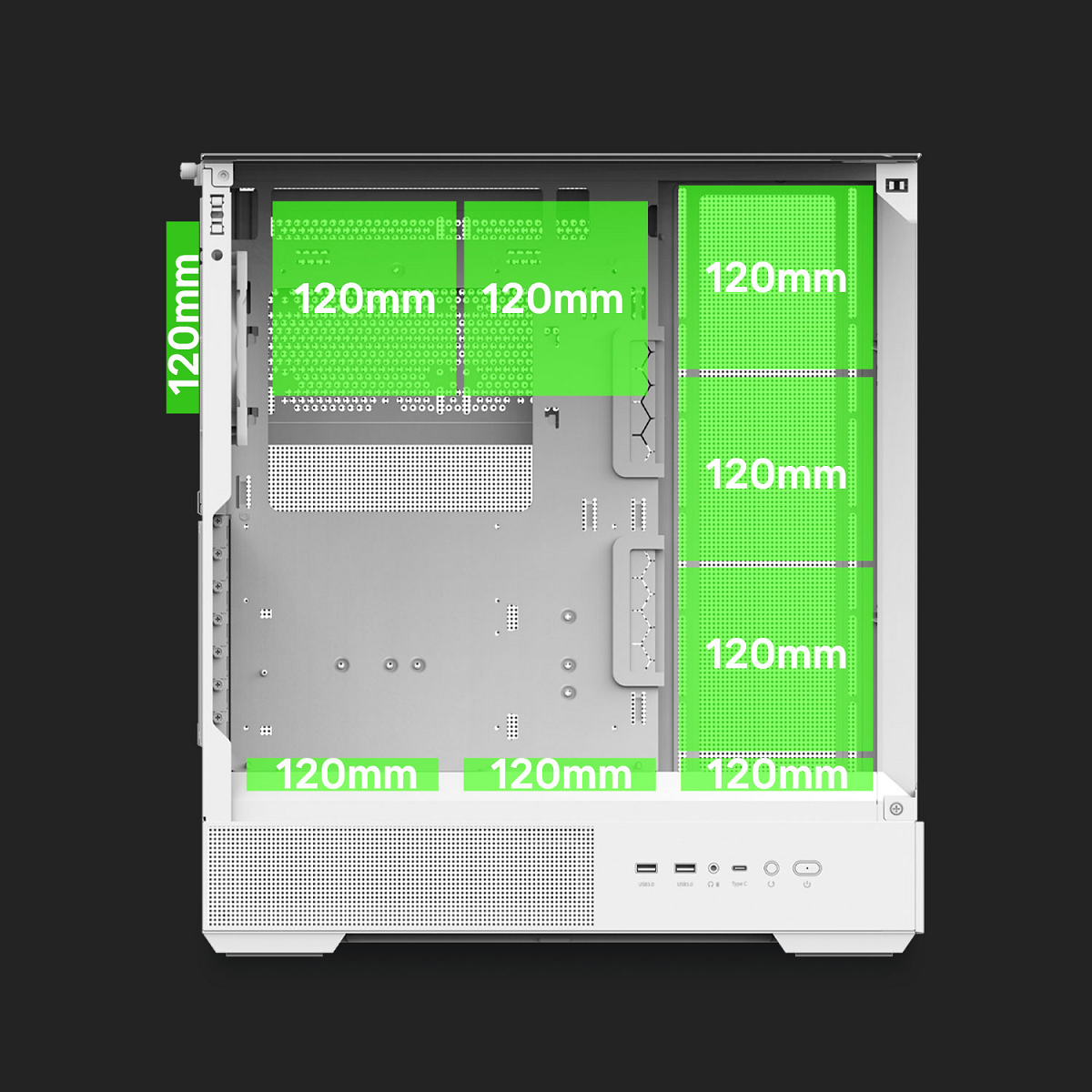

Fan Support

Rear : 1 x 120mm / Bottom : 3 x 120mm

Side 1 : 3 x 120mm / Side 2 : 2 x 120mm

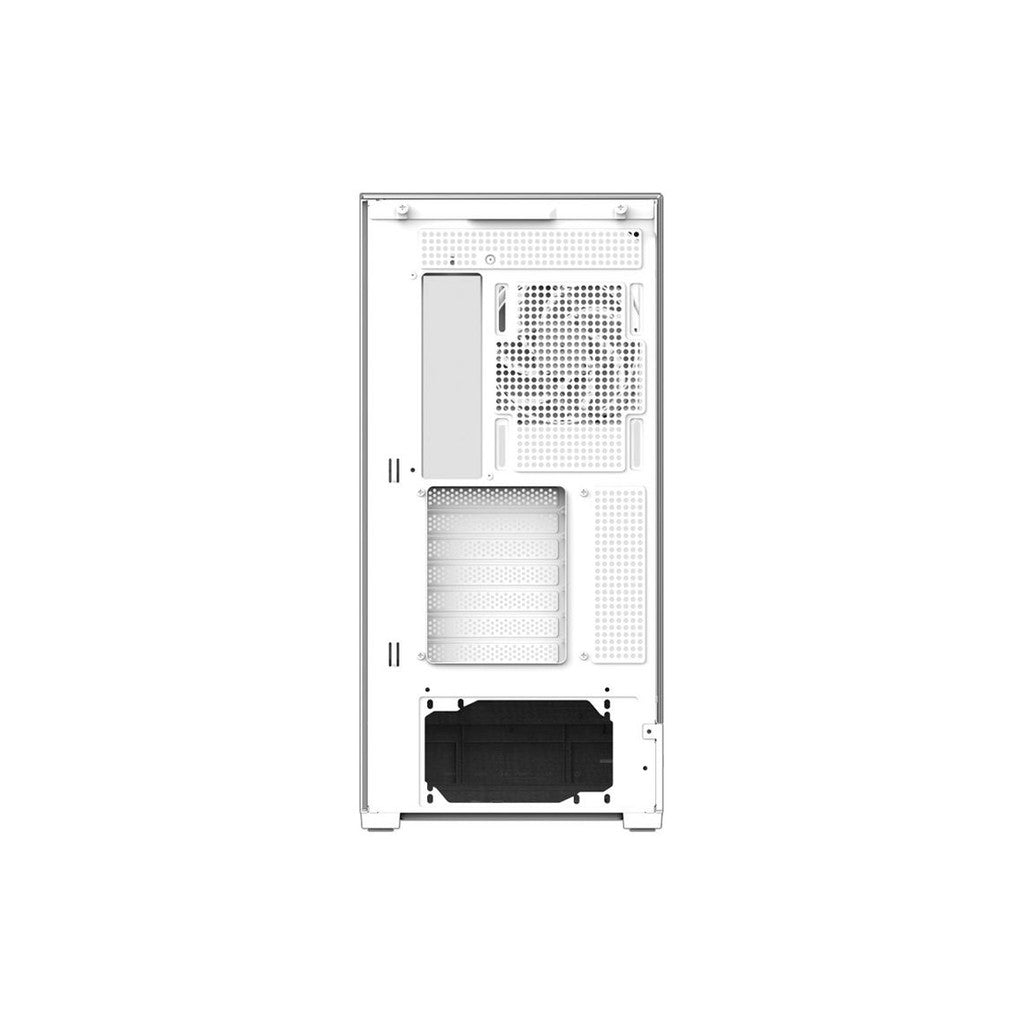

Rear Layout

1. Rear ZM-AF120 ARGB Fan x 1

2. PCI Slot x 7

3. Tool-Free Top cover handle

4. PSU Slot
