Zalman
Zalman Z10 DS ATX Black Mid Tower Case
Zalman Z10 DS ATX Black Mid Tower Case
Couldn't load pickup availability
2 Year Limited Warranty
| Model | Z10 DS |
|---|---|
| Case Form Factor | ATX Mid Tower |
| Dimensions | 474(D) x 220(W) x 488(H)mm |
| Weight | 9.5kg |
| Materials | Plastic, Steel, Tempered Glass |
| Motherboard Support | ATX / mATX / Mini-ITX |
| Maximum VGA Length | 395mm |
| Maximum CPU Cooler Height | 173mm |
| Maximum PSU Length | 200mm |
| PCI Expansion Slots | 7 pcs / 3 pcs (Vertical) |
| Drive Bays | 2 x Combo(3.5”or 2.5”), 2 x 2.5” |
| Fan Support | Front : 3 x 120mm / 3 x 140mm Top : 3 x 120mm / 2 x 140mm Rear : 1 x 120mm Bottom : 2 x 120mm Side : 2 x 120mm |
| Fan(s) Included | Front : 2 x 120mm (NON LEd) Rear : 1 x 120mm (ARGB) |
| Radiator Support | Front : 120mm/ 140mm/ 240mm/ 280mm / 360mm Top : 120mm / 140mm/ 240mm/ 280mm/ 360mm Rear : 120mm |
| I/O Ports | 1xHeadphones, 1xMIC, 2xUSB3.0, 1xUSB Type-C, Reset button, LED Button, Power Button, Display (Mini-HDMI, USB Type-C) |

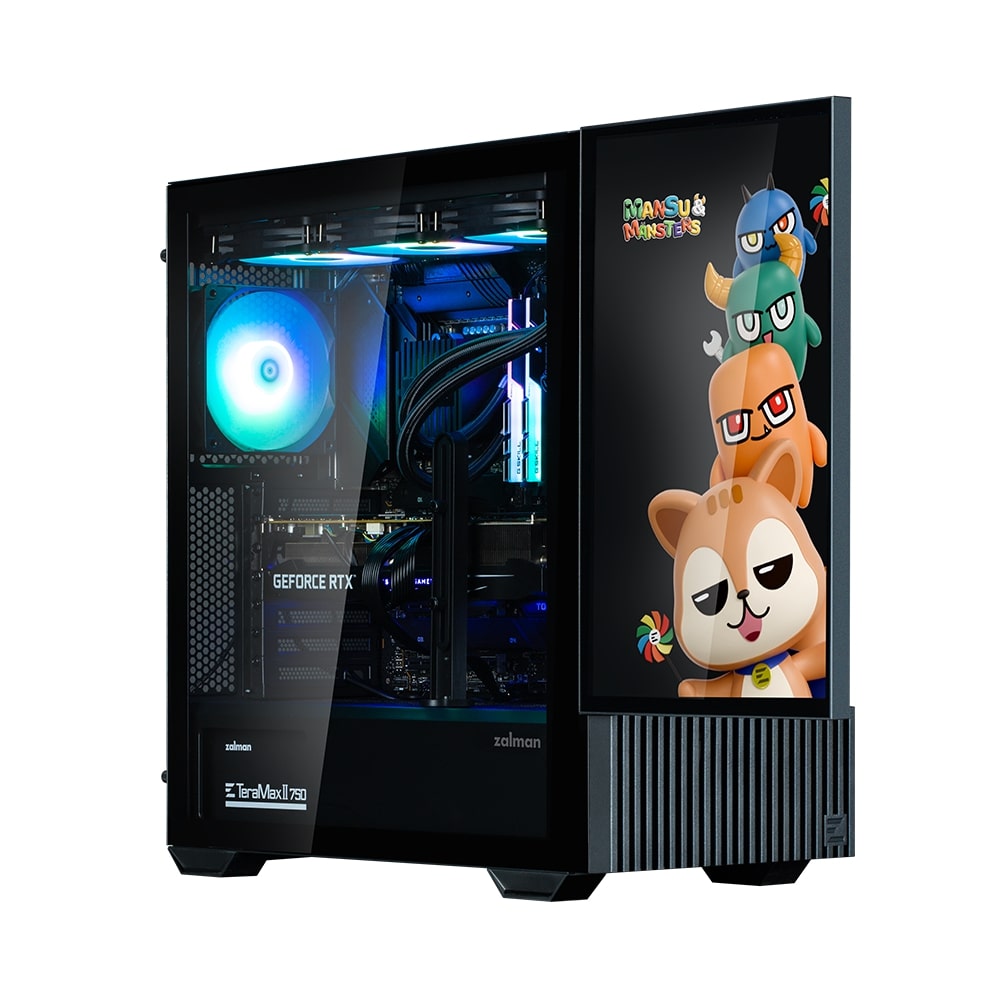

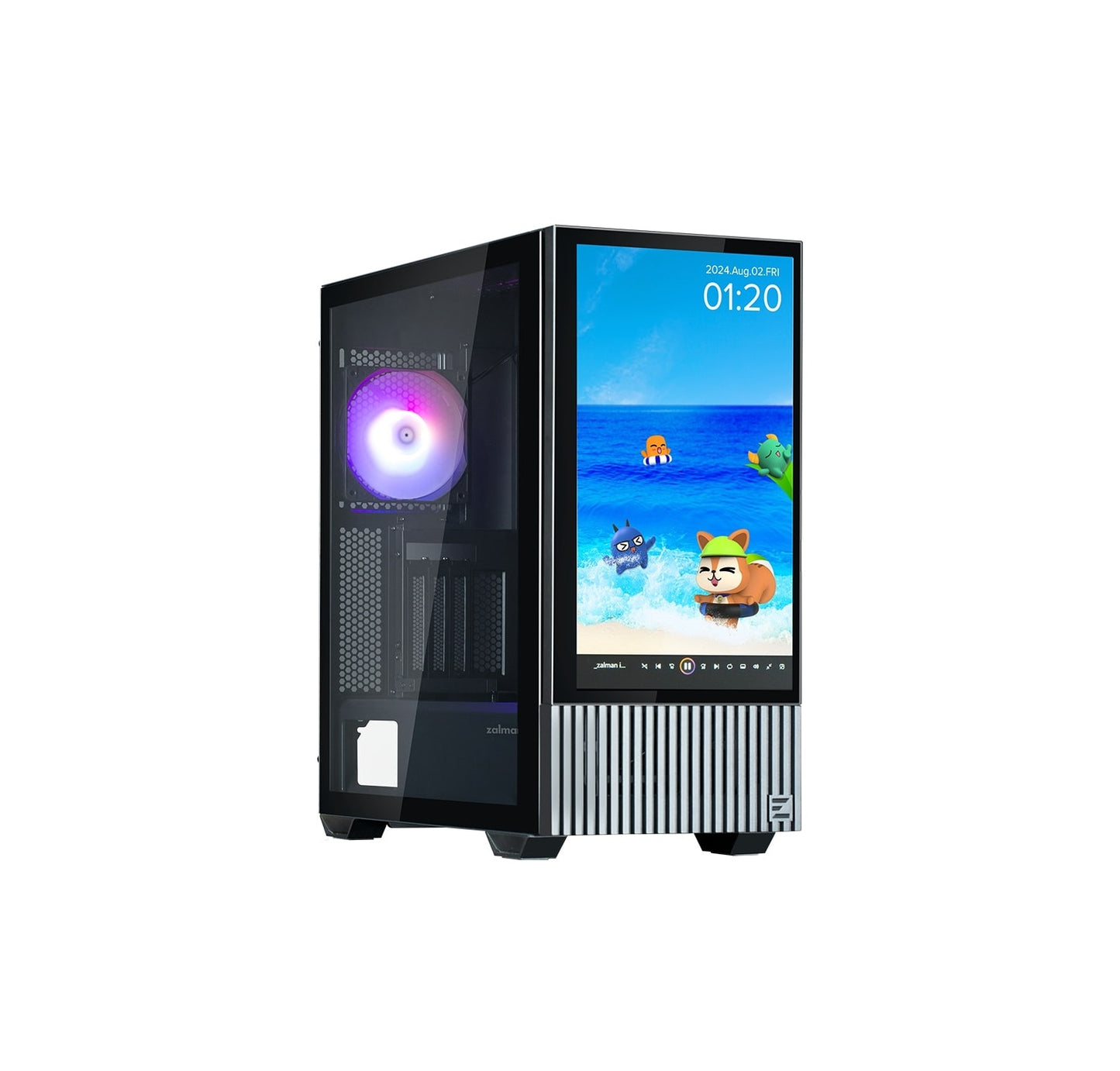

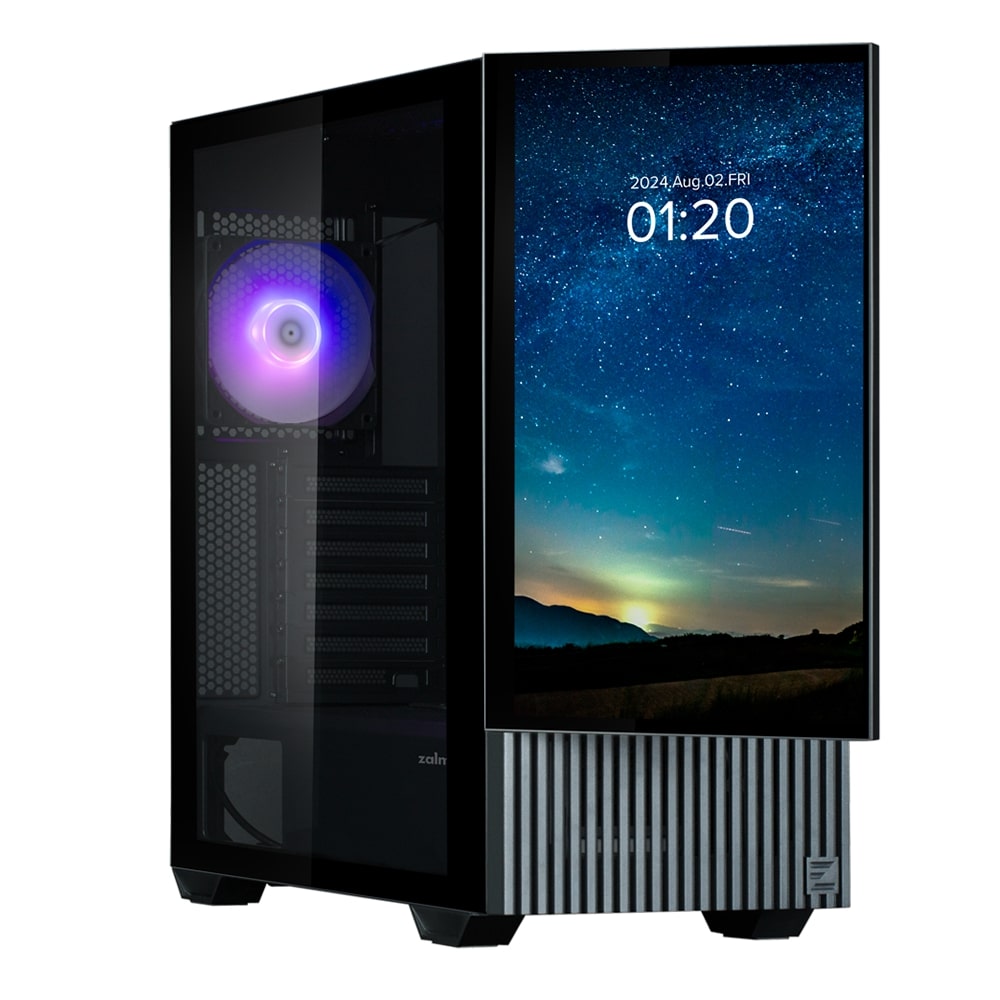

Renowned Z10
+ Big Screen Monitor
Case + Display

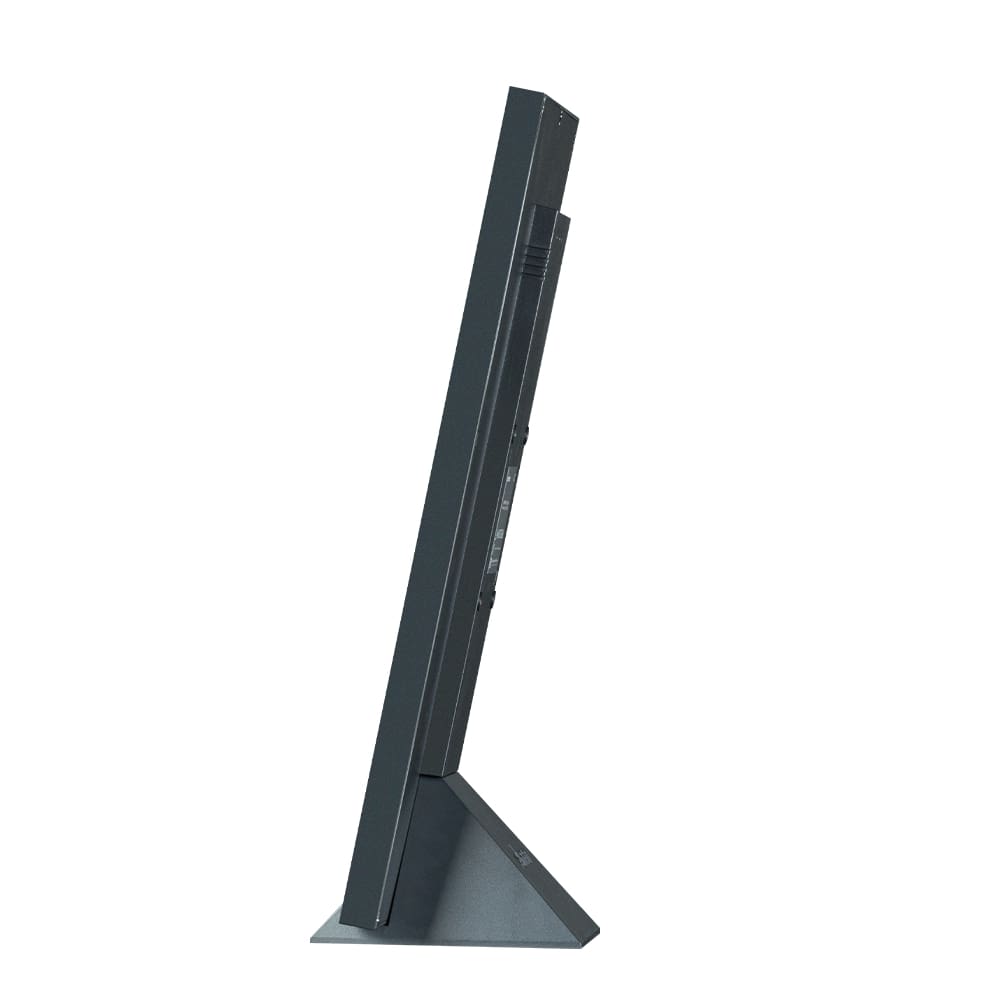

Angle-Adjustable Display Panel

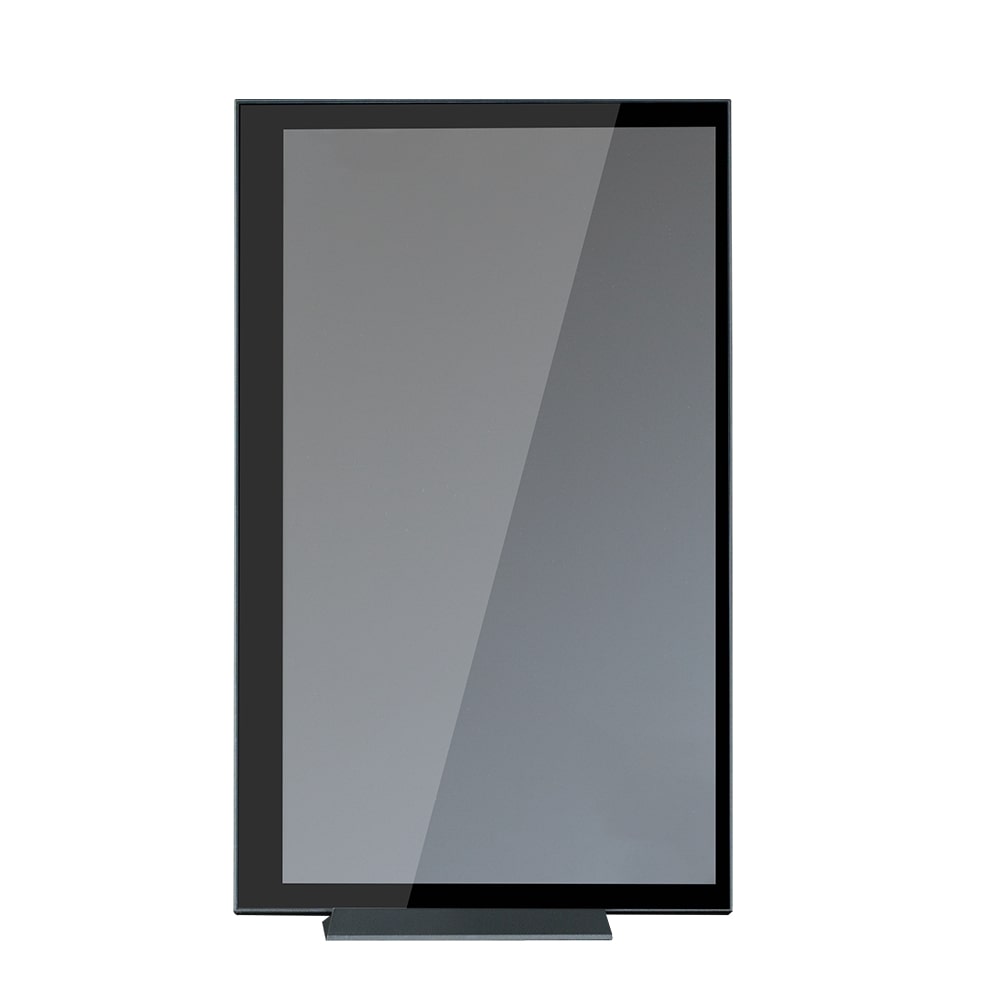

15.6-Inch Full HD Display & Monitor Stand Included
Optimal Air Flow with Clean,
Modern Front Bezel Design
A front bezel is provided
when the display is being used as
a standalone monitor
Premium Tempered Glass
4mm-Thick Tempered Glass with
Hand-Screws for Easy On-and-Off
Functional I/O Port
ⓐ Power
ⓑ Reset
ⓒ HDD / Power LED
ⓓ Headphone Jack
ⓔ Microphone Jack
ⓕ USB 3.0 ⓖ USB 3.1 Type-C
ⓗ LED Button
Magnetic Dust Filter (Top)
Sliding Dust Filter (Bottom)
Magnetic Dust Filter
(Side)
Multiple Holes and Spaces for
Easy Cable Management
※ 22mm Space for Cable Management
Vertical GPU & GPU Support Bracket
Vertical GPU Bracket Included (Left)
GPU Support Included (Right)
Excellent Expandability and Convenience
▶ CPU Cooler Maximum Height : 173mm ▶ VGA Card Maximum Length : 395mm
▶ PSU Maximum Length : 200mm ▶ Drive Bay : HDD x 2 / SSD x 4
Motherboard Support
ATX / mATX / Mini-ITX
GPU Support Bracket Included
with Height Adjustment
Slides up & down to position GPU Precisely
Pre-installed Fan x 3
Front : 2 x 120mm (Non LED)
Rear : 1 x 120mm(ARGB)
Radiator Support
Front : 120mm / 140mm / 240mm / 280mm / 360mm
Top : 120mm / 140mm / 240mm / 280mm / 360mm
Rear : 120mm
Supports up to Max 11 Fans
Fan Support
Front : 3 x 120mm / 3 x 140mm
Top : 3 x 120mm / 2 x 140mm
Rear : 1 x 120mm
Bottom : 2 x 120mm
Side : 2 x 120mm
Pre-Installed
Front : 2 x 120mm
Rear : 1 x 120mm (ARGB)
① Rear Hand Screw
② Rear 120mm fan (Included)
③ Side Handle
④ PCI Slot x 7 & PCI Vertical Slot Bracket
⑤ PSU Slot
⑥ Rear Air Vent
Vertical GPU Bracket
