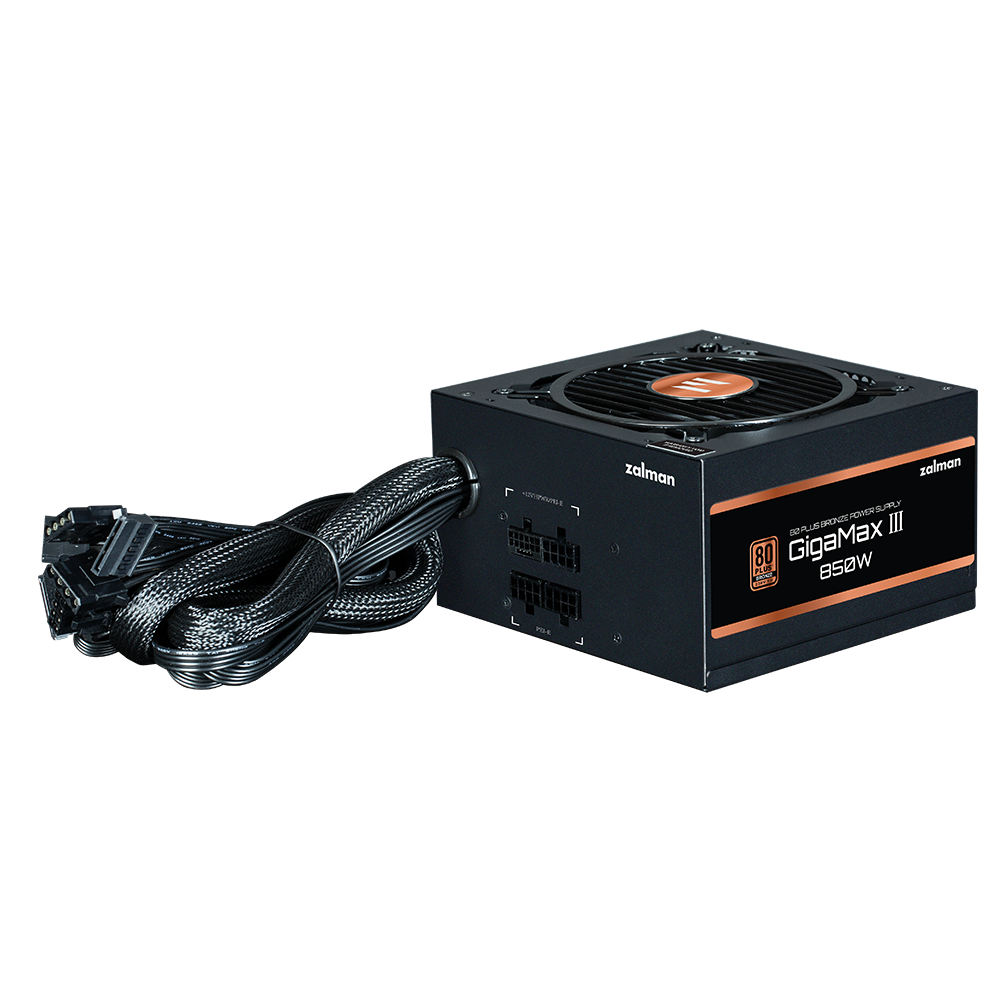

Zalman ZM850-GV3 GigaMax III 850W Gen5 80 Plus Bronze 5Yr Wty ATX 3.0 PSU
Zalman ZM850-GV3 GigaMax III 850W Gen5 80 Plus Bronze 5Yr Wty ATX 3.0 PSU
5 Year Limited Warranty
Cybenetics ETA SILVER
Cybenetics LAMBDA
PCIe 5.0 & 12VHPWR Ready!
ATX 3.0 compatible
100% ready for Intel and AMD
PCIe 5.0 Ready
Supports a dedicated 16pin PCIe 5.0 connector for the latest graphics cards
Semi-modular PSU
Semi modular design minimizes resistance and voltage drop on the cables and lowers impedance to further enhance energy efficiency, connecting only the cables your system needs to allow for smooth airflow to cool the system.
Active PFC With 99% Maximum Power Factor
Active PFC system with maximum power factor of 99% providing consistent and stable output as well as high energy efficiency.
High efficiency ensures safe, stable system operation with low component noise, less heat from parts, and minimal fluctuation of power supply.
Built-In EMI Filter For Noise Reduction
EMI filter is installed to suppress frequencies that cause noise for better system operation.
12V DC-TO-DC Convertor With 100% Availability
The power supply supports a wide range of PC components, minimizing variations in output voltage, maximizing 12V DC rail output to provide a stable system operation
Built-In High Performance
Taiwanese Capacitor That Handles Up To 221˚F
Highly reliable Japanese capacitor used to supply stable voltage even at high temperatures up to 221˚F
Aluminum Solid Capacitor
All capacitors in the power supply are top quality and very reliable in supplying stable power even at high temperature.
FDB (Fluid Dynamic Bearing)
Quiet and Long Lifespan Cooling Technology
FDB(Fluid Dynamic Bearing) has benefits of low noise and long lifespan.
it discharges internal heat quickly and provides sufficient cooling at a low RPM to maximize stable, safe power supply.
FDB, Fluid bearing type is a thin lubricant layer that replaces the bearing for durable, quiet, and long lifespan.
FDB Fan stays quiet even for long usage, unlike other conventional bearing fan,
Model Gigamax III 850W (ZM850-GV3)
Efficiency Max 88% @ 230VAC, Typical Load
Dimensions 140(L) x 150(W) x 86(H)mm
MTBF 100,000 Hours
Weight 1.8kg
Operating Temperature 10~40℃
PFC Active PFC
Regulatory CE, CB, RoHS, EAC, KC, RCM
Type ATX Ver 3.0
Protection OCP/OTP/OPP/OVP/UVP/SCP
Input Voltage 200-240V~
Input Current 7A
Input Frequency 50-60Hz
Fan Size 120mm
Fan Bearing FDB
Cables (Connector) Mainboard Cable x 1
CPU Cable (Connector 2ea) x 1
PCI Express Cable (Connector 2ea) x 1
PCI Express Cable x 1
IDE Cable (Connector 3ea) x1
S-ATA Cable (Connector 3ea) x 2
12VHPWR Cable x 1
IDE (Connector 3ea) + FDD (Connector 1ea) (1)
S-ATA (3)
12VHPWR Cable x 1
80 PLUS Bronze
