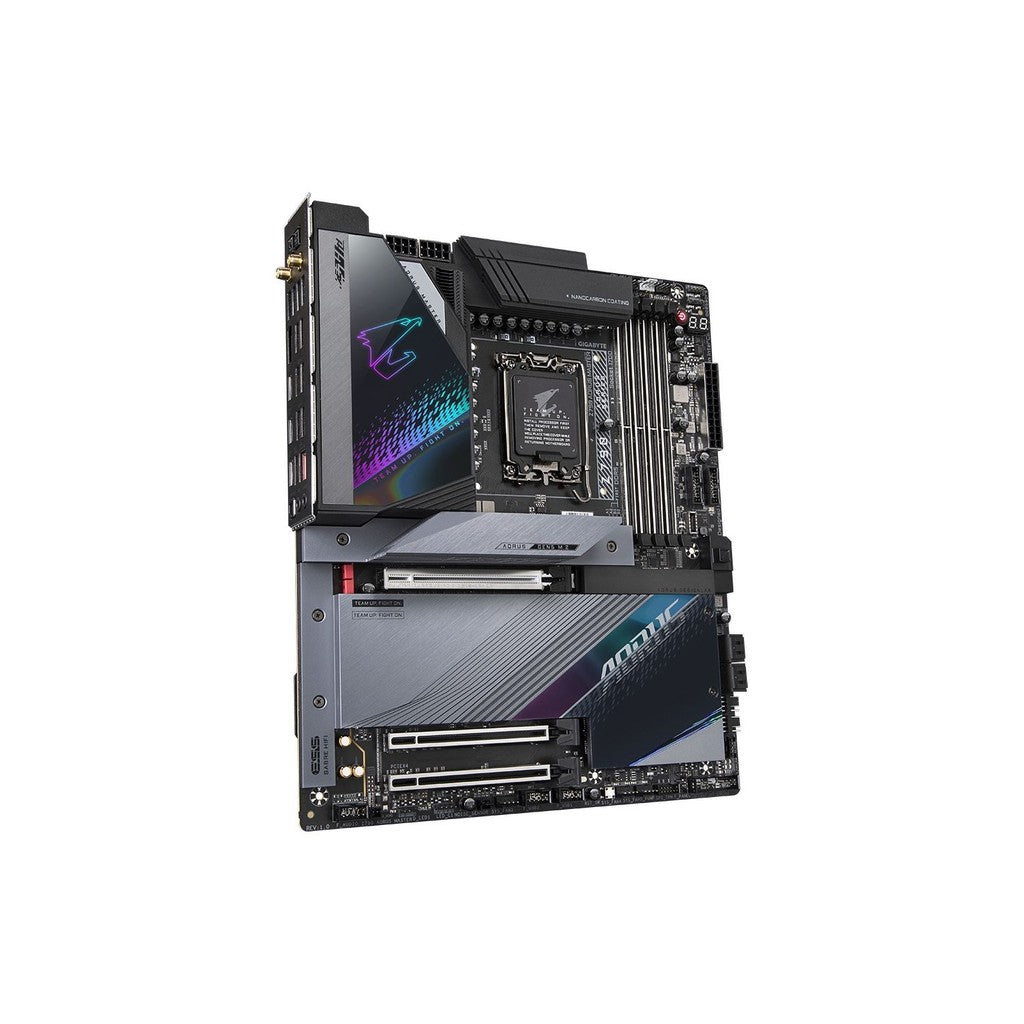

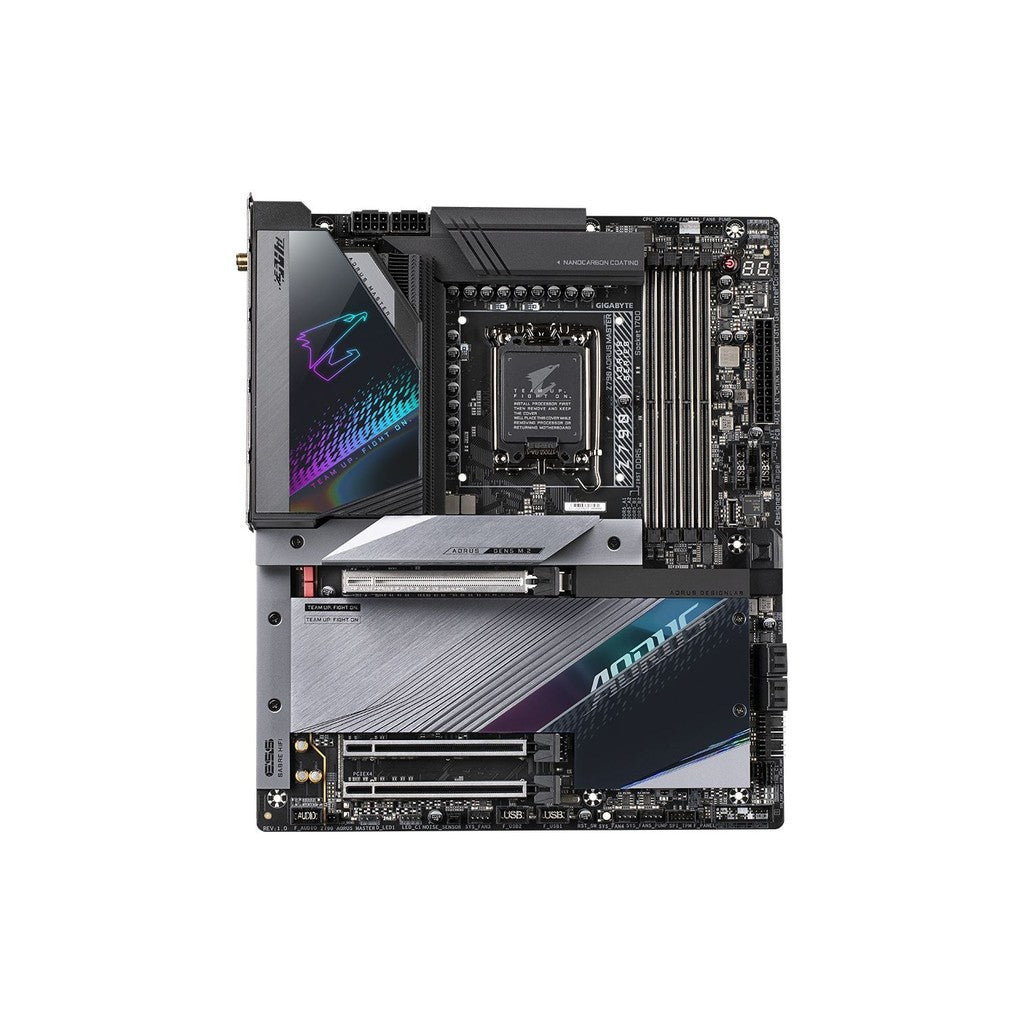

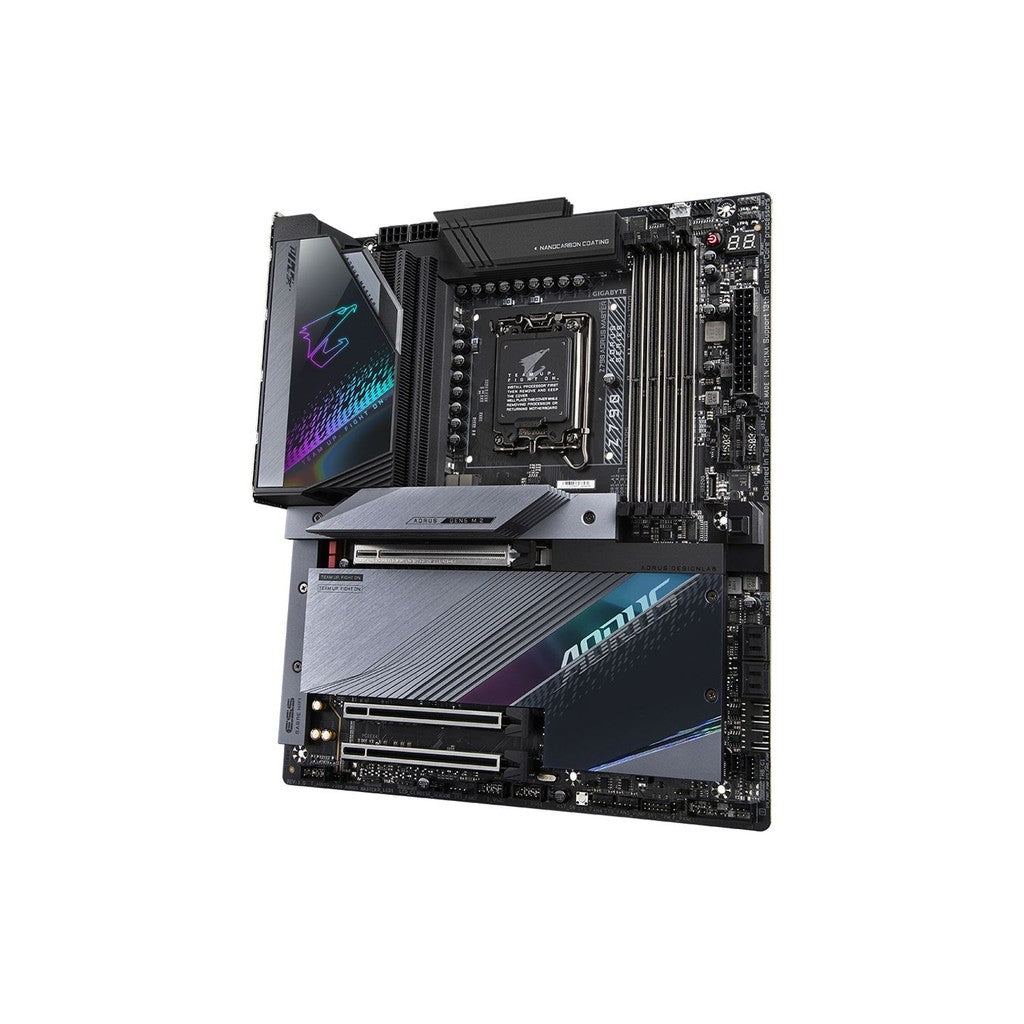

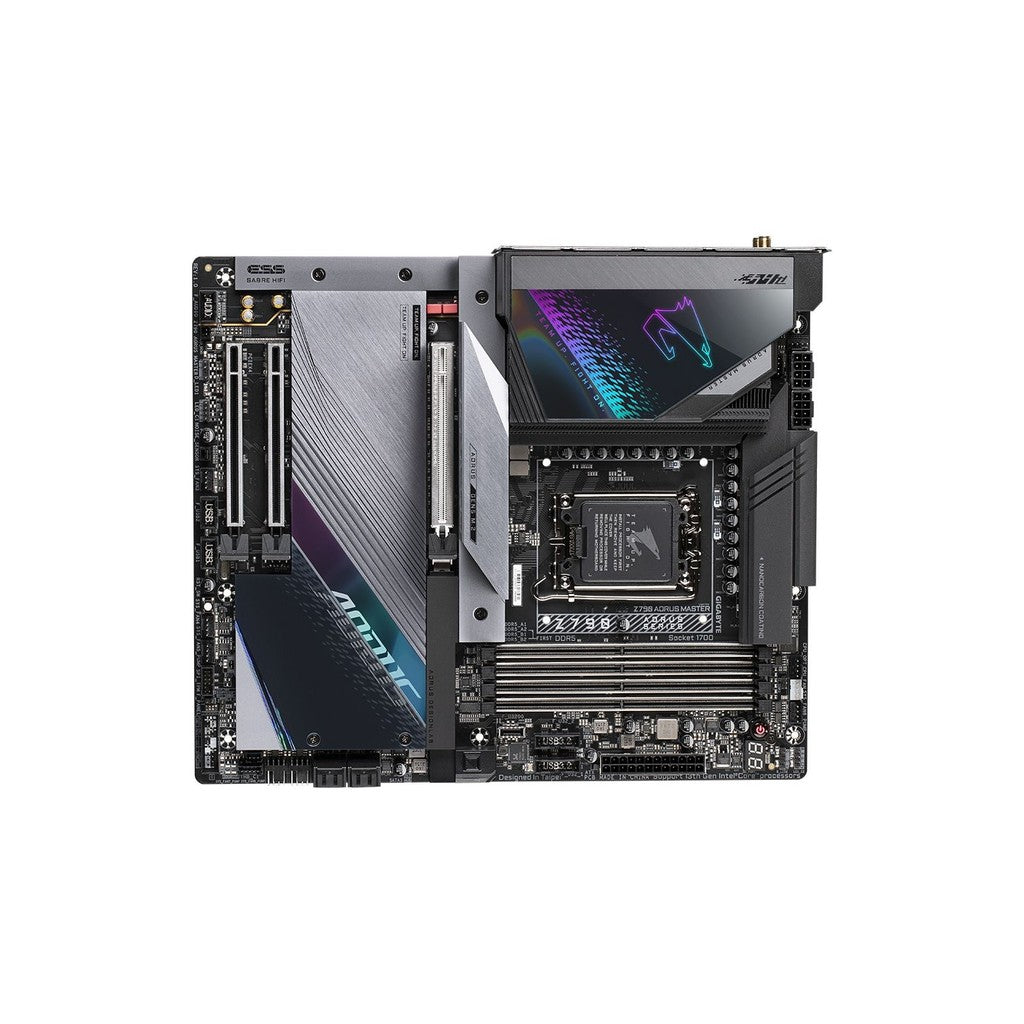

[Refurbished] Gigabyte Z790 AORUS MASTER E-ATX Motherboard

• LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

• L3 cache varies with CPU

• 4 x DDR5 DIMM sockets, up to 256 GB (64 GB single DIMM)

• Speeds from 4000MT/s up to 8000MT/s (O.C.)

• Dual channel architecture

• Supports ECC (in non-ECC mode) & non-ECC Un-buffered DIMMs

• Supports XMP memory modules

• Realtek® ALC1220-VB CODEC

• ESS ES9118 DAC chip

• Support for DTS:X® Ultra

• High Definition Audio (2/4/5.1-channel)

• Support for S/PDIF Out

• Front panel line out supports DSD audio

CPU:

• 1 x PCIe 5.0 x16 slot (PCIEX16, operates at x8 if M2C_CPU is populated)

Chipset:

• 1 x PCIe 4.0 x16 slot (running at x4)

• 1 x PCIe 3.0 x16 slot (running at x1)

CPU:

• 1 x M.2 (M2C_CPU, type 25110/2280): PCIe 5.0 x4/x2

• 1 x M.2 (M2A_CPU, type 22110/2280): PCIe 4.0 x4/x2

Chipset:

• 1 x M.2 (M2Q_SB, type 22110/2280): PCIe 4.0 x4/x2

• 1 x M.2 (M2P_SB, type 2280/2260): PCIe 4.0 x4/x2

• 1 x M.2 (M2M_SB, type 2280/2260): SATA & PCIe 4.0 x4/x2

• 4 x SATA 6Gb/s connectors

• RAID 0/1/5/10 support for NVMe and SATA

Chipset: 3 x USB-C® 3.2 Gen 2x2 (2 back panel, 1 internal header)

Chipset+Hubs: 1 x USB-C® 3.2 Gen 1 (back panel), 7 x USB 3.2 Gen 2 Type-A (red, back panel), 8 x USB 3.2 Gen 1 (4 back panel, 4 internal header), 4 x USB 2.0/1.1 (internal header)

• Power: 1 x 24-pin ATX, 2 x 8-pin ATX 12V

• Cooling: 1 x CPU fan, 1 x water cooling CPU fan, 4 x sys fan, 4 x sys fan/pump

• RGB: 2 x Addressable LED strip headers, 2 x RGB LED strip headers

• Data: 5 x M.2, 4 x SATA, 2 x Thunderbolt™ add-in card connectors

• Headers: Front panel, front audio, 1x USB-C® 3.2 Gen 2x2, 2x USB 3.2 Gen 1, 2x USB 2.0/1.1, TPM, noise detection, 2x temp sensor

• Misc: Power button, reset button, reset jumper, clear CMOS jumper, voltage measurement points

• 1 x Q-Flash Plus button

• 1 x Clear CMOS button

• 2 x SMA antenna connectors (2T2R)

• 1 x DisplayPort

• 1 x USB-C® 3.2 Gen 1 port

• 2 x USB-C® 3.2 Gen 2x2 ports

• 7 x USB 3.2 Gen 2 Type-A ports (red)

• 4 x USB 3.2 Gen 1 ports

• 1 x RJ-45 port

• 1 x optical S/PDIF Out connector

• 2 x audio jacks

• Voltage, temperature, fan speed, water cooling flow rate detection

• Fan fail warning, fan speed control, noise detection

• Norton® Internet Security (OEM), LAN bandwidth management software (discontinued)

• Windows 11 64-bit, Windows 10 64-bit
